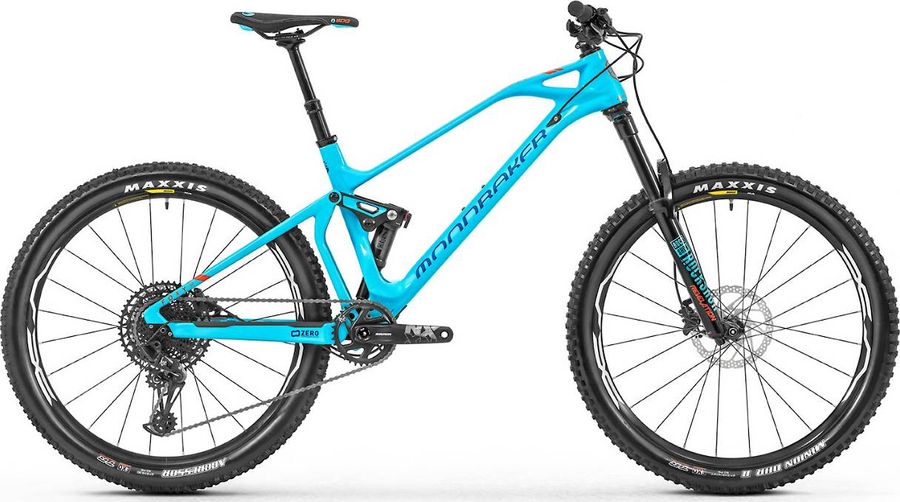

Mondraker Foxy Carbon R 27.5 2019

MTB Enduro
Groupset
SRAM NX Eagle
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
13,6 kg
Front travel
150mm
Rear travel
150mm
Mondraker Foxy Carbon R 27.5 2019

About the Mondraker Foxy Carbon R 27.5 2019

The Mondraker Foxy Carbon R 27.5 2019 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM NX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 13,6 kg.

Features

The Mondraker Foxy Carbon R 27.5 2019 has 5 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Onoff Diamond, lock-on, 130mm
Components
Steam
Onoff Stoic FG 30mm, 6061 forged alloy, 31.8mm clamp
Saddle
SDG Fly MTN, PU foam, steel rail, Cordura sides
Headset
Onoff Saturn, ACB sealed bearings
Seatpost
Onoff Pija Dropper, internal,100mm drop (S), 125mm drop (M), 150mm drop (L-XL)
Handlebar
Mondraker double butted 6061 alloy, 25mm rise, 780mm width, 9º backsweep, 5º upsweep, 31.8mm clamp
Brake lever
Shimano MT500, servo wave, alloy lever
Brakes
Shimano BR-MT500 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT500
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin (stainless steel)
Piston
2
Piston material
Resin
Recommended disc brake rotor
SM-RT54*
SM-RT56*
Drivetrain
Crankset
SRAM NX Eagle, Boost, DUB axle, 170mm (S/M), 175mm (L/XL)
Shifter
SRAM Trigger NX Eagle, 12-speed, X-Actuation
Bottom bracket
SRAM DUB BSA, sealed bearings, 73mm
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Rear derailleur
SRAM NX Eagle 12s 339 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-NX-1-B1
Name
NX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Weight
339
Cassette
SRAM PG-1230 Eagle 12s 615 g
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1230-A1
Name
PG-1230 Eagle Cassette
Speed
12s
Technology cassete
PG
Weight
615
Frameset
Frame
Carbon Fiber
Front suspension
RockShox Revelation RC DebonAir
Color
Diffusion Black, Gloss Black
Damper type
Motion Control
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-RVL-RC-A2
Name
Revelation RC
Spring
DebonAir
Travel (mm)
120mm, 130mm, 140mm, 150mm, 160mm
Upper tube type
35mm tapered wall aluminum
Wheel size
27.5", 29"
Rear suspension
RockShox Deluxe RL
Body eyelet
Bearing, Standard
Compression tune
L, LC, M
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Lockout force
430
Model
RS-DLX-RL-B1
Name
Deluxe RL
Rebound tune
L, M
Shaft eyelet
Bearing, Standard, Trunnion
Wheels
Rims
Mavic XA 27.5, 30mm internal width, asymmetric, hookless, tubeless ready, 24 hole
Tires
Front: Maxxis Minion DHR II 27.5" x 2.4" WT, tubeless ready, Dual compound, Exo protection, 60TPI, folding bead, Rear: Maxxis Aggressor 27.5" x 2.3", tubeless ready, dual compound, Exo protection, 60TPI, folding bead
Spokes
Mavic steel, straight-pull
Rear hub
Front: Mavic 15mm x 110mm, sealed bearings, IS 6-bolt, Rear: Mavic 12mm x 148mm, sealed bearings, ID360, IS 6-bolt
Front hub
Front: Mavic 15mm x 110mm, sealed bearings, IS 6-bolt, Rear: Mavic 12mm x 148mm, sealed bearings, ID360, IS 6-bolt

Geometry

Size SM MD LG XL
a
Seat tube length
380,0
420,0
470,0
510,0
b
Seat tube angle
75,0º
75,0º
75,0º
75,0º
c
Top tube length
613,0
635,0
660,0
683,0
d
Head tube length
110,0
120,0
140,0
150,0
e
Head tube angle
66,0º
66,0º
66,0º
66,0º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1181,0
1195,0
1233,0
1257,0
i
Chainstay length
422,0
422,0
422,0
422,0
j
Bottom bracket drop
9,0
9,0
9,0
9,0
k
Stack height
582,0
591,0
609,0
621,0
l
Reach
457,0
477,0
497,0
517,0
m
Standover height
-
-
-
-
x
Bottom bracket height
346,0
346,0
346,0
346,0
y
Front center
-
-
-
-
