Groupset
SRAM X01 Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
13,3 kg
Front travel
170mm
Rear travel
150mm

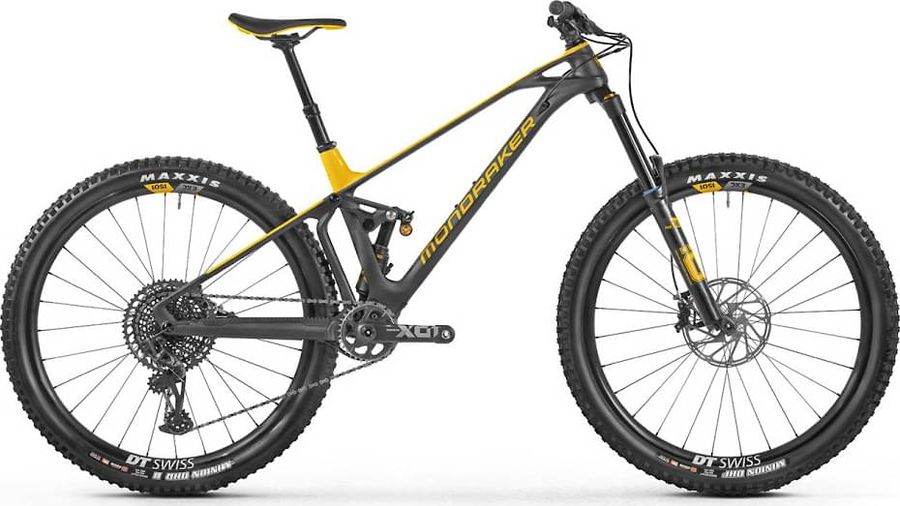

About the Mondraker Foxy Carbon XR 2021
The Mondraker Foxy Carbon XR 2021 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 13,3 kg.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tubeless ready
More info
Tubeless ready
Specifications
|
Grip
|
ONOFF Desert, 135mm length, single lock-on
|
|---|
|
Steam
|
ONOFF Krypton FG, 6061 forged alloy, 30mm length, 35mm bar clamp
|
|---|---|
|
Saddle
|
SDG Bel-Air 3.0, EVA foam, alloy rails
|
|
Headset
|
ONOFF Titan, ACB sealed bearings
|
|
Seatpost
|
ONOFF Pija dropper, Drop: 100mm (SM), 125mm (MD), 150mm (LG), 170mm (XL)
|
|
Handlebar
|
ONOFF Kripton Carbon 0.5, 12.5mm rise, 780mm width, 9° backsweep, 5° upsweep, 35mm clamp diameter
|
|
Brake lever
|
SRAM G2 RSC, SwingLink, lever pivot bearings, tool-free reach and contact point adjust
|
|
Brakes
|
SRAM G2 RSC
Hydraulic
248 g
|
|
|
|
|
Crankset
|
SRAM X01 Eagle Carbon DUB, 170mm length (SM/MD), 175mm length (LG/XL)
|
|---|---|
|
Shifter
|
SRAM X01 Eagle, 12-speed, Trigger, X-Actuation
|
|
Bottom bracket
|
SRAM DUB, sealed bearings, 73mm BSA threaded
|
|
Chain
|
SRAM GX Eagle
244 g
|
|
|
|
|
Cassette
|
SRAM XG-1295 X01 Eagle
|
|
Rear derailleur
|
SRAM X01 Eagle
12s
|
|
|
|
|
Frame
|
Carbon Fiber
|
|---|---|
|
Front suspension
|
Ohlins RXF 36
|
|
Rear suspension
|
Ohlins TTX
|
|
Rims
|
DT Swiss EXC1501 Carbon Spline, 30mm internal width, hookless, tubeless ready, 28 hole
|
|---|---|
|
Tires
|
Front: Maxxis Minion DHF, 3C MaxxTerra, EXO+, TR, 120 TPI, folding bead, 29" x 2.5" WT, Rear: Maxxis Minion DHR II, 3C MaxxTerra, EXO+, TR, 120 TPI, folding bead, 29" x 2.4" WT
|
|
Spokes
|
DT Swiss Competition, straightpull
|
|
Rear hub
|
DT Swiss 240, 6-bolt rotor mounts, 110x15mm Boost front, 148x12mm Boost rear with 36 tooth Ratchet EXP freehub and XD driver
|
|
Front hub
|
DT Swiss 240, 6-bolt rotor mounts, 110x15mm Boost front, 148x12mm Boost rear with 36 tooth Ratchet EXP freehub and XD driver
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
380,0
|
420,0
|
470,0
|
510,0
|
|
b
Seat tube angle
|
74,5º
|
74,5º
|
74,5º
|
74,5º
|
|
c
Top tube length
|
608,0
|
628,0
|
653,0
|
673,0
|
|
d
Head tube length
|
100,0
|
110,0
|
130,0
|
130,0
|
|
e
Head tube angle
|
65,5º
|
65,5º
|
65,5º
|
65,5º
|
|
f
Rake
|
-
|
-
|
-
|
-
|
|
g
Trail
|
-
|
-
|
-
|
-
|
|
h
Wheelbase
|
1197,0
|
1217,0
|
1245,0
|
1265,0
|
|
i
Chainstay length
|
432,0
|
432,0
|
432,0
|
432,0
|
|
j
Bottom bracket drop
|
29,0
|
29,0
|
29,0
|
29,0
|
|
k
Stack height
|
619,0
|
619,0
|
637,0
|
637,0
|
|
l
Reach
|
437,0
|
457,0
|
477,0
|
497,0
|
|
m
Standover height
|
-
|
-
|
-
|
-
|
|
x
Bottom bracket height
|
345,0
|
345,0
|
345,0
|
345,0
|
|
y
Front center
|
-
|
-
|
-
|
-
|
