Mondraker Foxy Carbon XR 27.5 2019

MTB Enduro
Groupset
SRAM GX Eagle
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
13,75 kg
Front travel
160mm
Rear travel
150mm

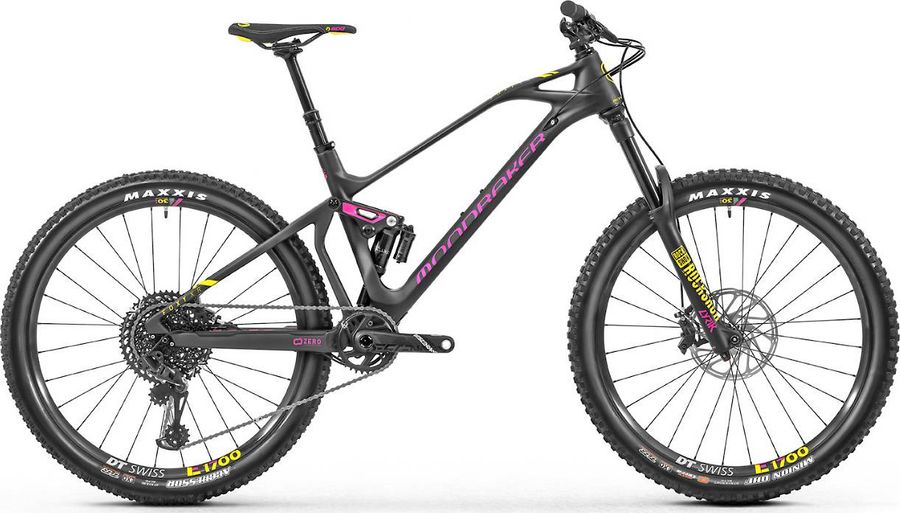

Mondraker Foxy Carbon XR 27.5 2019

About the Mondraker Foxy Carbon XR 27.5 2019

The Mondraker Foxy Carbon XR 27.5 2019 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 13,75 kg.

Features

The Mondraker Foxy Carbon XR 27.5 2019 has 6 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Onoff Diamond, lock-on, 130mm
Components
Steam
Onoff Stoic FG 30mm, 6061 forged alloy, 35mm clamp
Saddle
SDG Fly MTN, PU foam, Cr-Mo rails, Cordura sides
Headset
Onoff Titan, ACB sealed bearings
Seatpost
Onoff Pija Dropper, internal, 100mm drop (S), 125mm drop (M), 150mm drop (L-XL)
Handlebar
Onoff Stoic carbon, 12mm rise, 780mm width, 9º backsweep, 5º upsweep, 35mm clamp
Brake lever
SRAM Code R, tool-free reach adjust
Brakes
SRAM Code R Hydraulic
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (203mm DIR to 220mm Rotor - 17mm bracket) 17P, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Dark Grey Paint, Diffusion Black
Model
DB-CODE-R-B1
Name
Code R
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Drivetrain
Crankset
Truvativ Descendant Eagle carbon, 12-speed, Boost, DUB axle, 170mm (S/M), 175mm (L/XL)
Shifter
SRAM Trigger GX Eagle, 12-speed, X-Actuation
Bottom bracket
SRAM DUB BSA, sealed bearings, 73mm
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Carbon Fiber
Rear suspension
RockShox Super Deluxe RC3
Body eyelet
Bearing, No Bushing, Off-Center, Standard
Compression tune
L, L1, L3, M
Eye to eye stroke
165x42.5(TR), 165x45(TR), 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75
Lockout force
320, 380
Model
RS-SDLX-RC3-B1
Name
Super Deluxe RC3
Rebound tune
L, M
Shaft eyelet
Bearing, No Bushing, Standard, Trunnion
Front suspension
RockShox Lyrik RC2 DebonAir
Color
BoXXer Red, Diffusion Black, Gloss Black
Damper type
Charger 2 RC2
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-LYRK-RC2-C1
Name
Lyrik RC2
Spring
DebonAir
Travel (mm)
150mm, 160mm, 170mm, 180mm
Upper tube type
35mm tapered wall aluminum
Wheel size
27.5", 29"
Wheels
Rims
DT Swiss E1700 Spline 27.5, 30mm internal width, tubeless ready, 28 hole
Tires
Front: Maxxis Minion DHF 27.5" x 2.5" WT, tubeless ready, 3C MAXX TERRA compound, Exo protection, 60TPI, folding bead, Rear: Maxxis Aggressor 27.5" x 2.3", tubeless ready, dual compound, Exo protection, 60TPI, folding bead
Spokes
DT Swiss Competition, straight
Rear hub
Front: DT Swiss 350, 15mm x 110mm, IS 6-bolt, Rear: DT Swiss 350, 12mm x 148mm, IS 6-bolt, XD freehub
Front hub
Front: DT Swiss 350, 15mm x 110mm, IS 6-bolt, Rear: DT Swiss 350, 12mm x 148mm, IS 6-bolt, XD freehub

Geometry

Size SM MD LG XL
a
Seat tube length
380,0
420,0
470,0
510,0
b
Seat tube angle
70,0º
70,0º
70,0º
70,0º
c
Top tube length
615,0
637,0
662,0
685,0
d
Head tube length
110,0
120,0
140,0
150,0
e
Head tube angle
65,5º
65,5º
65,5º
65,5º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1188,0
1209,0
1238,0
1262,0
i
Chainstay length
422,0
422,0
422,0
422,0
j
Bottom bracket drop
5,0
5,0
5,0
5,0
k
Stack height
583,0
592,0
611,0
620,0
l
Reach
450,0
470,0
490,0
510,0
m
Standover height
-
-
-
-
x
Bottom bracket height
350,0
350,0
350,0
350,0
y
Front center
-
-
-
-
