Mondraker Foxy Carbon XR 29 2019

MTB Enduro
Groupset
SRAM X01 Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
13,42 kg
Front travel
160mm
Rear travel
150mm

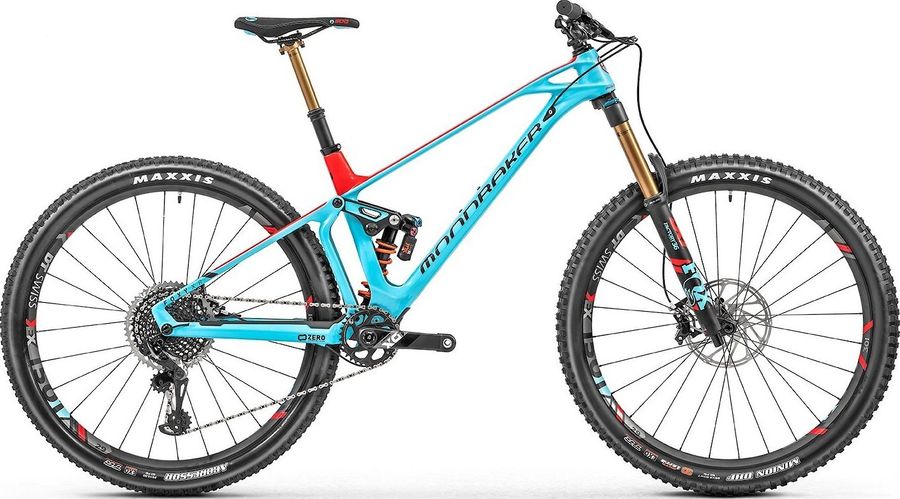

Mondraker Foxy Carbon XR 29 2019

About the Mondraker Foxy Carbon XR 29 2019

The Mondraker Foxy Carbon XR 29 2019 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, hydraulic disc brakes, and tubeless ready. The bike weighs approximately 13,42 kg.

Features

The Mondraker Foxy Carbon XR 29 2019 has 3 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Onoff Diamond, lock-on, 130mm width
Components
Steam
Onoff Stoic FG, 6061 forged alloy, 30mm length, 35mm clamp
Saddle
SDG Fly MTN, PU foam, chromoly rails, Cordura sides
Headset
Onoff Titan, ACB sealed bearings
Seatpost
FOX Transfer Factory, Kashima, 100mm drop (S), 125mm drop (M-XL)
Handlebar
Onoff Stoic Carbon, 780mm width, 25mm rise, 9° backsweep, 5° upsweep, 35mm diameter
Brake lever
SRAM Code RSC, SwingLink and lever pivot berings, tools free reach and contact point adjust
Brakes
SRAM Code RSC Hydraulic
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black Anodized, Black Anodized w/Rainbow Hardware
Model
DB-CODE-RSC-A1
Name
Code RSC
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Drivetrain
Chain
SRAM Eagle, 12-speed
Crankset
SRAM X01 Carbon Eagle, Boost, DUB axle, 170mm length (S-M), 175mm length (L-XL)
Shifter
SRAM X01 Eagle, 12-speed
Bottom bracket
SRAM DUB BSA, sealed bearings, 73mm
Cassette
SRAM XG-1295 Eagle 12s 350 g
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1295-B1
Name
XG-1295 Eagle Cassette
Speed
12s
Technology cassete
XG
Weight
350
Rear derailleur
SRAM X01 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar, Red
Max tooth
52
Model
RD-X0-1-B2
Name
X01 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
Carbon Fiber
Rear suspension
Fox DHX2 Factory
Front suspension
Fox 36 Float Factory Kashima
Wheels
Rims
DT Swiss EX1501 Spline One 29, 30mm internal width, tubeless ready, 28 hole
Tires
Front: Maxxis Minion DHF, 2.5" WT / tubeless ready / 3C MaxxTerra / EXO / 60TPI / folding bead, Rear: Maxxis Minion DHR II, 2.4" WT / tubeless ready / 3C MaxxTerra / EXO / 60TPI / folding bead
Spokes
DT Swiss
Rear hub
DT Swiss 240, Boost front and rear, IS 6-bolt, XD freehub, 36 tooth ratchet system
Front hub
DT Swiss 240, Boost front and rear, IS 6-bolt, XD freehub, 36 tooth ratchet system

Geometry

Size SM MD LG XL
a
Seat tube length
380,0
420,0
470,0
510,0
b
Seat tube angle
75,5º
75,5º
75,5º
75,5º
c
Top tube length
603,0
626,0
651,0
675,0
d
Head tube length
90,0
100,0
115,0
130,0
e
Head tube angle
66,0º
66,0º
66,0º
66,0º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1184,0
1207,0
1233,0
1259,0
i
Chainstay length
432,0
432,0
432,0
432,0
j
Bottom bracket drop
24,0
24,0
24,0
24,0
k
Stack height
602,0
611,0
625,0
639,0
l
Reach
447,0
467,0
487,0
507,0
m
Standover height
-
-
-
-
x
Bottom bracket height
350,0
350,0
350,0
350,0
y
Front center
-
-
-
-
