BikeWise

Mondraker Foxy R 2020

MTB Enduro
Groupset
SRAM GX Eagle
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Weight
14,9 kg
Front travel
160mm
Rear travel
150mm

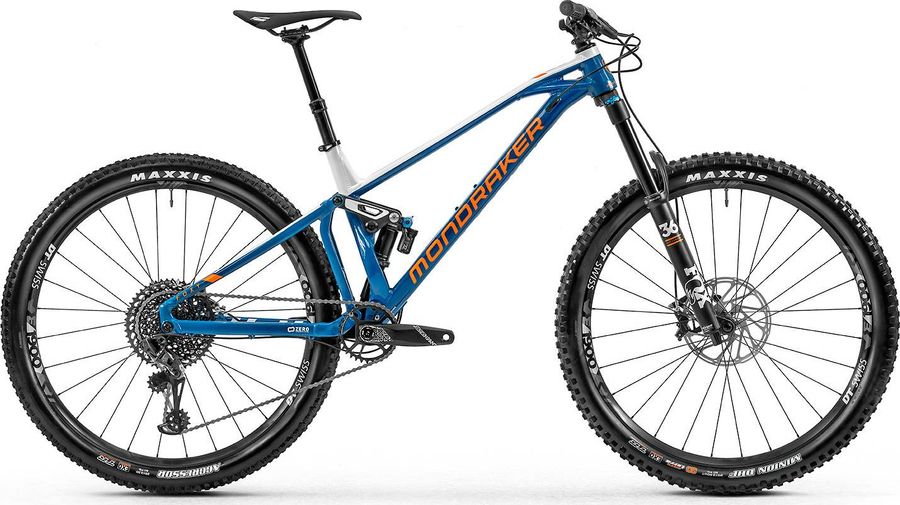

Mondraker Foxy R 2020

About the Mondraker Foxy R 2020

The Mondraker Foxy R 2020 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include hydraulic disc brakes e tubeless ready. The bike weighs approximately 14,9 kg.

Features

The Mondraker Foxy R 2020 has 2 features listed below.
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Onoff Desert, 1lock-on, 135mm
Components
Steam
Onoff Sulfur FG 30mm reach 0°, 6061 forged alloy, 31.8 mm clamp
Saddle
SDG Fly MTN, PU foam, Cr-Mo rails, Cordura sides
Headset
Onoff Titan, ACB sealed bearings, top 41.8x30.5x8x45°x45°, bottom 51.9x40x8x45°x45°
Seatpost
Onoff Pija, 337x100mm on S, 387x125mm on M, 425x150mm on L/XL
Handlebar
OnOff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 780mm, 9° backsweep, 5° upsweep, 31.8mm clamp
Brake lever
SRAM G2
Brakes
SRAM G2 R Hydraulic 393 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-G2-R-A1
Name
G2 R
Orientation
Front, Rear
Pad type disc
Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
393
Drivetrain
Crankset
Truvativ Descendant 6K, 170mm on S/M and 175mm on L/XL
Shifter
SRAM GX Eagle 12-speed
Bottom bracket
SRAM DUB BSA
Front derailleur
None (1x only)
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Aluminum
Rear suspension
Fox Float DPX2 Performance EVOL
Front suspension
Fox 36 Float Performance
Wheels
Rims
DT Swiss E1900 Spline 29, 30mm internal width, tubeless ready, 28 hole
Tires
Maxxis Minion DHR II 2.4WT, Tubeless ready, 3C Maxx Terra, EXO, 60TPI, folding bead front and Maxxis Aggressor 2.3", Tubeless ready, 3C Maxx Terra, EXO, 60TPI, folding bead rear
Spokes
DT Swiss Champion straight pull
Rear hub
DT Swiss 370 Boost
Front hub
DT Swiss 370 Boost

Geometry

Size SM MD LG XL
a
Seat tube length
380,0
420,0
470,0
510,0
b
Seat tube angle
76,0º
76,0º
76,0º
76,0º
c
Top tube length
603,0
626,0
651,0
675,0
d
Head tube length
90,0
100,0
115,0
130,0
e
Head tube angle
66,0º
66,0º
66,0º
66,0º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1190,0
1219,0
1245,0
1271,0
i
Chainstay length
432,0
432,0
432,0
432,0
j
Bottom bracket drop
19,0
19,0
19,0
19,0
k
Stack height
603,0
612,0
627,0
640,0
l
Reach
447,0
472,0
492,0
512,0
m
Standover height
-
-
-
-
x
Bottom bracket height
355,0
355,0
355,0
355,0
y
Front center
-
-
-
-
