Mondraker Foxy R 2021

MTB Enduro

Groupset

Shimano XT

Frame material

Alloy

Wheel size

29"

Suspension type

Full suspension

Weight

14,8 kg

Front travel

160mm

Rear travel

150mm

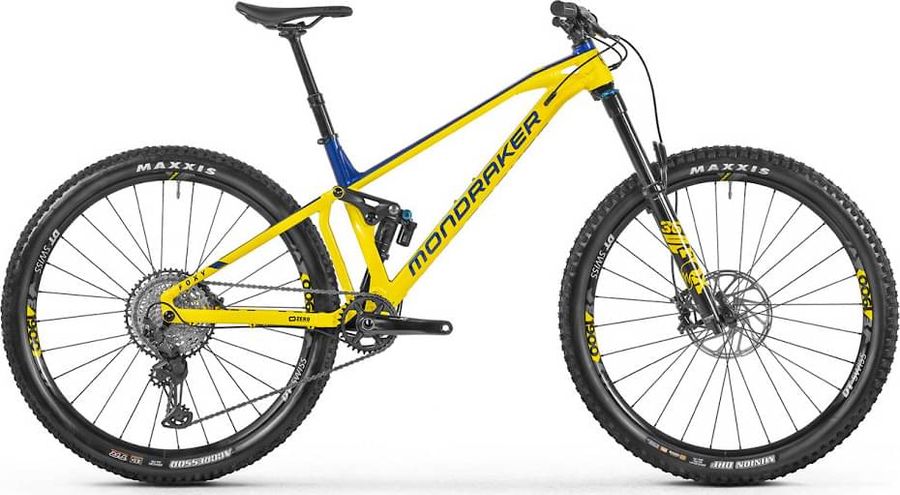

About the Mondraker Foxy R 2021

The Mondraker Foxy R 2021 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 14,8 kg.

Features

The Mondraker Foxy R 2021 has 5 features listed below.

Dropper seatpost More info

Boost 110 More info

Boost 148 More info

Hydraulic disc brakes More info

Tubeless ready More info

Specifications

Acessories
Grip	ONOFF Twin, 135mm length, single lock-on

Components
Steam	ONOFF Sulfur FG, 6061 forged alloy, 30mm length, 31.8mm bar clamp
Saddle	SDG Bel-Air 3.0, LPU foam, steel rails
Headset	ONOFF Saturn, ACB sealed bearings
Seatpost	ONOFF Pija dropper, Drop: 100mm (SM), 125mm (MD), 150mm (LG), 170mm (XL)
Handlebar	ONOFF Sulfur 1.0, double butted 6061 alloy, 20mm rise, 780mm width, 9° backsweep, 5° upsweep, 31.8mm clamp diameter
Brake lever	SRAM G2 RS, SwingLink, tool-free reach adjust
Brakes	SRAM G2 RS Hydraulic 397 g
Application MTB Blade material Aluminum - Stamped Bracket disk brake Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (40mm bracket) 40P Brake type Hydraulic Color Gloss Black Model DB-G2-RS-A1 Name G2 RS Orientation Front, Rear Pad type disc Steel-backed organic Weight based on Direct Mount, 800mm hose, 160mm CL Rotor Weight 397

Drivetrain
Crankset	Shimano Deore XT M8120, HOLLOWTECH II, 170mm length (SM/MD), 175mm length (LG/XL)
Shifter	Shimano Deore M6100, 12-speed, RAPIDFIRE PLUS
Bottom bracket	Shimano Deore BB52, 73mm BSA threaded
Rear derailleur	Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g) 284 B axle hollow B axle material Stainless steel Bracket body finish Painted Bracket body material Aluminum Compatible chain HG 12-speed Lower pulley max 51T Lower pulley min 51T Model RD-M8100-SGS P axle material Steel pulley.guide_pulley_bearing Sealed bearing pulley.screws_material Stainless steel pulley.sunken_type_pulley_screw Pulley teeth 13T pulley.tension_pulley_bearing Sealed bearing Pulley cage SGS Speeds 12 Upper pulley max 10T Upper pulley min 10T Total capacity 41T
Chain	Shimano CN-M6100 252 g
Average weight (g) 252 Chromizing treatment roller link pin Model CN-M6100 Pin link plate Gray Roller link plate Brown Type HG 12-speed
Cassette	Shimano SLX CS-M7100-12 HYPERGLIDE+
Aluminum gear finish Anodized Aluminum gear pieces 1 Aluminum spider arm finish Painted Aluminum spider arm pieces 1 Combination names 10-45T 10-51T Compatible chain HG 12-speed Lock ring finish Anodized Lock ring material Aluminum Model CS-M7100-12 Steel gear finish Plated Steel gear pieces 11 Type HYPERGLIDE+ Weights 10-45T: 513g 10-51T: 534g

Frameset
Frame	Aluminum
Rear suspension	Fox Float DPX2 Performance EVOL
Front suspension	Fox 36 Float Performance

Wheels
Rims	DT Swiss E1900 Spline, 30mm internal width, sleeved aluminum, tubeless ready, 28 hole
Tires	Front: Maxxis Minion DHF, 3C MaxxTerra, EXO+, TR, 120 TPI, folding bead, 29" x 2.5" WT, Rear: Maxxis Aggressor, Dual Compound, EXO, TR, 60 TPI, folding bead, 29" x 2.3"
Spokes	DT Swiss Champion, straightpull
Rear hub	DT Swiss 370, 6-bolt rotor mounts, 110x15mm Boost front, 148x12mm Boost rear with 3-pawl freehub and MICRO SPLINE driver
Front hub	DT Swiss 370, 6-bolt rotor mounts, 110x15mm Boost front, 148x12mm Boost rear with 3-pawl freehub and MICRO SPLINE driver

Follow your favorite drivers

Receive notifications when your favorite riders finish UCI races.

XT 1 × 12

Crank: 32T

Cassette: 10-51T

Speeds: 12s

Gearing

Average

0,63

Average

3,21

Compared to similar bikes, the Mondraker Foxy R 2021 has an excellent uphill performance and a good downhill performance.

Report incorrect information

Geometry

Size	SM	MD	LG	XL
a Seat tube length	380,0	420,0	470,0	510,0
b Seat tube angle	76,0º	76,0º	76,0º	76,0º
c Top tube length	603,0	626,0	651,0	675,0
d Head tube length	90,0	100,0	115,0	130,0
e Head tube angle	66,0º	66,0º	66,0º	66,0º
f Rake	-	-	-	-
g Trail	-	-	-	-
h Wheelbase	1190,0	1219,0	1245,0	1271,0
i Chainstay length	432,0	432,0	432,0	432,0
j Bottom bracket drop	19,0	19,0	19,0	19,0
k Stack height	603,0	612,0	627,0	640,0
l Reach	447,0	472,0	492,0	512,0
m Standover height	-	-	-	-
x Bottom bracket height	355,0	355,0	355,0	355,0
y Front center	-	-	-	-
