BikeWise

Mondraker Foxy XR 27.5 2019

MTB Enduro
Groupset
SRAM GX Eagle
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
14,8 kg
Front travel
160mm
Rear travel
150mm

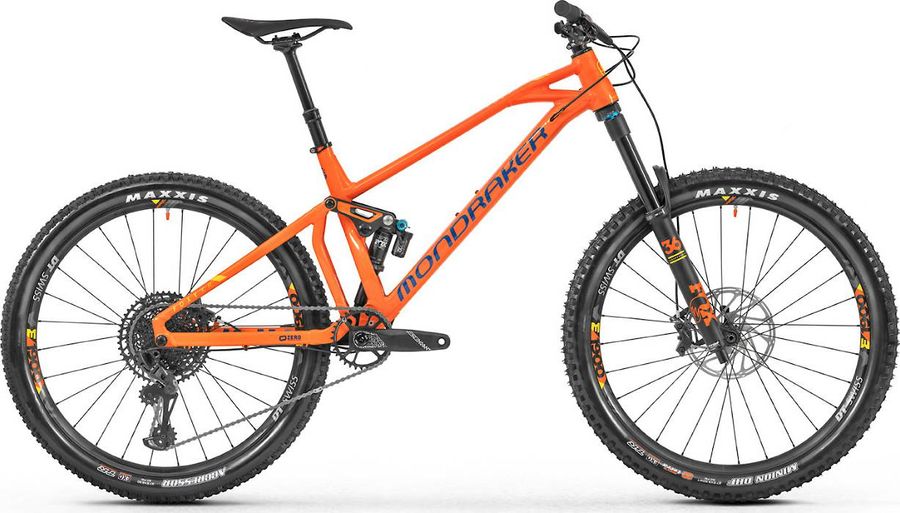

Mondraker Foxy XR 27.5 2019

About the Mondraker Foxy XR 27.5 2019

The Mondraker Foxy XR 27.5 2019 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 14,8 kg.

Features

The Mondraker Foxy XR 27.5 2019 has 5 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Onoff Diamond, lock-on, 130mm
Components
Steam
Onoff Stoic FG 30mm, 6061 forged alloy, 31.8mm clamp
Saddle
Mondraker Foxy XR design
Headset
Onoff Saturn, ACB sealed bearings
Seatpost
Onoff Pija Dropper, internal, 100mm drop (S), 125mm drop (M), 150mm drop (L-XL)
Handlebar
Mondraker double butted 6061 alloy, 25mm rise, 780mm width, 9º backsweep, 5º upsweep, 31.8mm clamp
Brake lever
SRAM Code R, tool-free reach adjust
Brakes
SRAM Code R Hydraulic
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (203mm DIR to 220mm Rotor - 17mm bracket) 17P, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Dark Grey Paint, Diffusion Black
Model
DB-CODE-R-B1
Name
Code R
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Drivetrain
Crankset
Truvativ Descendant 6K Eagle, 12-speed, Boost, DUB axle, 170mm (S/M), 175mm (L/XL)
Shifter
SRAM Trigger GX Eagle, 12-speed, X-Actuation
Bottom bracket
SRAM DUB BSA, sealed bearings, 73mm
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Cassette
SRAM PG-1230 Eagle 12s 615 g
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1230-A1
Name
PG-1230 Eagle Cassette
Speed
12s
Technology cassete
PG
Weight
615
Frameset
Frame
Aluminum
Rear suspension
Fox Float DPX2 Performance EVOL
Front suspension
Fox 36 Float Performance
Wheels
Rims
DT Swiss E1900 Spline 27.5, 30mm internal width, tubeless ready, 28 hole
Tires
Front: Maxxis Minion DHF 27.5" x 2.5" WT, tubeless ready, 3C MAXX TERRA compound, Exo protection, 60TPI, folding bead, Rear: Maxxis Aggresor 27.5" x 2.3", tubeless ready, dual compound, Exo protection, 60TPI, folding bead
Spokes
DT Swiss Champion, straight pull
Rear hub
Front: DT Swiss 370, 15mm x 110mm, IS 6-bolt, Rear: DT Swiss 370, 12mm x 148mm, IS 6-bolt
Front hub
Front: DT Swiss 370, 15mm x 110mm, IS 6-bolt, Rear: DT Swiss 370, 12mm x 148mm, IS 6-bolt

Geometry

Size SM MD LG XL
a
Seat tube length
380,0
420,0
470,0
510,0
b
Seat tube angle
76,0º
76,0º
76,0º
76,0º
c
Top tube length
599,0
622,0
646,0
668,0
d
Head tube length
110,0
120,0
140,0
150,0
e
Head tube angle
66,0º
66,0º
66,0º
66,0º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1176,0
1199,0
1228,0
1252,0
i
Chainstay length
422,0
422,0
422,0
422,0
j
Bottom bracket drop
10,0
10,0
10,0
10,0
k
Stack height
587,0
596,0
614,0
623,0
l
Reach
452,0
472,0
492,0
512,0
m
Standover height
-
-
-
-
x
Bottom bracket height
345,0
345,0
345,0
345,0
y
Front center
-
-
-
-
