Mondraker Level R 2020

E-Bike
MTB Downhill
Groupset
SRAM SX Eagle
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Weight
25,8 kg
Front travel
180mm
Rear travel
170mm

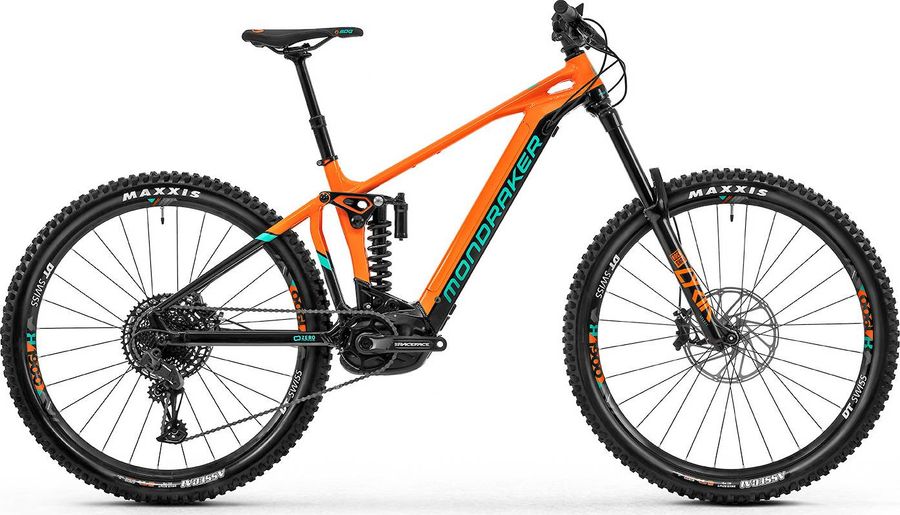

Mondraker Level R 2020

About the Mondraker Level R 2020

The Mondraker Level R 2020 is a Full suspension Downhill Mountain Bike with a alloy frame. Equipped with a SRAM SX Eagle drivetrain of 12 gears (1x12). Its features include boost 148, hydraulic disc brakes, and tubeless ready. The bike weighs approximately 25,8 kg.

Features

The Mondraker Level R 2020 has 3 features listed below.
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Onoff Desert, 1lock-on, 135mm
Components
Steam
Onoff Sulfur FG 30mm reach, 6061 forged alloy, 31.8mm clamp
Saddle
SDG Fly Mtn, Cro-Mo rail, PU foam
Battery
Bosch Powertube
Headset
Onoff Saturn, ACB sealed bearings, top 41x30.2x7x45°x45°, bottom 51.9x40x8x45°x45°
Seatpost
Onoff Pija, 337x100mm on S, 387x125mm on M, 425x150mm on L/XL
Handlebar
OnOff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 780mm, 9° backsweep, 5° upsweep, 31.8mm clamp
Brake lever
SRAM Code R
Brakes
SRAM Code R Hydraulic
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (203mm DIR to 220mm Rotor - 17mm bracket) 17P, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Dark Grey Paint, Diffusion Black
Model
DB-CODE-R-B1
Name
Code R
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Drivetrain
Crankset
Race Face Aeffect e-Bike, 165mm
Motor
Bosch Performance Line CX Gen4
Shifter
SRAM SX Eagle 12-speed
Chain
SRAM SX Eagle
Cassette
SRAM PG-1210 Eagle 12s
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1210-A1
Name
PG-1210 Eagle™ Cassette
Speed
12s
Technology cassete
PG
Rear derailleur
SRAM SX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-SX-1-A1
Name
SX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Aluminum
Front suspension
RockShox Lyrik Select DebonAir 1996 g
Color
Diffusion Black, Gloss Black
Damper type
Charger RC
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-LYRK-SEL-C2
Name
Lyrik Select
Spring
DebonAir
Travel (mm)
150mm, 160mm, 170mm, 180mm
Upper tube type
35mm tapered wall aluminum
Weight based on
27.5" BOOST, 150mm, Maxle Stealth
Weight
1996
Wheel size
27.5", 29"
Rear suspension
RockShox Super Deluxe Coil Select+ 398 g
Body eyelet
Standard, Trunnion
Compression tune
H, L, L1, LC, M
Damper type
RT
Eye to eye stroke
185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75
Lockout force
320, 380
Model
RS-SDLC-SELP-A2
Name
Super Deluxe Coil Select+
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard
Weight based on
W/O coil spring, 210x50, MM tune, standard/standard
Weight
398
Wheels
Rims
DT Swiss H1900 Spline 29, 30mm internal width, tubeless ready, 28 hole
Tires
Maxxis Assegai 2.5WT, Tubeless ready, 3C Maxx Grip, DH casing, 60TPI, folding bead front and rear
Spokes
DT Swiss Hybrid straight pull
Rear hub
DT Swiss 370, 15x100mm front and 12x148mm rear
Front hub
DT Swiss 370, 15x100mm front and 12x148mm rear

Geometry

Size SM MD LG XL
a
Seat tube length
380,0
420,0
450,0
490,0
b
Seat tube angle
76,5º
76,5º
76,5º
76,5º
c
Top tube length
599,0
619,0
644,0
664,0
d
Head tube length
110,0
110,0
130,0
130,0
e
Head tube angle
65,0º
65,0º
65,0º
65,0º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1247,0
1267,0
1287,0
1307,0
i
Chainstay length
452,0
452,0
452,0
452,0
j
Bottom bracket drop
17,0
17,0
17,0
17,0
k
Stack height
629,0
629,0
649,0
649,0
l
Reach
447,0
467,0
487,0
507,0
m
Standover height
-
-
-
-
x
Bottom bracket height
357,0
357,0
357,0
357,0
y
Front center
-
-
-
-
