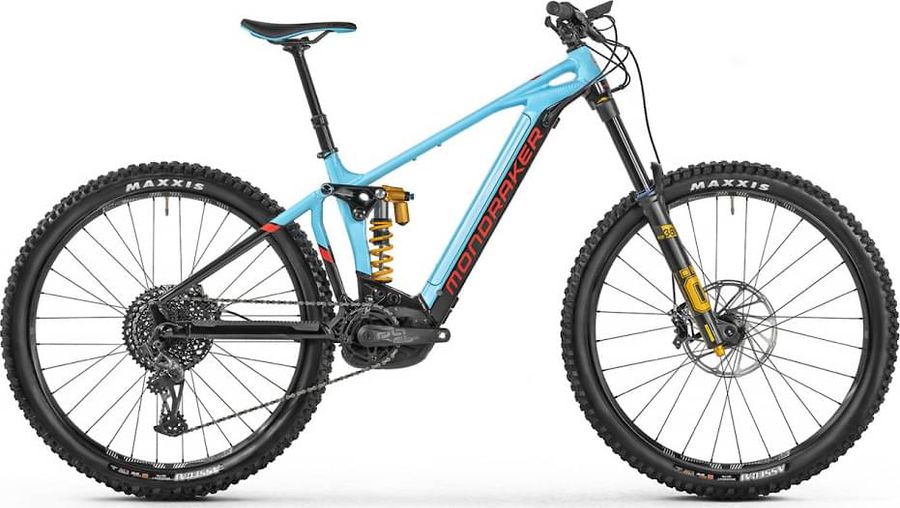

Mondraker Level RR 2021
The Mondraker Level RR 2021 is an electric-bike. E-bikes are bicycles with a battery-powered assist that comes via pedaling, so when you push the pedals a motor engages and gives you a boost.
E-Bike
Groupset
SRAM X01 Eagle
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Weight
25,5 kg
Front travel
180mm
Rear travel
170mm
About the Mondraker Level RR 2021
The Mondraker Level RR 2021 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 25,5 kg.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tubeless ready
More info
Tubeless ready
Specifications
|
Grip
|
Onoff Desert, single lock-on, 135mm length
|
|---|
|
Steam
|
Onoff Krypton FG, 6061 forged alloy, 30mm length, 31.8mm bar clamp
|
|---|---|
|
Saddle
|
SDG Bel-Air 3.0, EVA foam, alloy rails
|
|
Battery
|
Bosch Powertube, integrated, removable
|
|
Headset
|
Onoff Saturn, sealed angular contact bearings
|
|
Seatpost
|
Onoff Pija dropper, Drop: 125mm (SM), 150mm (MD), 170mm (LG/XL)
|
|
Handlebar
|
Onoff Krypton Carbon 1.0, 25mm rise, 780mm width, 9° backsweep, 5° upsweep, 31.8mm clamp diameter
|
|
Brake lever
|
SRAM Code RSC, SwingLink and lever pivot bearings, tool-free reach and contact point adjust
|
|
Brakes
|
SRAM Code RSC
Hydraulic
|
|
|
|
|
Crankset
|
e*thirteen e*Spec Plus E-Bike, 165mm length
|
|---|---|
|
Motor
|
Bosch Performance Line CX Cruise Gen4
|
|
Shifter
|
SRAM GX Eagle, 12-speed, X-ACTUATION 1:1, single click
|
|
Chain
|
SRAM GX Eagle
244 g
|
|
|
|
|
Cassette
|
SRAM PG-1230 Eagle
12s
615 g
|
|
|
|
|
Rear derailleur
|
SRAM X01 Eagle
12s
|
|
|
|
|
Frame
|
Aluminum
|
|---|---|
|
Front suspension
|
Ohlins RXF 38
|
|
Rear suspension
|
Ohlins TTX
|
|
Rims
|
e*thirteen e*Spec Plus, 30mm internal width, hookless, 6069 welded aluminum, tubeless ready, 28 hole front, 32 hole rear
|
|---|---|
|
Tires
|
Maxxis Assegai, 3C MaxxGrip, DH casing, TR, dual 60 TPI layers, folding bead, 29" x 2.5" WT
|
|
Spokes
|
e*thirteen custom J-bend, triple-butted alloy, alloy nipples, with nipple washers
|
|
Rear hub
|
e*thirteen, triple-sealed, fully machined aluminum, 15x110mm Boost front, 12x148mm Boost rear with 6° engagement freehub and HG driver
|
|
Front hub
|
e*thirteen, triple-sealed, fully machined aluminum, 15x110mm Boost front, 12x148mm Boost rear with 6° engagement freehub and HG driver
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
380,0
|
420,0
|
450,0
|
490,0
|
|
b
Seat tube angle
|
76,5º
|
76,5º
|
76,5º
|
76,5º
|
|
c
Top tube length
|
599,0
|
619,0
|
644,0
|
664,0
|
|
d
Head tube length
|
110,0
|
110,0
|
130,0
|
130,0
|
|
e
Head tube angle
|
65,0º
|
65,0º
|
65,0º
|
65,0º
|
|
f
Rake
|
-
|
-
|
-
|
-
|
|
g
Trail
|
-
|
-
|
-
|
-
|
|
h
Wheelbase
|
1247,0
|
1267,0
|
1287,0
|
1307,0
|
|
i
Chainstay length
|
452,0
|
452,0
|
452,0
|
452,0
|
|
j
Bottom bracket drop
|
17,0
|
17,0
|
17,0
|
17,0
|
|
k
Stack height
|
629,0
|
629,0
|
649,0
|
649,0
|
|
l
Reach
|
447,0
|
467,0
|
487,0
|
507,0
|
|
m
Standover height
|
-
|
-
|
-
|
-
|
|
x
Bottom bracket height
|
357,0
|
357,0
|
357,0
|
357,0
|
|
y
Front center
|
-
|
-
|
-
|
-
|
