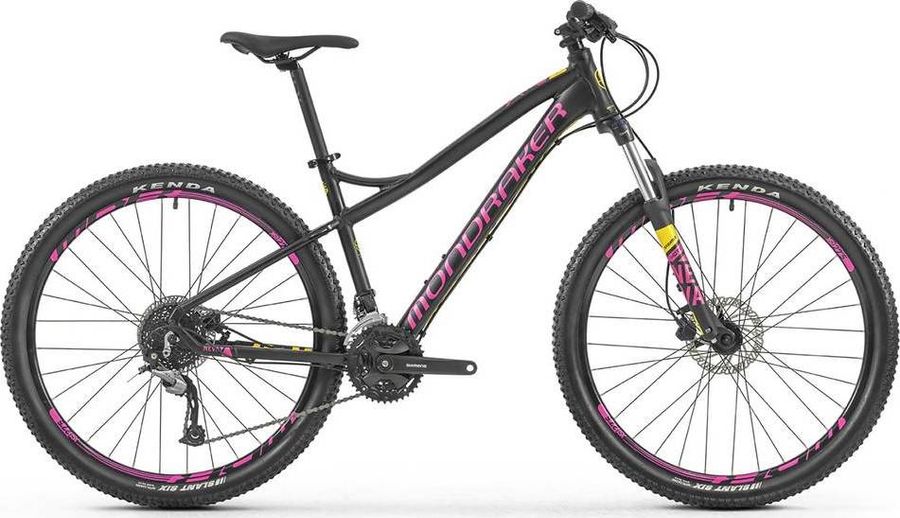

Mondraker Neva 2019
The Mondraker Neva 2019 is a women’s bike. In general, women’s bikes are designed to fit better on women's body proportions.
Women's Bike
Groupset
Shimano Acera
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Front travel
100mm
About the Mondraker Neva 2019
The Mondraker Neva 2019 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Acera drivetrain. Its features include hydraulic disc brakes.
Features
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Grip
|
Onoff Ergo
|
|---|---|
|
Pedals
|
Supplied
|
|
Steam
|
MDK XC, alloy, 31.8mm barbore, rise: +/-7º, length: sizes S/M: 60mm, size L: 75mm
|
|---|---|
|
Brakes
|
Tektro
|
|
Saddle
|
Mondraker Neva design
|
|
Headset
|
CH-9280, Internal ZS, 44mm external diameter cup
|
|
Seatpost
|
MDK XC, 6061 T6 alloy, diameter 27.2mm, length 350mm, offset 15mm
|
|
Handlebar
|
MDK XC 1.0, 6061 alloy, rise: 25mm, width: 660mm, 9º backsweep, 5º upsweep, 31.8mm barbore
|
|
Discs
|
Tektro HDM275 hydraulic, 160mm IS 6 bolts rotor
|
|
Brake lever
|
Tektro HDM275 hydraulic
|
|
Shifter
|
Shimano Altus M2000, 3x9s
|
|---|---|
|
Bottom bracket
|
CH-52
|
|
Front derailleur
|
Shimano Altus M2000, down swing, down pull
|
|
Rear derailleur
|
Shimano Acera RD-M3000
|
|
Cassette
|
Sunrace 9-speed
|
|
Chain
|
KMC Z99
|
|
Frame
|
Neva 27´5 6061 Custolite Alloy triple butted, Avant Geometry, internal headset, replaceable hanger, BSA bottom bracket, QR 9mm rear axle
|
|---|---|
|
Front suspension
|
SR Suntour XCT
|
|
Rims
|
MDK-XS1 27´5, 24mm external width, 32 spokes
|
|---|---|
|
Tires
|
Kenda Slant Six 27´5x2.35 single compound, 30TPI, wire bead
|
|
Spokes
|
CN round stainless steel
|
|
Rear hub
|
MDK DC22, 9x135mm QR axle, cup & cone ball bearings, IS 6 bolts
|
|
Front hub
|
MDK DC20, 9x100mm QR axle, cup & cone ball bearings, IS 6 bolts
|
