Mondraker Podium Carbon 2020

MTB Cross Country
Groupset
SRAM NX Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Hardtail
Weight
10,2 kg
Front travel
100mm

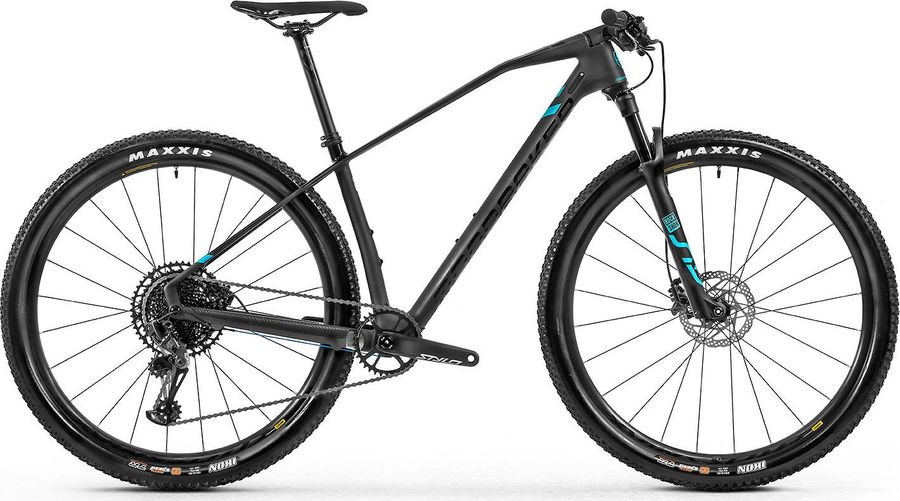

Mondraker Podium Carbon 2020

About the Mondraker Podium Carbon 2020

The Mondraker Podium Carbon 2020 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM NX Eagle drivetrain of 12 gears (1x12). Its features include hydraulic disc brakes, remote lockout, and tubeless ready. The bike weighs approximately 10,2 kg.

Features

The Mondraker Podium Carbon 2020 has 3 features listed below.
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Onoff Twin, 1lock-on, 135mm
Components
Steam
Stealth Carbon Integrated, 31.8mm clamp, 75mm (S/M), 90mm (L), or 105mm (XL) reach
Saddle
Fizik Antares R7
Headset
Onoff Titan, ACB sealed bearings, top 41.8x30.5x8x45°x45°, bottom 51.9x40x8x45°x45°
Seatpost
OnOff Sulfur 0-R, 6061 T6 Alloy, 400mm
Handlebar
Onoff Sulfur 0.2, rise: 4.8mm, width: 760mm, 9° backsweep, 0° upsweep, 31.8mm clamp
Brake lever
Shimano MT501
Brakes
Shimano Deore BR-MT501
Drivetrain
Crankset
Truvativ Stylo 6K DUB Eagle, 170mm on S and 175mm on M/L/XL
Shifter
SRAM NX Eagle 12-speed
Bottom bracket
SRAM DUB PF30
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Rear derailleur
SRAM NX Eagle 12s 339 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-NX-1-B1
Name
NX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Weight
339
Cassette
SRAM PG-1230 Eagle 12s 615 g
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1230-A1
Name
PG-1230 Eagle Cassette
Speed
12s
Technology cassete
PG
Weight
615
Frameset
Frame
Carbon Fiber
Front suspension
RockShox SID Select DebonAir 1671 g
Color
Diffusion Black, Gloss Black
Damper type
Charger RL
fork offset
44mm (29")
Max tire width (mm)
66
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-SID-SEL-C1
Name
SID Select
Spring
DebonAir
Travel (mm)
110mm, 120mm
Upper tube type
35mm tapered aluminum
Weight based on
120mm travel W/Maxle Stealth
Weight
1671
Wheel size
29"
Wheels
Rims
Mavic Crossmax, 25mm internal width, asymmetric, tubeless ready, 24 hole
Tires
Maxxis Ikon 29x2.2", 3C MaxxSpeed compound, tubeless ready, 120TPI, folding bead, front and rear
Spokes
Mavic steel
Rear hub
Mavic Boost, sealed bearing, ID360 rear
Front hub
Mavic Boost, sealed bearing, ID360 rear

Geometry

Size SM MD LG XL
a
Seat tube length
395,0
430,0
470,0
520,0
b
Seat tube angle
73,5º
73,5º
73,5º
73,5º
c
Top tube length
585,0
605,0
625,0
645,0
d
Head tube length
85,0
90,0
100,0
115,0
e
Head tube angle
70,0º
70,0º
70,0º
70,0º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1081,0
1101,0
1122,0
1142,0
i
Chainstay length
427,0
427,0
427,0
427,0
j
Bottom bracket drop
74,0
74,0
74,0
74,0
k
Stack height
632,0
637,0
646,0
661,0
l
Reach
397,0
415,0
432,0
447,0
m
Standover height
-
-
-
-
x
Bottom bracket height
300,0
300,0
300,0
300,0
y
Front center
-
-
-
-
