Mondraker Podium Carbon R 2021

MTB Cross Country
Groupset
Shimano XT
Frame material
Carbon
Wheel size
29"
Suspension type
Hardtail
Front travel
100mm

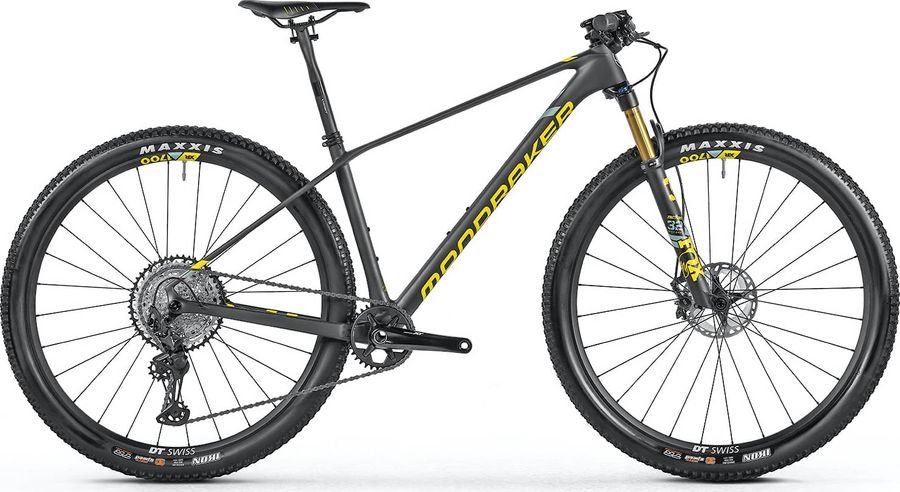

Mondraker Podium Carbon R 2021

About the Mondraker Podium Carbon R 2021

The Mondraker Podium Carbon R 2021 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a Shimano XT drivetrain of 12 gears (1x12). Its features include boost 110 , boost 148, and hydraulic disc brakes.

Features

The Mondraker Podium Carbon R 2021 has 6 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
trava-remota-guidao
Remote lockout More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
ONOFF Twin, single lock-on, 135mm
Components
Steam
MDK, 6061 T6 Alloy, 31.8mm barbore, rise: +/-5°, length: sizes S/M: 60mm, size L: 70mm, size XL: 80mm
Saddle
fi'zi:k Antares R7
Headset
ONOFF Titan tapered for 1-1/8" to 1-1/2" head tube, ACB sealed bearings, top 41.8x30.5x8x45°x45°, bottom 51.9x40x8x45°x45°
Seatpost
ONOFF Helium Carbon 0-R VFLEX, length 400mm
Handlebar
ONOFF Helium Carbon 0.2, rise: 4.8mm, width: 740mm, 9° backsweep, 0° upsweep, 31.8mm barbore
Brake lever
Shimano XT M8100, ergonomic antiskid lever with servo wave, tool less reach adjust, free stroke adjust
Brakes
Shimano Deore XT BR-M8100 392 (BL-M8100) g Hydraulic disc brake 2 piston
Average weight (g)
392 (BL-M8100)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M8100
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
J03A Resin (w/ fin)
Pad option
J04C Metal (w/ fin)
Pad standard
G03A Resin (w/o fin)
Pad standard
G04S Metal (w/o fin)
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended brake lever
BL-M8100
BL-T8100
Drivetrain
Crankset
Shimano XT M8100 Boost, Hollowtech II, Q-factor 172mm, size S: 170mm, size M/L/XL: 175mm
Shifter
Shimano SLX M8100, Rapid Fire Plus, 12-speed
Bottom bracket
Shimano XT MT800 BSA, 68/73mm
Rear derailleur
Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g)
284
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M8100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Chain
Shimano CN-M6100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M6100
Pin link plate
Gray
Roller link plate
Brown
Type
HG 12-speed
Cassette
Shimano SLX CS-M7100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
1
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M7100-12
Steel gear finish
Plated
Steel gear pieces
11
Type
HYPERGLIDE+
Weights
10-45T: 513g
10-51T: 534g
Frameset
Frame
Carbon Fiber
Front suspension
Fox 32 SC Float Factory Kashima
Wheels
Rims
DT Swiss XR 1700 Spline 29, 25mm internal width, welded aluminum, tubeless ready, 28 hole
Tires
Maxxis Ikon 29"x2.20", 3C MaxxSpeed compound, tubeless ready, 120 TPI, folding bead
Spokes
DT Swiss Competition, straightpull
Rear hub
Front: DT Swiss 350, Boost 15x110mm, CenterLock, Rear: DT Swiss 350, Boost 12x148mm, 36-tooth SL Ratchet system, CenterLock, MS freehub
Front hub
Front: DT Swiss 350, Boost 15x110mm, CenterLock, Rear: DT Swiss 350, Boost 12x148mm, 36-tooth SL Ratchet system, CenterLock, MS freehub

Geometry

Size SM MD LG XL
a
Seat tube length
390,0
420,0
470,0
510,0
b
Seat tube angle
74,5º
74,5º
74,5º
74,5º
c
Top tube length
597,0
618,0
639,0
657,0
d
Head tube length
85,0
90,0
100,0
115,0
e
Head tube angle
68,5º
68,5º
68,5º
68,5º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1114,0
1135,0
1157,0
1177,0
i
Chainstay length
437,0
437,0
437,0
437,0
j
Bottom bracket drop
74,0
74,0
74,0
74,0
k
Stack height
605,0
609,0
618,0
632,0
l
Reach
432,0
451,0
470,0
484,0
m
Standover height
-
-
-
-
x
Bottom bracket height
300,0
300,0
300,0
300,0
y
Front center
-
-
-
-
