Mondraker Summum 27.5 2021

MTB Downhill
Groupset
SRAM X7
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
200mm
Rear travel
200mm

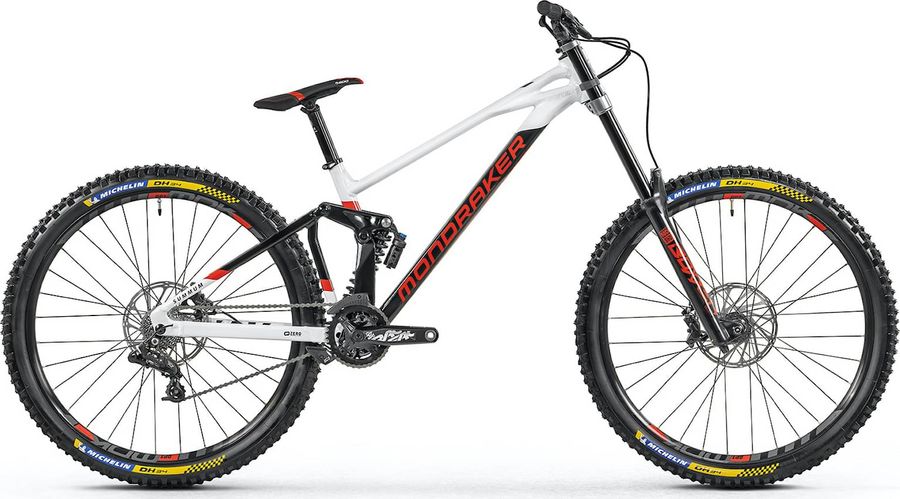

Mondraker Summum 27.5 2021

About the Mondraker Summum 27.5 2021

The Mondraker Summum 27.5 2021 is a Full suspension Downhill Mountain Bike with a alloy frame. Equipped with a SRAM X7 drivetrain of 9 gears (1x9). Its features include boost 110 , hydraulic disc brakes, and tubeless ready.

Features

The Mondraker Summum 27.5 2021 has 3 features listed below.
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
ONOFF Desert, single lock-on, 135mm, sizes: S/M L/XL
Components
Steam
ONOFF Krypton DH CNC Integrated FG, 25-30mm adjustable length, 31.8mm barbore, 6061 alloy, 2x6mm spacer
Saddle
SDG I-Fly 2.0 I-Beam, high-density PU foam, Cordura sides
Headset
ONOFF Mercurium 1.5 ZS for 1-1/8" steerer tube, 41x30.15x7x45°x45° ACB sealed bearings, geometry kit cups, external diameter 56mm
Seatpost
SDG Micro I-Beam SP-751 Alloy, length 300mm, micro-adjustment
Handlebar
ONOFF Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 780mm, 9° backsweep, 5° upsweep, 31.8mm barbore
Brake lever
SRAM Code R, tool-free reach adjust
Brakes
SRAM Code R Hydraulic
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (203mm DIR to 220mm Rotor - 17mm bracket) 17P, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Dark Grey Paint, Diffusion Black
Model
DB-CODE-R-B1
Name
Code R
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Drivetrain
Crankset
Race Face Chester, alloy, 165mm
Shifter
SRAM trigger X5, 9-speed, X-ACTUATION 1:1
Chain guide
e*thirteen LG1 with DMB (Direct mount Bashguard) Gen2 Stealth idler, aluminum hardware, adjustable/replaceable lower armature, polycarbonate, adjustable upper slider
Bottom bracket
83mm BSA
Rear derailleur
SRAM X7
Cassette
SRAM PG-950 9s
Cog finish cassete
Silver
Cog sizes
11-26t:11,13,14,15,17,19,21,23,26
11-28t:11,12,13,14,16,18,21,24,28
11-32t:11,12,14,16,18,21,24,28,32
11-34t:11,13,15,17,20,23,26,30,34
12-23t:12,13,14,15,16,17,19,21,23
12-26t:12,13,14,15,17,18,21,23,26
Gearing
11-26t
11-28t
11-32t
11-34t
12-23t
12-26t
Model
CS-PG-950-A1
Name
PG-950 Cassette
Speed
9s
Technology cassete
PG
Chain
SRAM PC-951 Chain
Chain connector
n/a, PowerLink, Rivet Pin
Chain length links
100 links, 102 links, 104 links, 106 links, 108 links, 110 links, 112 links, 114 links, 116 links, 118 links, 90 links, 96 links, 98 links, n/a
Color inner link
Grey
Color outer link
Grey
Compat speed
9s
Inner link finish
Polished
Model
CN-951-A1
Name
PC-951 Chain
Outer link finish
Polished
Pin variant
n/a, Solid Pin
Frameset
Frame
Aluminum
Front suspension
RockShox Boxxer RC Coil
Color
Diffusion Black, Gloss Black, Gloss White
fork offset
42mm, 48mm
Maximum rotor size
210mm
Minimum rotor size
160mm, 200mm
Model
FS-BXR-RC-B2
Name
BoXXer RC
Spring
Coil
Travel (mm)
200mm
Upper tube type
35mm tapered aluminum
Wheel size
26", 27.5"
Rear suspension
Fox VAN RC Performance
Wheels
Rims
MDK-DP1 27.5, 32mm external width, 32 hole
Tires
Michelin DH34 27.5"x2.4", tubeless ready, Magi-X DH compound, double-reinforced DH shield casing, wire bead
Spokes
CN stainless steel
Rear hub
Front: MDK DA4371B-M20, Boost 20x110mm, IS 6-bolt, Rear: MDK DA4352B, 12x157mm, sealed bearings, IS 6-bolt
Front hub
Front: MDK DA4371B-M20, Boost 20x110mm, IS 6-bolt, Rear: MDK DA4352B, 12x157mm, sealed bearings, IS 6-bolt

Geometry

Size SM MD
a
Seat tube length
400,0
400,0
b
Seat tube angle
77,0º
77,0º
c
Top tube length
560,0
580,0
d
Head tube length
112,0
112,0
e
Head tube angle
63,0º
63,0º
f
Rake
-
-
g
Trail
-
-
h
Wheelbase
1243,0
1263,0
i
Chainstay length
450,0
450,0
j
Bottom bracket drop
5,0
5,0
k
Stack height
600,0
600,0
l
Reach
430,0
450,0
m
Standover height
-
-
x
Bottom bracket height
350,0
350,0
y
Front center
-
-
