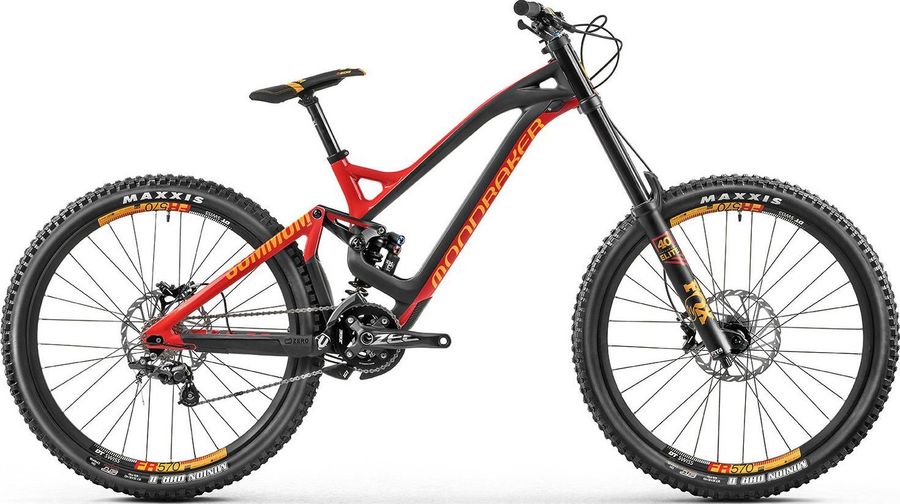

Mondraker Summum Carbon Pro 2018

MTB Downhill

Groupset

Shimano Zee

Frame material

Carbon

Wheel size

27,5"

Suspension type

Full suspension

Front travel

203mm

Rear travel

205mm

About the Mondraker Summum Carbon Pro 2018

The Mondraker Summum Carbon Pro 2018 is a Full suspension Downhill Mountain Bike with a carbon frame. Equipped with a Shimano Zee drivetrain of 10 gears (1x10). Its features include boost 110 , hydraulic disc brakes, and tubeless ready.

Features

The Mondraker Summum Carbon Pro 2018 has 3 features listed below.

Boost 110 More info

Hydraulic disc brakes More info

Tubeless ready More info

Specifications

Acessories
Grip	Onoff Diamond, lock-on, 130mm

Components
Steam	Onoff Stoic DH Integrated FG, 20-30mm adjustable length, 6061 aluminium, 31.8mm clamp
Saddle	SDG I-beam I-Fly 2.0, high-density PU, cordura protection
Headset	Onoff Mercurium 1.5 ZS, ACB sealed bearings, 56mm external diameter
Seatpost	SDG I-Beam SP-751, alloy, 300mm length, micro-adjustment
Handlebar	Mondraker double butted 6061 aluminum, 25mm rise, 780mm width, 9° backsweep, 5° upsweep, 31.8mm clamp
Brake lever	SRAM Guide R, tool-free reach adjust, ambidextrous lever mount
Brakes	SRAM Guide R Hydraulic 392 g
Application MTB Blade material Aluminum - Stamped Bracket disk brake Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P Brake type Hydraulic Color Gloss Black Model DB-GDE-R-B1 Name Guide R Orientation Front, Rear Pad type disc Steel-backed metal sintered, Steel-backed organic Weight based on Direct Mount, 800mm hose, 160mm CL Rotor Weight 392

Drivetrain
Crankset	Shimano Zee M645, alloy, reinforced steel axle, 165mm length
Shifter	Shimano Zee SL-M640, 10-speed, 2-way release
Chain guide	e*thirteen LG1+, DMB (Direct Mount Bashguard) Gen 2 Stealth Idler, aluminum hardware, adjustable/replaceable lower armature, solvent-resistant polycarbonate, larger ISCG05 mount holes, adjustable upper slider
Bottom bracket	Shimano 83mm BSA
Front derailleur	N/A (1x-specific)
Chain	Shimano CN-HG95 273 g
Average weight (g) 273 Chromizing treatment roller link pin Model CN-HG95 Pin link plate SIL-TEC Roller link plate SIL-TEC Type HG-X 10-speed
Rear derailleur	Shimano Zee RD-M640-SS 275 g SS 10s
Average weight (g) 275 B axle hollow B axle material Stainless steel Bracket finish Painted Bracket material Steel Bracket body finish Painted Bracket body material Aluminum Cable fixing bolt material Stainless steel Compatible chain HG-X 10-speed Lower pulley max 36T(Freeride spec), 28T(DH spec) Lower pulley min 23T Model RD-M640-SS P axle material Steel Pulley bolts material Stainless steel Sunken type pulley bolt Pulley teeth 11T Pulley cage SS Speeds 10 Upper pulley max 12T Upper pulley min 11T Total capacity 25T
Cassette	Shimano Deore CS-HG500-10

Frameset
Frame	Carbon Fiber
Front suspension	Fox 40 Float Performance Elite
Rear suspension	Fox DHX2 Performance Elite

Wheels
Rims	DT Swiss FR570, 33mm external width, tubeless ready, 32 hole
Tires	Maxxis Minion DHR II, Super Tacky compound, wire bead, 27.5" x 2.4"
Spokes	CN stainless steel, butted 2.0-1.8-2.0
Rear hub	MDK Disc Pro DH, IS 6-bolt, 110x20mm front, 150x12mm rear
Front hub	MDK Disc Pro DH, IS 6-bolt, 110x20mm front, 150x12mm rear

Follow your favorite drivers

Receive notifications when your favorite riders finish UCI races.

Zee 1 × 10

Crank: 36T

Cassette: 11-25T

Speeds: 10s

Gearing

Average

1,44

Average

3,28

Compared to similar bikes, the Mondraker Summum Carbon Pro 2018 has a regular uphill performance and a good downhill performance.

Report incorrect information

Geometry

Size	SM	MD	LG	XL
a Seat tube length	400,0	400,0	400,0	400,0
b Seat tube angle	73,5º	73,5º	73,5º	73,5º
c Top tube length	575,0	600,0	622,0	647,0
d Head tube length	112,0	112,0	122,0	122,0
e Head tube angle	63,0º	63,0º	63,0º	63,0º
f Rake	-	-	-	-
g Trail	-	-	-	-
h Wheelbase	1,2e3	1225,0	1250,0	1280,0
i Chainstay length	445,0	445,0	445,0	445,0
j Bottom bracket drop	5,0	5,0	5,0	5,0
k Stack height	597,0	597,0	606,0	606,0
l Reach	397,0	422,0	442,0	468,0
m Standover height	-	-	-	-
x Bottom bracket height	350,0	350,0	350,0	350,0
y Front center	-	-	-	-
