Mondraker Summum Carbon Pro Team 2018

MTB Downhill
Groupset
Shimano Saint
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Front travel
203mm
Rear travel
205mm

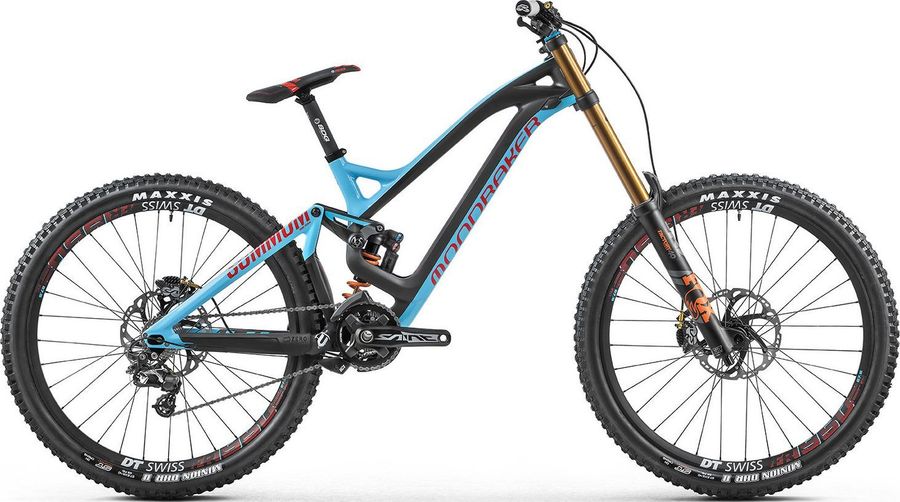

Mondraker Summum Carbon Pro Team 2018

About the Mondraker Summum Carbon Pro Team 2018

The Mondraker Summum Carbon Pro Team 2018 is a Full suspension Downhill Mountain Bike with a carbon frame. Equipped with a Shimano Saint drivetrain of 10 gears (1x10). Its features include boost 110 , hydraulic disc brakes, and tubeless ready.

Features

The Mondraker Summum Carbon Pro Team 2018 has 3 features listed below.
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Renthal, double lock-on, kevlar, 130mm
Components
Steam
Onoff Stoic DH Integrated FG, 20-30mm adjustable length, 6061 aluminium, 31.8mm clamp
Saddle
SDG I-beam I-Fly 2.0, EVA, high-grade microfibre, kevlar protection
Headset
Internal Onoff Mercurium 1.5 ZS, ACB sealed bearings, 56mm external diameter
Seatpost
SDG I-Beam SP-951, carbon, 300mm length, micro-adjustment
Handlebar
Renthal Fatbar series 7 alloy, 30mm rise, 780mm width, 7° backsweep, 5° upsweep, 31.8mm clamp
Brake lever
Shimano Saint, ICE technology, ergonomic antiskid lever with servo wave, free stroke and tool less reach adjust
Brakes
Shimano Saint BR-M820 438 (BL-M820) g Hydraulic disc brake 4 piston
Average weight (g)
438 (BL-M820)
Brake hose color kit
Black
Brake hose color kit
White
Brake hose kit
SM-BH90-SBLS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M820
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
H01A Resin
H03A Resin
Pad standard
H03C Metal
Pad mount
Pad axle
Piston
4
Piston material
Ceramic
Recommended disc brake rotor
SM-RT99
SM-RT86
Drivetrain
Crankset
Shimano Saint M825, Hollowtech II technology, 165mm length
Cassette
Shimano Ultegra CS-HG6700, 11-25 tooth, 10-speed
Shifter
Shimano Saint SL-M820, 10-speed, low friction dual sealed bearings, Multi Release
Chain guide
e*thirteen LG1R carbon, IFD DMB (Direct Mount Bashguard) Gen 2 Stealth Idler, aluminum hardware, adjustable/replaceable lower armature, solvent-resistant polycarbonate, larger ISCG05 mount holes, adjustable upper slider
Bottom bracket
Shimano 83mm BSA
Front derailleur
N/A (1x-specific)
Chain
Shimano CN-HG95 273 g
Average weight (g)
273
Chromizing treatment roller link pin
Model
CN-HG95
Pin link plate
SIL-TEC
Roller link plate
SIL-TEC
Type
HG-X 10-speed
Rear derailleur
Shimano RD-M820-SS 280 (w/o mode converter) g SS 10s
Average weight (g)
280 (w/o mode converter)
B axle finish
Anodized
B axle hollow
B axle material
Aluminum
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 10-speed
Lower pulley max
28/36T
Lower pulley min
23T
Model
RD-M820-SS
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SS
Speeds
10
Upper pulley max
12T
Upper pulley min
11T
Total capacity
25T
Frameset
Frame
Carbon Fiber
Front suspension
Fox 40 Float Factory
Rear suspension
Fox DHX2 Factory
Wheels
Rims
DT Swiss FR1950, 33mm external width, tubeless ready, 32 hole
Tires
Maxxis Minion DHR II, Super Tacky compound, wire bead, 27.5" x 2.4"
Spokes
DT Swiss competition, black
Rear hub
DT Swiss Classic 240, IS 6-bolt, 110x20mm front, 150x12mm rear
Front hub
DT Swiss Classic 240, IS 6-bolt, 110x20mm front, 150x12mm rear

Geometry

Size SM MD LG XL
a
Seat tube length
400,0
400,0
400,0
400,0
b
Seat tube angle
73,5º
73,5º
73,5º
73,5º
c
Top tube length
575,0
600,0
622,0
647,0
d
Head tube length
112,0
112,0
122,0
122,0
e
Head tube angle
63,0º
63,0º
63,0º
63,0º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1,2e3
1225,0
1250,0
1280,0
i
Chainstay length
445,0
445,0
445,0
445,0
j
Bottom bracket drop
5,0
5,0
5,0
5,0
k
Stack height
597,0
597,0
606,0
606,0
l
Reach
397,0
422,0
442,0
468,0
m
Standover height
-
-
-
-
x
Bottom bracket height
350,0
350,0
350,0
350,0
y
Front center
-
-
-
-
