Groupset
Shimano Zee
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
16,7 kg
Front travel
203mm
Rear travel
205mm

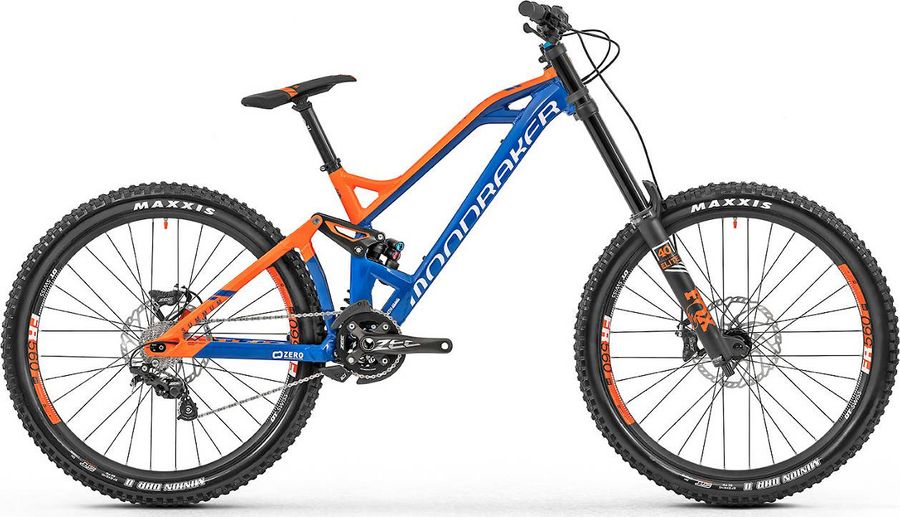

About the Mondraker Summum Pro 2019
The Mondraker Summum Pro 2019 is a Full suspension Downhill Mountain Bike with a alloy frame. Equipped with a Shimano Zee drivetrain of 10 gears (1x10). Its features include boost 110 , hydraulic disc brakes, and tubeless ready. The bike weighs approximately 16,7 kg.
Features
Boost 110
More info
Boost 110
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tubeless ready
More info
Tubeless ready
Specifications
|
Grip
|
Onoff Diamond, lock-on, 130mm
|
|---|
|
Steam
|
Onoff Stoic DH Integrated FG, 20-30mm adjustable length, 31.8mm clamp, 6061 alloy
|
|---|---|
|
Saddle
|
SDG I-Fly 2.0 I-Beam, high-density PU foam, Cordura sides
|
|
Headset
|
Onoff Mercurium 1.5 ZS, ACB sealed bearings, 56mm external diameter
|
|
Seatpost
|
SDG Micro I-Beam SP-751 alloy, 300mm length, micro-adjustment
|
|
Handlebar
|
Mondraker double butted 6061 alloy, 25mm rise, 780mm width, 9º backsweep, 5º upsweep, 31.8mm clamp
|
|
Brake lever
|
Shimano Zee, ergonomic anti-skid lever with servo wave, tool-free reach adjust
|
|
Brakes
|
Shimano ZEE BR-M640
314 ** g
Hydraulic disc brake
4 piston
|
|
H03A Resin D03S Resin |
|
|
Crankset
|
Shimano Zee M640, alloy, reinforced steel axle, 165mm length
|
|---|---|
|
Shifter
|
Shimano Zee SL-M640, 10-speed, 2-way release
|
|
Chain guide
|
e*thirteen LG1+, DMB (Direct Mount Bashguard) Gen 2 Stealth Idler, aluminum hardware, adjustable/replaceable lower armature, solvent-resistant polycarbonate, adjustable upper slider
|
|
Bottom bracket
|
Shimano 73mm
|
|
Chain
|
Shimano CN-HG54
273 g
|
|
|
|
|
Rear derailleur
|
Shimano Zee RD-M640-SS
275 g
SS
10s
|
|
28T(DH spec) |
|
|
Cassette
|
Shimano Deore CS-HG500-10
|
|
Frame
|
Aluminum
|
|---|---|
|
Front suspension
|
Fox 40 Float Performance Elite
|
|
Rear suspension
|
Fox DHX2 Performance Elite
|
|
Rims
|
DT Swiss FR560 27.5, 30mm internal width, tubeless ready, 32-hole
|
|---|---|
|
Tires
|
Maxxis Minion DHR II 27.5" x 2.4", Super Tacky compound, wire bead
|
|
Spokes
|
CN stainless steel butted 2.0-1.8-2.0
|
|
Rear hub
|
Front: MDK Disc Pro DH, 20mm x 110mm, IS 6-bolt, Rear: MDK Disc Pro DH, 12mm x 150mm, sealed bearings, IS 6-bolt
|
|
Front hub
|
Front: MDK Disc Pro DH, 20mm x 110mm, IS 6-bolt, Rear: MDK Disc Pro DH, 12mm x 150mm, sealed bearings, IS 6-bolt
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
400,0
|
400,0
|
400,0
|
400,0
|
|
b
Seat tube angle
|
73,5º
|
73,5º
|
73,5º
|
73,5º
|
|
c
Top tube length
|
575,0
|
600,0
|
622,0
|
647,0
|
|
d
Head tube length
|
112,0
|
112,0
|
122,0
|
122,0
|
|
e
Head tube angle
|
63,0º
|
63,0º
|
63,0º
|
63,0º
|
|
f
Rake
|
-
|
-
|
-
|
-
|
|
g
Trail
|
-
|
-
|
-
|
-
|
|
h
Wheelbase
|
1,2e3
|
1225,0
|
1250,0
|
1280,0
|
|
i
Chainstay length
|
445,0
|
445,0
|
445,0
|
445,0
|
|
j
Bottom bracket drop
|
5,0
|
5,0
|
5,0
|
5,0
|
|
k
Stack height
|
597,0
|
597,0
|
606,0
|
606,0
|
|
l
Reach
|
397,0
|
422,0
|
442,0
|
468,0
|
|
m
Standover height
|
-
|
-
|
-
|
-
|
|
x
Bottom bracket height
|
350,0
|
350,0
|
350,0
|
350,0
|
|
y
Front center
|
-
|
-
|
-
|
-
|
