Groupset
Shimano Zee
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
16,4 kg
Front travel
203mm
Rear travel
205mm

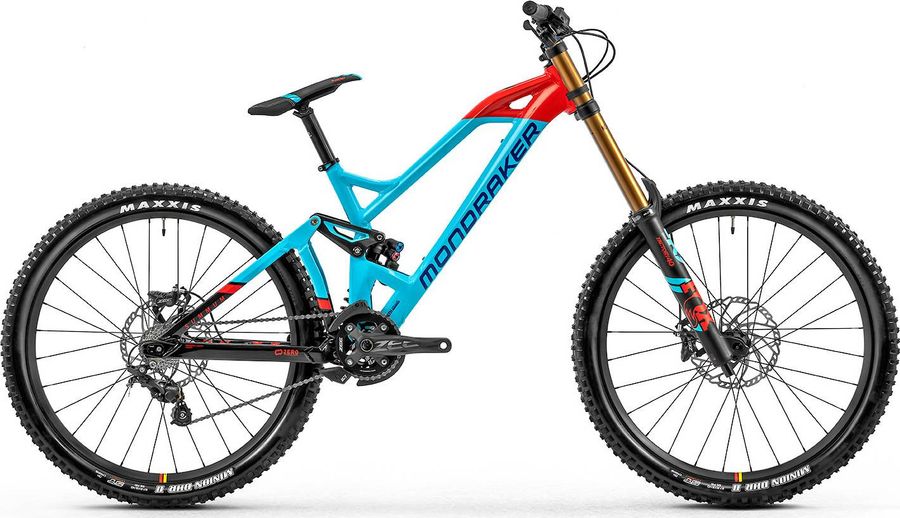

About the Mondraker Summum R 2020
The Mondraker Summum R 2020 is a Full suspension Downhill Mountain Bike with a alloy frame. Equipped with a Shimano Zee drivetrain of 10 gears (1x10). Its features include boost 110 e hydraulic disc brakes. The bike weighs approximately 16,4 kg.
Features
Boost 110
More info
Boost 110
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Grip
|
Onoff Desert, 1lock-on, 135mm
|
|---|
|
Steam
|
Onoff Krypton DH CNC Integrated FG, 25-30mm adjustable length, 31.8mm clamp, 6061 alloy, 2x6mm spacers included
|
|---|---|
|
Saddle
|
SDG I-Fly 2.0 I-Beam, high-density PU foam, Cordura sides
|
|
Headset
|
Onoff Mercurium, 41x30.15x7x45°x45° ACB sealed bearings, geometry kit cups (+/-2° head angle adjustment), external diameter 56mm
|
|
Seatpost
|
SDG Micro I-Beam SP-751 Alloy, 300mm, micro-adjustment
|
|
Handlebar
|
OnOff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 780mm, 9° backsweep, 5° upsweep, 31.8mm clamping diameter
|
|
Brake lever
|
Shimano Zee
|
|
Brakes
|
Shimano ZEE BR-M640
314 ** g
Hydraulic disc brake
4 piston
|
|
H03A Resin D03S Resin |
|
|
Crankset
|
Shimano Zee M640, 165mm
|
|---|---|
|
Shifter
|
Shimano Zee M640 10-speed
|
|
Chain guide
|
e*thirteen LG1 with bashguard, stealth idler
|
|
Bottom bracket
|
Shimano 73mm BSA
|
|
Chain
|
Shimano CN-HG54
273 g
|
|
|
|
|
Rear derailleur
|
Shimano Zee RD-M640-SS
275 g
SS
10s
|
|
28T(DH spec) |
|
|
Cassette
|
Shimano Deore CS-HG500-10
|
|
Frame
|
Aluminum
|
|---|---|
|
Front suspension
|
Fox 40 Float Factory
|
|
Rear suspension
|
Fox DHX2 Performance Elite
|
|
Rims
|
Mavic DeeMax DH Tubeless, 28mm internal width, hookless, Maxtal aluminum, 28 hole
|
|---|---|
|
Tires
|
Maxxis Minion DHR II 2.4", Super Tacky compound, wire bead front and rear
|
|
Spokes
|
Mavic stainless steel
|
|
Rear hub
|
Mavic 20x110mm front, 12x150mm IST-4 QRM rear
|
|
Front hub
|
Mavic 20x110mm front, 12x150mm IST-4 QRM rear
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
400,0
|
400,0
|
400,0
|
400,0
|
|
b
Seat tube angle
|
73,5º
|
73,5º
|
73,5º
|
73,5º
|
|
c
Top tube length
|
575,0
|
600,0
|
622,0
|
647,0
|
|
d
Head tube length
|
112,0
|
112,0
|
122,0
|
122,0
|
|
e
Head tube angle
|
63,0º
|
63,0º
|
63,0º
|
63,0º
|
|
f
Rake
|
-
|
-
|
-
|
-
|
|
g
Trail
|
-
|
-
|
-
|
-
|
|
h
Wheelbase
|
1,2e3
|
1225,0
|
1250,0
|
1280,0
|
|
i
Chainstay length
|
445,0
|
445,0
|
445,0
|
445,0
|
|
j
Bottom bracket drop
|
-
|
-
|
-
|
-
|
|
k
Stack height
|
597,0
|
597,0
|
606,0
|
606,0
|
|
l
Reach
|
397,0
|
422,0
|
442,0
|
468,0
|
|
m
Standover height
|
-
|
-
|
-
|
-
|
|
x
Bottom bracket height
|
-
|
-
|
-
|
-
|
|
y
Front center
|
-
|
-
|
-
|
-
|
