Groupset
Shimano Saint
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Front travel
203mm
Rear travel
200mm

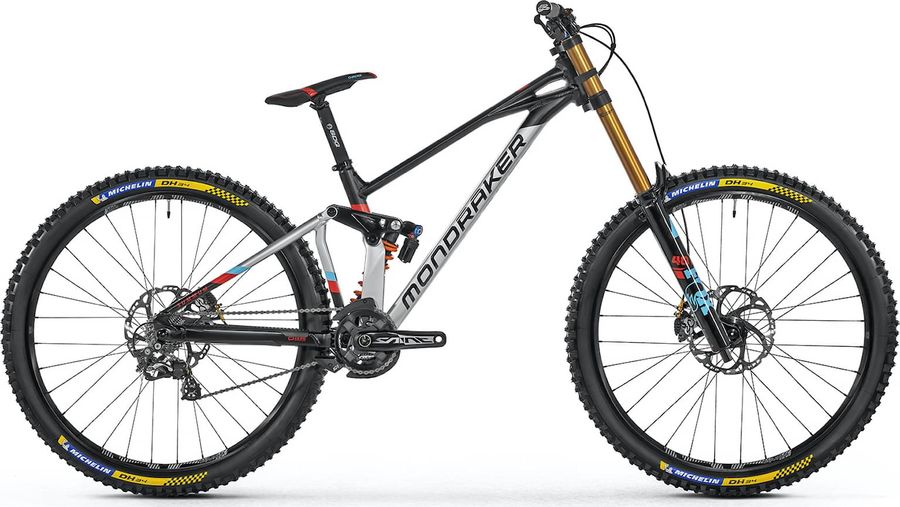

About the Mondraker Summum RR 29 2021
The Mondraker Summum RR 29 2021 is a Full suspension Downhill Mountain Bike with a alloy frame. Equipped with a Shimano Saint drivetrain of 10 gears (1x10). Its features include boost 110 , hydraulic disc brakes, and tubeless ready.
Features
Boost 110
More info
Boost 110
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tubeless ready
More info
Tubeless ready
Specifications
|
Grip
|
Renthal, double lock-on, kevlar compound, 130mm
|
|---|
|
Steam
|
ONOFF Krypton DH CNC Integrated FG, 25-30mm adjustable length, 31.8mm barbore, 6061 alloy, 2x6mm spacer
|
|---|---|
|
Saddle
|
SDG I-Fly 2.0 I-Beam, high-density PU foam, Cordura sides
|
|
Headset
|
ONOFF Mercurium 1.5 ZS for 1-1/8" steerer tube, 41x30.15x7x45°x45° ACB sealed bearings, geometry kit cups, external diameter 56mm
|
|
Seatpost
|
SDG Micro I-Beam SP-951 Carbon, length 300mm, micro-adjustment
|
|
Handlebar
|
Renthal Fatbar series 7 alloy, rise: 30mm, width: 780mm, 7° backsweep, 5° upsweep, 31.8mm barbore
|
|
Brake lever
|
Shimano Saint, ergonomic antiskid lever with servo wave, free stroke and tool less reach adjust
|
|
Brakes
|
Shimano Saint BR-M820
438 (BL-M820) g
Hydraulic disc brake
4 piston
|
|
H03A Resin SM-RT86 |
|
|
Crankset
|
Shimano Saint M825 HOLLOWTECH II, reinforced steel axle, 165mm
|
|---|---|
|
Shifter
|
Shimano Saint SL-M820 10-speed, low friction multi bearing, instant release, multi release, 2-way release
|
|
Chain guide
|
e*thirteen LG1+ Race Carbon, IFD DMB (direct mount bashguard) Gen2 Stealth idler, aluminum hardware, adjustable/replaceable lower armature, polycarbonate, adjustable upper slider
|
|
Bottom bracket
|
83mm BSA
|
|
Chain
|
Shimano CN-HG95
273 g
|
|
|
|
|
Rear derailleur
|
Shimano RD-M820-SS
280 (w/o mode converter) g
SS
10s
|
|
|
|
|
Cassette
|
Shimano Deore CS-HG500-10
|
|
Frame
|
Aluminum
|
|---|---|
|
Front suspension
|
Fox 40 Float Factory
|
|
Rear suspension
|
Fox DHX2 Factory
|
|
Rims
|
e*thirteen LG1 Plus DH, IW29 hookless, 6069 welded aluminum, 30mm internal width, tubeless ready, 32 hole
|
|---|---|
|
Tires
|
Michelin DH34 29"x2.4", tubeless ready, Magi-X DH compound, double-reinforced DH shield casing, wire bead
|
|
Spokes
|
e*thirteen custom Hive triple-butted black alloy, alloy nipples, nipple washers
|
|
Rear hub
|
Front: e*thirteen Boost 20x110mm, triple-sealed, fully machined aluminum, IS 6-bolt, Rear: e*thirteen Superboost 12x157mm, triple-sealed, fully machined aluminum with 6-degree engagement, IS 6-bolt
|
|
Front hub
|
Front: e*thirteen Boost 20x110mm, triple-sealed, fully machined aluminum, IS 6-bolt, Rear: e*thirteen Superboost 12x157mm, triple-sealed, fully machined aluminum with 6-degree engagement, IS 6-bolt
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
400,0
|
400,0
|
400,0
|
400,0
|
|
b
Seat tube angle
|
77,0º
|
77,0º
|
77,0º
|
77,0º
|
|
c
Top tube length
|
573,0
|
593,0
|
618,0
|
643,0
|
|
d
Head tube length
|
112,0
|
112,0
|
112,0
|
112,0
|
|
e
Head tube angle
|
63,5º
|
63,5º
|
63,5º
|
63,5º
|
|
f
Rake
|
-
|
-
|
-
|
-
|
|
g
Trail
|
-
|
-
|
-
|
-
|
|
h
Wheelbase
|
1260,0
|
1270,0
|
1295,0
|
1320,0
|
|
i
Chainstay length
|
450,0
|
450,0
|
450,0
|
450,0
|
|
j
Bottom bracket drop
|
24,0
|
24,0
|
24,0
|
24,0
|
|
k
Stack height
|
632,0
|
632,0
|
632,0
|
632,0
|
|
l
Reach
|
430,0
|
450,0
|
475,0
|
500,0
|
|
m
Standover height
|
-
|
-
|
-
|
-
|
|
x
Bottom bracket height
|
350,0
|
350,0
|
350,0
|
350,0
|
|
y
Front center
|
-
|
-
|
-
|
-
|
