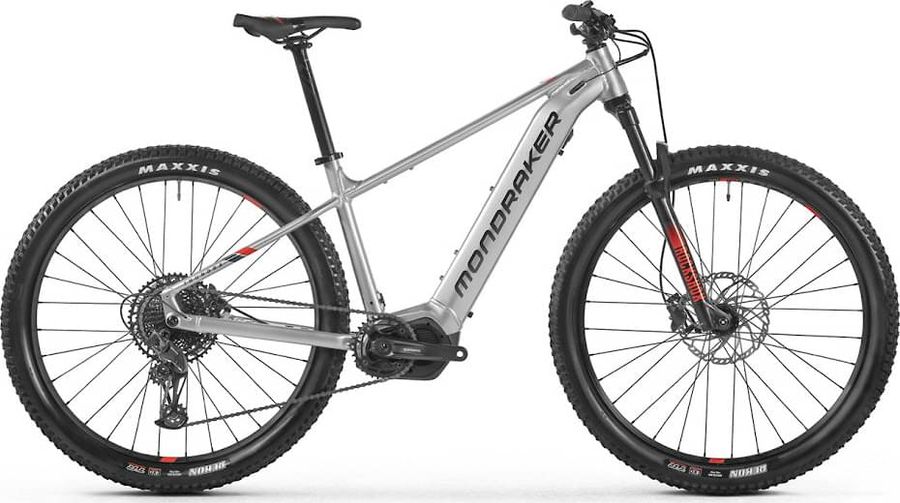

Mondraker Thundra 2021
The Mondraker Thundra 2021 is an electric-bike. E-bikes are bicycles with a battery-powered assist that comes via pedaling, so when you push the pedals a motor engages and gives you a boost.
E-Bike
Groupset
SRAM SX Eagle
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Weight
22 kg
Front travel
120mm
About the Mondraker Thundra 2021
The Mondraker Thundra 2021 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a SRAM SX Eagle drivetrain of 12 gears (1x12). Its features include boost 110 , boost 148, and hydraulic disc brakes. The bike weighs approximately 22 kg.
Features
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tubeless ready
More info
Tubeless ready
Specifications
|
Grip
|
Onoff Twin, single lock-on, 135mm length
|
|---|
|
Steam
|
Onoff Sulfur FG, 6061 forged alloy, 30mm length, 31.8mm bar clamp, 0° rise
|
|---|---|
|
Saddle
|
Mondraker e-MTB custom
|
|
Battery
|
Simplo, integrated, non-removable, Optional external battery: Simplo 360 Wh
|
|
Headset
|
Onoff Saturn, sealed angular contact bearings
|
|
Seatpost
|
Onoff Sulfur 0-R, 6061 T6 3D forged alloy, 400mm length
|
|
Handlebar
|
Onoff Sulfur 1.0, double-butted 6061 alloy, 20mm rise, 780mm width, 9° backsweep, 5° upsweep, 31.8mm clamp diameter
|
|
Brake lever
|
Shimano MT201, tooled reach adjust
|
|
Brakes
|
Shimano BR-MT200
Hydraulic disc brake
2 piston
|
|
BL-MT200 SM-RT26* |
|
|
Crankset
|
Shimano STEPS E8000, 165mm length
|
|---|---|
|
Motor
|
Shimano STEPS E7000
|
|
Shifter
|
SRAM SX Eagle, 12-speed, X-ACTUATION 1:1, single click
|
|
Chain
|
SRAM SX Eagle
|
|
Cassette
|
SRAM PG-1210 Eagle
12s
|
|
|
|
|
Rear derailleur
|
SRAM SX Eagle
12s
|
|
|
|
|
Frame
|
Aluminum
|
|---|---|
|
Front suspension
|
RockShox Recon Silver RL
Solo Air
|
|
|
|
|
Rims
|
MDK-HP1, 30mm (29") or 35mm (27.5+) internal width, tubeless ready, 32 hole
|
|---|---|
|
Tires
|
Maxxis Rekon, Dual Compound, EXO, TR, 60 TPI, folding bead, 2.6" (29") or 2.8" (27.5+) width
|
|
Spokes
|
CN round stainless steel
|
|
Rear hub
|
Formula, sealed bearings, DC711 15x110mm Boost front, EHL148 12x148mm Boost rear with HG driver
|
|
Front hub
|
Formula, sealed bearings, DC711 15x110mm Boost front, EHL148 12x148mm Boost rear with HG driver
|
Geometry
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
|
a
Seat tube length
|
380,0
|
390,0
|
430,0
|
470,0
|
510,0
|
|
b
Seat tube angle
|
73,5º
|
73,5º
|
73,5º
|
73,5º
|
73,5º
|
|
c
Top tube length
|
597,0
|
612,0
|
642,0
|
667,0
|
697,0
|
|
d
Head tube length
|
110,0
|
110,0
|
110,0
|
130,0
|
130,0
|
|
e
Head tube angle
|
69,0º
|
69,0º
|
69,0º
|
69,0º
|
69,0º
|
|
f
Rake
|
-
|
-
|
-
|
-
|
-
|
|
g
Trail
|
-
|
-
|
-
|
-
|
-
|
|
h
Wheelbase
|
1135,0
|
1150,0
|
1180,0
|
1207,0
|
1237,0
|
|
i
Chainstay length
|
452,0
|
452,0
|
452,0
|
452,0
|
452,0
|
|
j
Bottom bracket drop
|
38,0
|
51,0
|
51,0
|
51,0
|
51,0
|
|
k
Stack height
|
637,0
|
637,0
|
637,0
|
655,0
|
655,0
|
|
l
Reach
|
407,0
|
422,0
|
452,0
|
477,0
|
502,0
|
|
m
Standover height
|
-
|
-
|
-
|
-
|
-
|
|
x
Bottom bracket height
|
317,0
|
304,0
|
304,0
|
304,0
|
304,0
|
|
y
Front center
|
-
|
-
|
-
|
-
|
-
|
