Mondraker Thundra + 2020

E-Bike
MTB Trail
Groupset
SRAM SX Eagle
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Weight
21,7 kg
Front travel
120mm

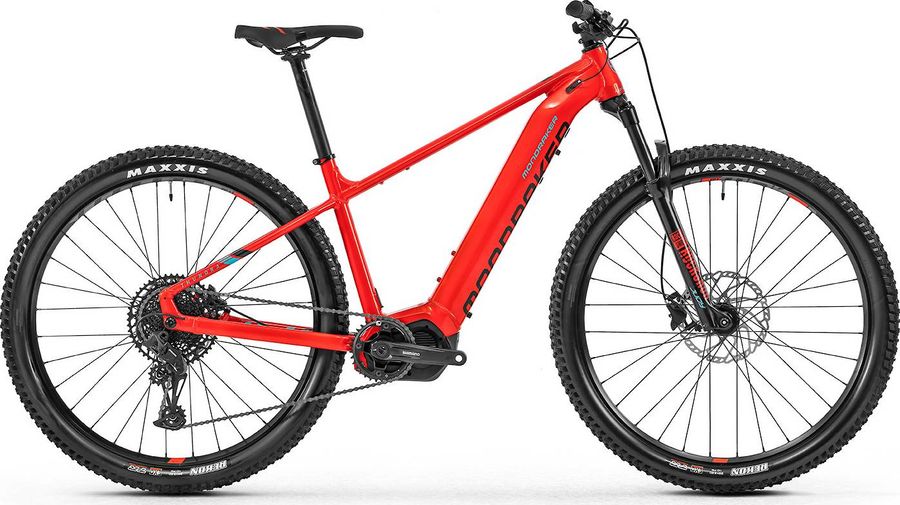

Mondraker Thundra + 2020

About the Mondraker Thundra + 2020

The Mondraker Thundra + 2020 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a SRAM SX Eagle drivetrain of 12 gears (1x12). Its features include boost 148, hydraulic disc brakes, and tubeless ready. The bike weighs approximately 21,7 kg.

Features

The Mondraker Thundra + 2020 has 3 features listed below.
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Onoff Shaper 130mm
Components
Steam
Onoff Sulfur FG 30mm reach, 6061 forged alloy, 35mm clamp
Saddle
Mondraker e-MTB
Battery
Simplo internal 630Wh integrated battery and Simplo external 360Wh battery
Headset
Onoff Saturn, ACB sealed bearings, top 41x30.2x7x45°x45°, bottom 51.9x40x8x45°x45°
Seatpost
Onoff Sulfur 0-R, 6061 T6 Alloy, 3D forged, 400mm
Handlebar
OnOff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 780mm, 9° backsweep, 5° upsweep, 31.8mm clamp
Brake lever
Shimano MT201
Brakes
Shimano BR-MT200 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT200
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT201
BL-MT200
Recommended disc brake rotor
SM-RT10*
SM-RT26*
Drivetrain
Crankset
Shimano E8000, 165mm
Motor
Shimano E7000
Shifter
SRAM SX Eagle 12-speed
Chain
SRAM SX Eagle
Cassette
SRAM PG-1210 Eagle 12s
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1210-A1
Name
PG-1210 Eagle™ Cassette
Speed
12s
Technology cassete
PG
Rear derailleur
SRAM SX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-SX-1-A1
Name
SX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Aluminum
Front suspension
RockShox Judy Silver TK Solo Air
Color
Diffusion Black, Gloss Black
Damper type
TurnKey
fork offset
42mm (27.5"), 51mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-JDYS-TK-A2
Name
Judy Silver TK
Spring
Solo Air
Travel (mm)
100mm, 120mm, 130mm, 80mm
Upper tube type
30mm straight wall steel
Wheel size
27.5", 29"
Wheels
Rims
MDK-HP1 27.5, 35mm internal width, tubeless ready, 32 hole
Tires
Maxxis Rekon+ 27.5x2.8" tubeless ready, Dual compound, EXO, 60TPI, folding bead front and rear
Spokes
CN stainless steel
Rear hub
MDK DC711 looseball Boost front and EHL148 sealed bearing rear
Front hub
MDK DC711 looseball Boost front and EHL148 sealed bearing rear

Geometry

Size SM MD LG XL
a
Seat tube length
390,0
430,0
470,0
510,0
b
Seat tube angle
73,5º
73,5º
73,5º
73,5º
c
Top tube length
622,0
652,0
677,0
707,0
d
Head tube length
110,0
110,0
130,0
130,0
e
Head tube angle
69,0º
69,0º
69,0º
69,0º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1160,0
1190,0
1217,0
1247,0
i
Chainstay length
462,0
462,0
462,0
462,0
j
Bottom bracket drop
51,0
51,0
51,0
51,0
k
Stack height
647,0
647,0
665,0
665,0
l
Reach
432,0
462,0
487,0
512,0
m
Standover height
-
-
-
-
x
Bottom bracket height
304,0
304,0
304,0
304,0
y
Front center
-
-
-
-
