Niner AIR 9 RDO - 4-STAR SHIMANO XT 2020

MTB Cross Country
Groupset
Shimano XT
Frame material
Carbon
Wheel size
29"
Suspension type
Hardtail
Weight
10,21 kg
Front travel
100mm
Niner AIR 9 RDO - 4-STAR SHIMANO XT 2020

About the Niner AIR 9 RDO - 4-STAR SHIMANO XT 2020

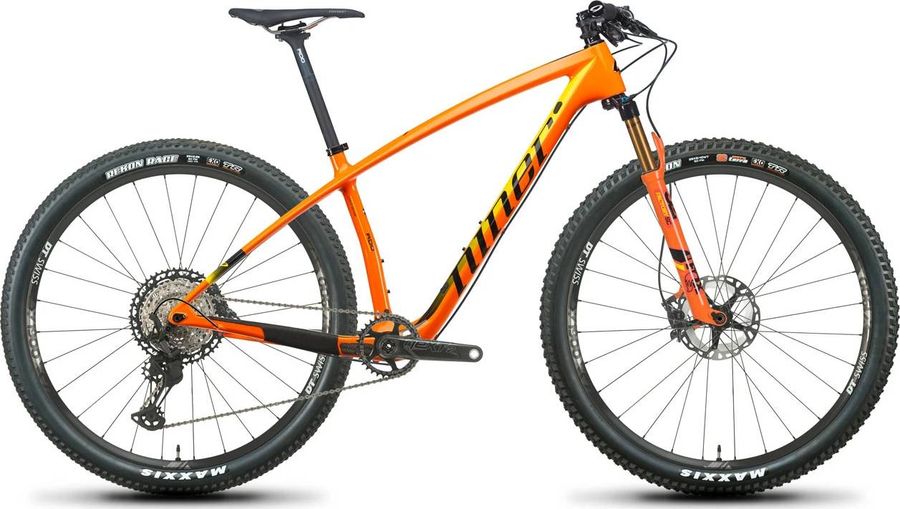

The Niner AIR 9 RDO - 4-STAR SHIMANO XT 2020 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a Shimano XT drivetrain of 12 gears (1x12). Its features include internal routing, boost 110 , and boost 148. The bike weighs approximately 10,21 kg.

Features

The Niner AIR 9 RDO - 4-STAR SHIMANO XT 2020 has 5 features listed below.
cabeamento-interno
Internal routing More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info

Specifications

Acessories
Grip
NINER GRRRIPS L/O
Components
Steam
NINER RDO STEM, NINER GRAPHIC
Saddle
NINER CUSTOM WITH CRN-TI RAILS, EMBOSSED NINER GRAPHIC
Headset
NINER INTEGRATED SHIS DESCRIPTION IS42/28.6|IS52/40
Seatpost
NINER RDO SEAT POST, 370MM, NINER GRAPHIC
Handlebar
NINER FLAT TOP RDO, 780MM, NINER GRAPHIC
Discs
180/160 SRAM CENTERLINE ROTORS
Brake lever
SHIMANO XT M8100
Brakes
Shimano Deore XT BR-M8100 392 (BL-M8100) g Hydraulic disc brake 2 piston
Average weight (g)
392 (BL-M8100)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M8100
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
J03A Resin (w/ fin)
Pad option
J04C Metal (w/ fin)
Pad standard
G03A Resin (w/o fin)
Pad standard
G04S Metal (w/o fin)
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended brake lever
BL-M8100
BL-T8100
Drivetrain
Crankset
RACEFACE NEXT R CARBON 12SP, 32T
Shifter
SHIMANO XT M8100 12SP I-SPEC EV
Bottom bracket
73mm PF30 BB Shell (Adapters Required For BSA Type BBs)
Rear derailleur
Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g)
284
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M8100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Chain
Shimano CN-M8100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M8100
Pin link plate
Gray
Roller link plate
Chromizing
Type
HG 12-speed
Cassette
Shimano Deore XT CS-M8100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
2
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M8100-12
Steel gear finish
Plated
Steel gear pieces
10
Type
HYPERGLIDE+
Weights
10-45T: 461g
10-51T: 470g
Frameset
Frame
NINER RDO CARBON FIBER, INTERNAL CABLE ROUTING, PF30 BB, SINGLE-SPEED COMPATIBLE.
Front suspension
Fox 32 SC Float Factory Kashima
Wheels
Rims
Boost 148x12mm
Tires
MAXXIS REKON 3C/EXO/TR 29x2.4 WT FRONT
