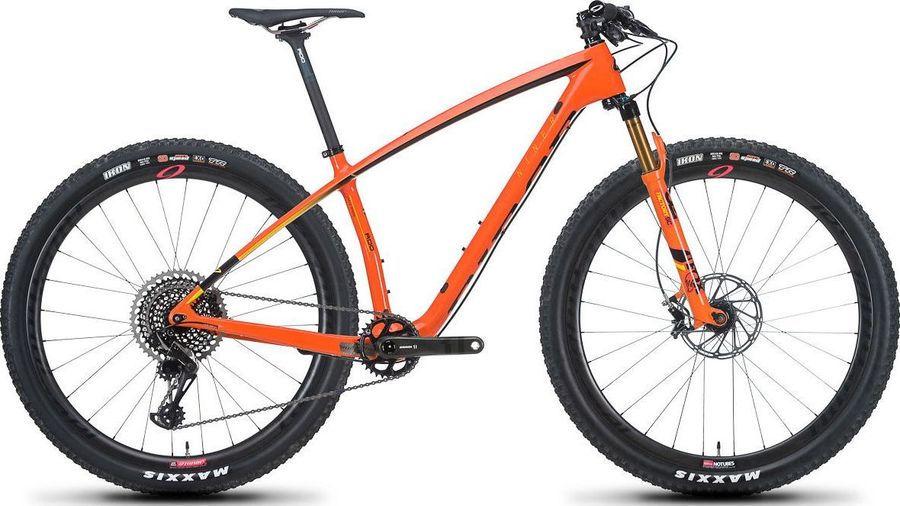

Niner AIR 9 RDO 5-STAR 2018

MTB Cross Country
Groupset
SRAM X01
Frame material
Carbon
Wheel size
29"
Suspension type
Hardtail
Front travel
100mm
Niner AIR 9 RDO 5-STAR 2018

About the Niner AIR 9 RDO 5-STAR 2018

The Niner AIR 9 RDO 5-STAR 2018 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM X01 drivetrain of 12 gears (1x12). Its features include boost 110 , boost 148, and hydraulic disc brakes.

Features

The Niner AIR 9 RDO 5-STAR 2018 has 4 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info

Specifications

Acessories
Grip
NINER GRRRIPS L/O
Components
Steam
NINER RDO STEM, NINER GRAPHIC
Saddle
NINER CUSTOM WITH CRN-TI RAILS, EMBOSSED NINER GRAPHIC
Headset
NINER INTEGRATED SHIS DESCRIPTION IS42/28.6|IS52/40
Seatpost
NINER RDO SEAT POST, 400MM, NINER GRAPHIC
Handlebar
NINER FLAT TOP RDO, 780MM, NINER GRAPHIC
Brake lever
SRAM GUIDE RSC
Brakes
SRAM Guide RSC Hydraulic 377 g
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black Anodized, Silver
Model
DB-GDE-RSC-B1
Name
Guide RSC
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
377
Drivetrain
Crankset
SRAM X1 EAGLE CARBON PF30 32T CNC RING
Shifter
SRAM X01 EAGLE 12SP
Bottom bracket
SRAM%20PF30
Chain
SRAM X01 Eagle 239 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Silver
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Chrome Plated
Model
CN-EAGL-X01-A1
Name
X01 Eagle Chain
Outer link finish
Nickel
Pin variant
Hollow Pin
Weight based on
114 links
Weight
239
Cassette
SRAM XG-1295 Eagle 12s 350 g
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1295-B1
Name
XG-1295 Eagle Cassette
Speed
12s
Technology cassete
XG
Weight
350
Rear derailleur
SRAM X01 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar, Red
Max tooth
52
Model
RD-X0-1-B2
Name
X01 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
AIR 9 RDO - NINER RED/CARBON OR CMYK OR ORANGE
Front suspension
Fox 32 SC Float Factory Kashima
Wheels
Rims
Niner Carbon XC
Tires
MAXXIS IKON 3C/EXO/TR 2.35 FRONT
Spokes
32 count front and rear
Rear hub
DT Swiss 350, 15mm x 110mm, 12mm x 148mm, XD Driver
Front hub
DT Swiss 350, 15mm x 110mm, 12mm x 148mm, XD Driver

Geometry

Size XS SM MD LG XL
a
Seat tube length
356,0
394,0
419,0
483,0
533,0
b
Seat tube angle
73,0º
73,0º
73,0º
73,0º
73,0º
c
Top tube length
582,0
597,0
617,0
637,0
657,0
d
Head tube length
95,0
100,0
110,0
120,0
130,0
e
Head tube angle
70,0º
70,0º
70,0º
70,0º
70,0º
f
Rake
53,0
54,0
52,0
53,0
53,0
g
Trail
80,0
79,0
81,0
80,0
80,0
h
Wheelbase
1081,0
1097,0
1117,0
1138,0
1158,0
i
Chainstay length
438,0
438,0
438,0
438,0
438,0
j
Bottom bracket drop
58,0
58,0
58,0
58,0
58,0
k
Stack height
609,0
614,0
624,0
633,0
642,0
l
Reach
400,0
413,0
431,0
448,0
465,0
m
Standover height
684,0
721,0
744,0
793,0
839,0
x
Bottom bracket height
316,0
316,0
316,0
316,0
316,0
y
Front center
650,0
665,0
685,0
706,0
726,0
