Niner JET 9 RDO - 3-STAR SHIMANO XT 2020

MTB Trail
Groupset
Shimano XT
Frame material
Carbon
Wheel size
27,5" / 29"
Suspension type
Full suspension
Weight
13,06 kg
Front travel
130mm
Rear travel
120mm

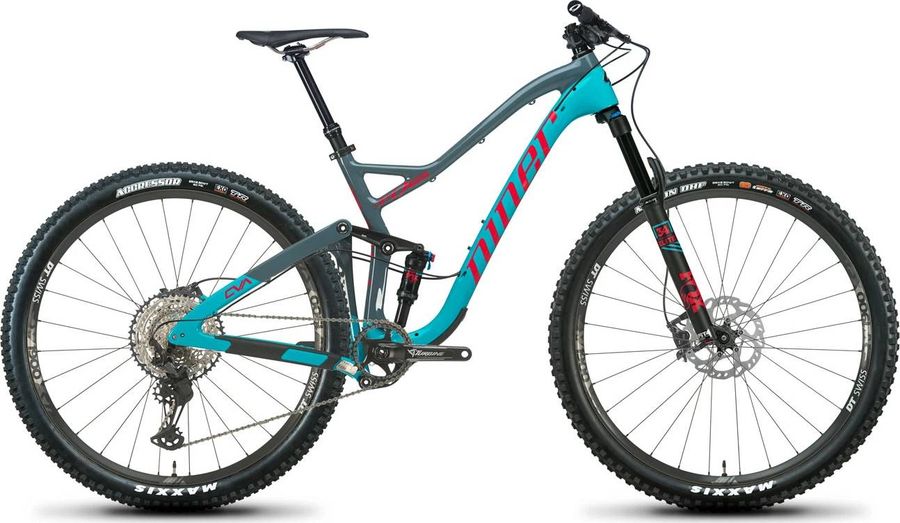

Niner JET 9 RDO - 3-STAR SHIMANO XT 2020

About the Niner JET 9 RDO - 3-STAR SHIMANO XT 2020

The Niner JET 9 RDO - 3-STAR SHIMANO XT 2020 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a Shimano XT drivetrain of 12 gears (1x12). Its features include internal routing, dropper seatpost, and boost 110 . The bike weighs approximately 13,06 kg.

Features

The Niner JET 9 RDO - 3-STAR SHIMANO XT 2020 has 5 features listed below.
cabeamento-interno
Internal routing More info
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
NINER GRRRIPS L/O TRAIL
Components
Steam
RACE FACE AEFFECT R 40MM, 35MM CLAMP
Saddle
NINER CUSTOM TR WITH CR-MO RAILS, PRINTED NINER GRAPHIC
Headset
NINER INTERNAL ZS SHIS DESCRIPTION ZS44/28.6|ZS56/40
Seatpost
KS LEV SI (XS/S-100MM, M/L/XL-150MM)
Handlebar
RACE FACE AEFFECT R 780MM WIDE, 20MM RISE, 35MM CLAMP
Discs
180/180MM SM-RT70 ROTORS
Brake lever
SHIMANO XT M8100
Brakes
Shimano Deore XT BR-M8100 392 (BL-M8100) g Hydraulic disc brake 2 piston
Average weight (g)
392 (BL-M8100)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M8100
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
J03A Resin (w/ fin)
Pad option
J04C Metal (w/ fin)
Pad standard
G03A Resin (w/o fin)
Pad standard
G04S Metal (w/o fin)
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended brake lever
BL-M8100
BL-T8100
Drivetrain
Crankset
RACEFACE TURBINE 12SP, 32T
Shifter
SHIMANO XT M8100 12SP I-SPEC EV
Bottom bracket
73mm BSA Threaded BB
Rear derailleur
Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g)
284
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M8100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Cassette
Shimano SLX CS-M7100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
1
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M7100-12
Steel gear finish
Plated
Steel gear pieces
11
Type
HYPERGLIDE+
Weights
10-45T: 513g
10-51T: 534g
Chain
Shimano CN-M7100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M7100
Pin link plate
Gray
Roller link plate
SIL-TEC
Type
HG 12-speed
Frameset
Frame
Niner RDO carbon fiber, CVA suspension, 120mm travel, aluminum linkage, Enduro Max pivot bearings, Full Sleeve internal cable routing
Rear suspension
Fox Float DPS Performance EVOL
Front suspension
Fox 34 Float Performance Elite
Wheels
Rims
Boost 148x12mm
Tires
MAXXIS MINION DHF 3C/EXO/TR 2.5 WT FRONT
