BikeWise

Niner RIP 9 RDO 29 4-Star PUSH Edition 2018

MTB Enduro
Groupset
SRAM X01
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
160mm
Rear travel
150mm

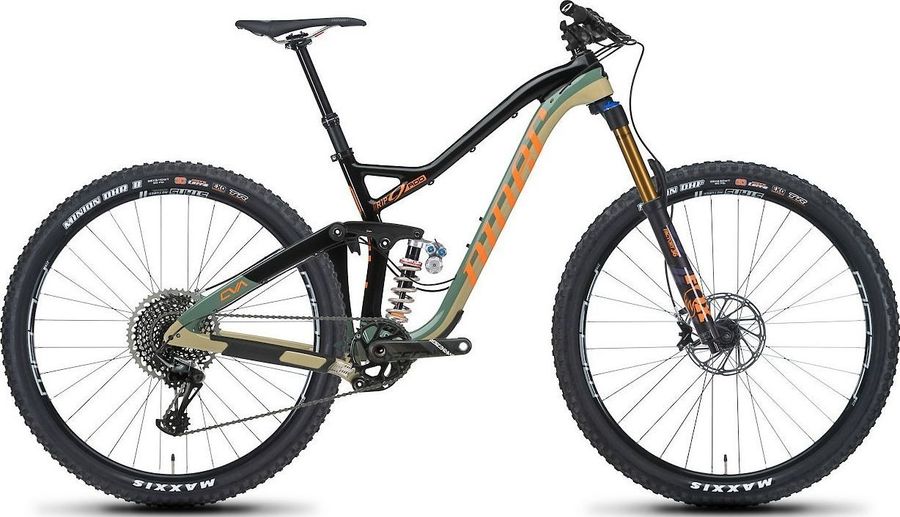

Niner RIP 9 RDO 29 4-Star PUSH Edition 2018

About the Niner RIP 9 RDO 29 4-Star PUSH Edition 2018

The Niner RIP 9 RDO 29 4-Star PUSH Edition 2018 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM X01 drivetrain of 12 gears (1x12). Its features include dropper seatpost, hydraulic disc brakes, and tubeless ready.

Features

The Niner RIP 9 RDO 29 4-Star PUSH Edition 2018 has 3 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Niner Grrrips, nylon flanges
Components
Steam
Race Face Turbine Basic 35, 50mm length
Saddle
Niner Custom TR, carbon-titanium rails, custom Niner graphic
Headset
Niner headset, zero-stack SHIS, ZS44/28.6, ZS56/40
Seatpost
KS Lev Integra
Handlebar
Race Face SixC 35, 820mm width
Brake lever
SRAM Guide RSC
Brakes
SRAM Guide RSC Hydraulic 377 g
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black Anodized, Silver
Model
DB-GDE-RSC-B1
Name
Guide RSC
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
377
Drivetrain
Crankset
SRAM Decendent Eagle
Shifter
SRAM Eagle X01, 12-speed
Bottom bracket
External, threaded
Chain
SRAM X01 Eagle 239 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Silver
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Chrome Plated
Model
CN-EAGL-X01-A1
Name
X01 Eagle Chain
Outer link finish
Nickel
Pin variant
Hollow Pin
Weight based on
114 links
Weight
239
Cassette
SRAM XG-1295 Eagle 12s 350 g
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1295-B1
Name
XG-1295 Eagle Cassette
Speed
12s
Technology cassete
XG
Weight
350
Rear derailleur
SRAM X01 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar, Red
Max tooth
52
Model
RD-X0-1-B2
Name
X01 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
Carbon Fiber
Rear suspension
PUSH Eleven Six
Front suspension
Fox 36 Float Factory Kashima
Wheels
Rims
Stan's NoTubes Neo/ZTR Flow MK3
Tires
Front: Maxxis Minion DHF 2.5" 3C EXO, tubeless ready, Rear: Maxxis Minion DHR II 2.4" 3C EXO, tubeless ready
Rear hub
Stan's NoTubes Neo/ZTR Flow MK3
Front hub
Stan's NoTubes Neo/ZTR Flow MK3

Geometry

Size SM MD LG XL
a
Seat tube length
406,0
432,0
483,0
533,0
b
Seat tube angle
75,5º
75,5º
75,5º
75,5º
c
Top tube length
585,0
600,0
624,0
650,0
d
Head tube length
95,0
100,0
110,0
125,0
e
Head tube angle
67,0º
67,0º
67,0º
67,0º
f
Rake
53,0
52,0
52,0
52,0
g
Trail
101,0
102,0
102,0
102,0
h
Wheelbase
1169,0
1184,0
1210,0
1238,0
i
Chainstay length
445,0
445,0
445,0
445,0
j
Bottom bracket drop
29,0
29,0
29,0
29,0
k
Stack height
630,0
635,0
644,0
658,0
l
Reach
421,0
435,0
457,0
479,0
m
Standover height
714,0
738,0
767,0
801,0
x
Bottom bracket height
345,0
345,0
345,0
345,0
y
Front center
726,0
741,0
767,0
794,0
