Niner RKT 9 RDO 3-STAR 2018

MTB Trail
Groupset
SRAM GX
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
120mm
Rear travel
90mm

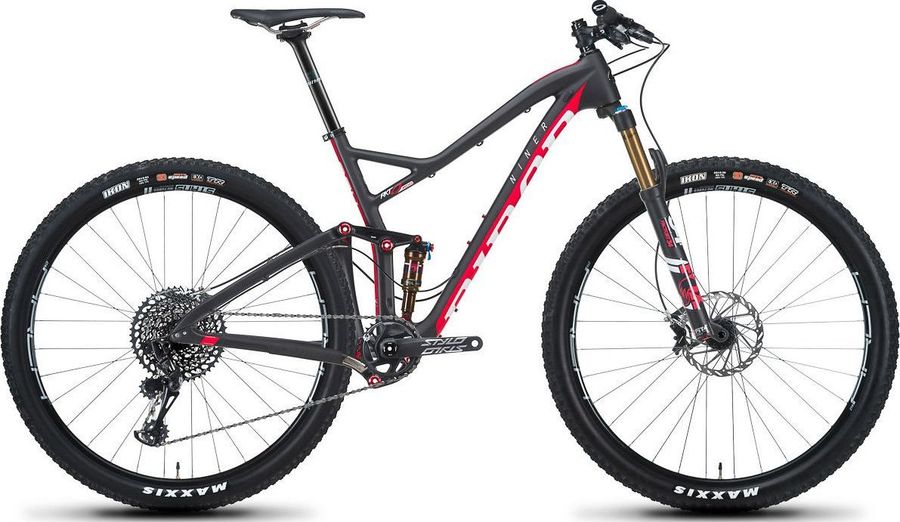

Niner RKT 9 RDO 3-STAR 2018

About the Niner RKT 9 RDO 3-STAR 2018

The Niner RKT 9 RDO 3-STAR 2018 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM GX drivetrain of 12 gears (1x12). Its features include boost 110 , boost 148, and hydraulic disc brakes.

Features

The Niner RKT 9 RDO 3-STAR 2018 has 3 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
NINER GRRRIPS L/O NYLON
Components
Steam
NINER ALLOY STEM, NINER GRAPHIC
Saddle
NINER CUSTOM WITH CR-MO RAILS, EMBOSSED NINER GRAPHIC
Headset
NINER INTEGRATED SHIS DESCRIPTION IS42/28.6|IS52/40
Seatpost
NINER CARBON SEAT POST, 370MM, NINER GRAPHIC
Handlebar
NINER FLAT TOP RDO, 780MM, NINER GRAPHIC
Brake lever
SRAM GUIDE R
Brakes
SRAM Guide R Hydraulic 392 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-R-B1
Name
Guide R
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
392
Drivetrain
Crankset
SRAM STYLO 7K EAGLE PF30 32T
Shifter
SRAM GX EAGLE 12SP
Bottom bracket
SRAM%20PF30
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
RKT 9 RDO - TEAM RED OR BLUE/GREEN
Front suspension
Fox 34 Float Factory Kashima
Rear suspension
Fox Float DPS Factory Kashima
Wheels
Rims
Stan's NoTubes Neo/ZTR Arch MK3
Tires
MAXXIS IKON 3C/EXO/TR 2.35 FRONT
Rear hub
Stan's NoTubes Neo/ZTR Arch MK3, 15mm x 110mm, 12mm x 148mm
Front hub
Stan's NoTubes Neo/ZTR Arch MK3, 15mm x 110mm, 12mm x 148mm

Geometry

Size XS SM MD LG XL
a
Seat tube length
381,0
406,0
457,0
509,0
559,0
b
Seat tube angle
73,5º
73,5º
73,5º
73,5º
73,5º
c
Top tube length
557,0
572,0
592,0
612,0
632,0
d
Head tube length
95,0
100,0
110,0
120,0
130,0
e
Head tube angle
69,5º
70,0º
70,0º
70,0º
70,0º
f
Rake
46,0
46,0
46,0
46,0
45,0
g
Trail
91,0
87,0
87,0
87,0
88,0
h
Wheelbase
1078,0
1088,0
1109,0
1130,0
1150,0
i
Chainstay length
437,0
437,0
437,0
437,0
437,0
j
Bottom bracket drop
28,0
28,0
28,0
28,0
28,0
k
Stack height
588,0
595,0
605,0
615,0
624,0
l
Reach
381,0
394,0
411,0
429,0
446,0
m
Standover height
701,0
708,0
737,0
771,0
810,0
x
Bottom bracket height
346,0
346,0
346,0
346,0
346,0
y
Front center
643,0
652,0
673,0
694,0
714,0
