BikeWise

Niner RKT 9 RDO 4-STAR SHIMANO XT 2022

MTB Cross Country
Groupset
Shimano XT
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
10,93 kg
Front travel
120mm
Rear travel
90mm

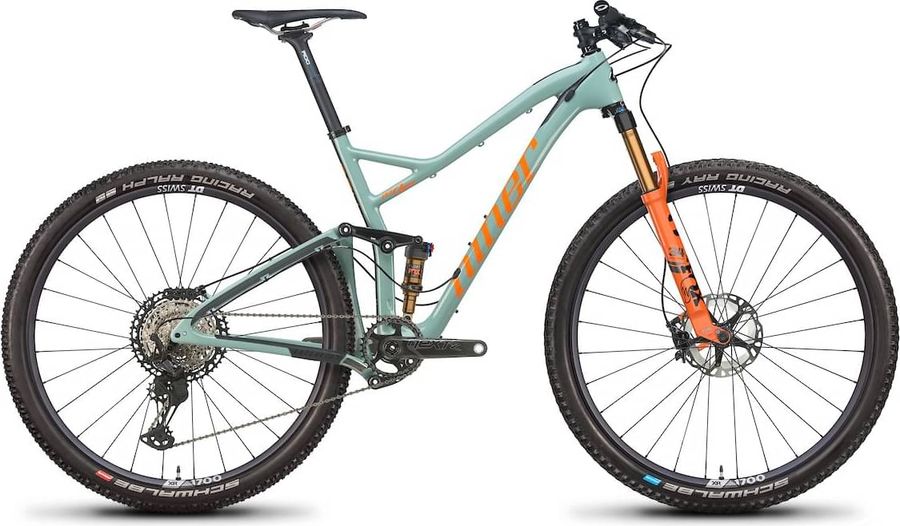

Niner RKT 9 RDO 4-STAR SHIMANO XT 2022

About the Niner RKT 9 RDO 4-STAR SHIMANO XT 2022

The Niner RKT 9 RDO 4-STAR SHIMANO XT 2022 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a Shimano XT drivetrain of 12 gears (1x12). Its features include boost 110 e hydraulic disc brakes. The bike weighs approximately 10,93 kg.

Features

The Niner RKT 9 RDO 4-STAR SHIMANO XT 2022 has 2 features listed below.
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
NINER GRRRIPS L/O NYLON SOFT COMPOUND
Components
Steam
NINER RDO STEM, NINER GRAPHIC
Saddle
NINER CUSTOM TR WITH CRN-TI RAILS, EMBOSSED NINER GRAPHIC
Headset
NINER INTEGRATED SHIS DESCRIPTION IS42/28.6|IS52/40
Seatpost
NINER RDO SEAT POST, 370MM, NINER GRAPHIC
Handlebar
NINER FLAT TOP RDO, 780MM, NINER GRAPHIC
Discs
180/160 MT800 ROTORS
Brake lever
SHIMANO XT M8100
Brakes
Shimano Deore XT BR-M8100 392 (BL-M8100) g Hydraulic disc brake 2 piston
Average weight (g)
392 (BL-M8100)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M8100
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
J03A Resin (w/ fin)
Pad option
J04C Metal (w/ fin)
Pad standard
G03A Resin (w/o fin)
Pad standard
G04S Metal (w/o fin)
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended brake lever
BL-M8100
BL-T8100
Drivetrain
Crankset
RACEFACE NEXT R CARBON 12SP, 32T
Shifter
SHIMANO XT M8100 12SP I-SPEC EV
Bottom bracket
RACEFACE PF30
Rear derailleur
Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g)
284
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M8100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Chain
Shimano CN-M8100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M8100
Pin link plate
Gray
Roller link plate
Chromizing
Type
HG 12-speed
Cassette
Shimano Deore XT CS-M8100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
2
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M8100-12
Steel gear finish
Plated
Steel gear pieces
10
Type
HYPERGLIDE+
Weights
10-45T: 461g
10-51T: 470g
Frameset
Frame
NINER RDO CARBON FIBER, 90MM CVA SUSPENSION, ALUMINUM ROCKER LINKS, ENDURO MAX PIVOT BEARINGS
Front suspension
Fox 34 Float Factory Kashima
Rear suspension
Fox Float DPS Factory Kashima
Wheels
Rims
DT SWISS XR 1700 SPLINE 25, CENTERLOCK, 110X15MM
Tires
SCHWALBE RACING RAY EVO SUPER TERRAIN TLE ADDIX SPEEDGRIP 2.35

Geometry

Size XS SM MD LG XL
a
Seat tube length
-
-
-
-
-
b
Seat tube angle
-
-
-
-
-
c
Top tube length
-
-
-
-
-
d
Head tube length
-
-
-
-
-
e
Head tube angle
-
-
-
-
-
f
Rake
-
-
-
-
-
g
Trail
-
-
-
-
-
h
Wheelbase
-
-
-
-
-
i
Chainstay length
-
-
-
-
-
j
Bottom bracket drop
-
-
-
-
-
k
Stack height
-
-
-
-
-
l
Reach
-
-
-
-
-
m
Standover height
-
-
-
-
-
x
Bottom bracket height
-
-
-
-
-
y
Front center
-
-
-
-
-
