Niner SIR 9 2-STAR SRAM SX EAGLE 2022

MTB Trail
Groupset
SRAM SX Eagle
Frame material
Steel
Wheel size
29"
Suspension type
Hardtail
Weight
13,06 kg
Front travel
120mm

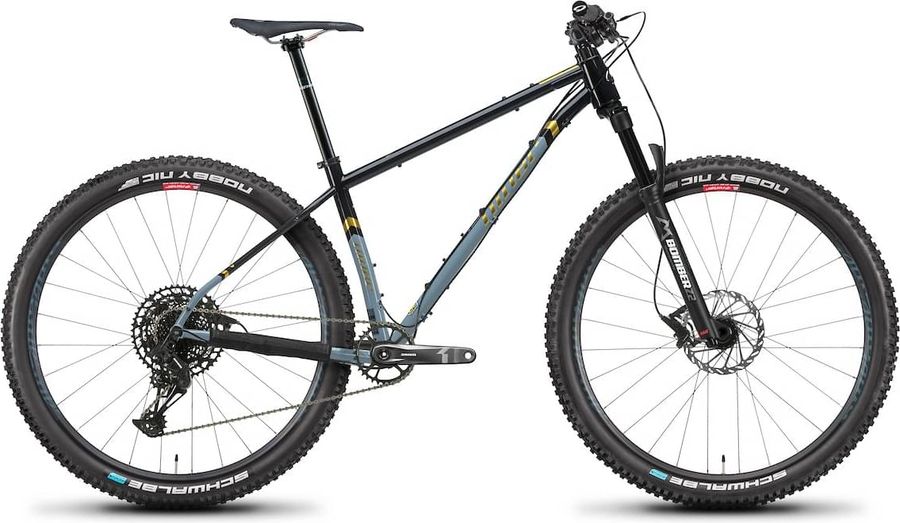

Niner SIR 9 2-STAR SRAM SX EAGLE 2022

About the Niner SIR 9 2-STAR SRAM SX EAGLE 2022

The Niner SIR 9 2-STAR SRAM SX EAGLE 2022 is a Hardtail Trail Mountain Bike with a steel frame. Equipped with a SRAM SX Eagle drivetrain of 12 gears (1x12). Its features include boost 110 , boost 148, and e-thru axle. The bike weighs approximately 13,06 kg.

Features

The Niner SIR 9 2-STAR SRAM SX EAGLE 2022 has 4 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
eixo-e-thru
E-THRU AXLE More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
NINER GRRRIPS L/O NYLON SOFT COMPOUND
Components
Steam
RACE FACE AEFFECT R 40MM, 35MM CLAMP
Saddle
NINER CUSTOM TR WITH CrMo RAILS, EMBOSSED NINER GRAPHIC
Headset
NINER INTERNAL ZS SHIS DESCRIPTION ZS44/28.6|ZS56/40
Seatpost
Niner alloy, 370MM
Handlebar
RACE FACE AEFFECT R 780MM WIDE, 20MM RISE, 35MM CLAMP
Discs
SRAM LEVEL
Brake lever
SRAM LEVEL
Brakes
SRAM Level Hydraulic 430 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black
Model
DB-LVL-A1
Name
Level
Orientation
L/F, L/R, R/F, R/R
Pad type disc
Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm G2 Rotor (TARGET)
Weight
430
Drivetrain
Crankset
SRAM X1 1K EAGLE DUB, 32T (S/M/L - 170MM, XL - 175MM)
Shifter
SRAM SX EAGLE 12SP
Bottom bracket
SRAM DUB PF30
Chain
SRAM SX Eagle
Cassette
SRAM PG-1210 Eagle 12s
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1210-A1
Name
PG-1210 Eagle™ Cassette
Speed
12s
Technology cassete
PG
Rear derailleur
SRAM SX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-SX-1-A1
Name
SX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
HAND WELDED REYNOLDS 853 STEEL; EXTERNAL CABLE ROUTING; INTEGRATED BOTTLE, BAG, RACK AND FENDER MOUNTS; 12X148 THRU AXLE
Front suspension
Marzocchi Bomber Z2 Rail
Wheels
Rims
NINER ALLOY, 30MM INTERNAL WIDTH, 110X15MM
Tires
SCHWALBE NOBBY NIC EVO SUPER TRAIL TLE ADDIX SPEEDGRIP 2.6

Geometry

Size SM MD LG XL
a
Seat tube length
-
-
-
-
b
Seat tube angle
-
-
-
-
c
Top tube length
-
-
-
-
d
Head tube length
-
-
-
-
e
Head tube angle
-
-
-
-
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
-
-
-
-
i
Chainstay length
-
-
-
-
j
Bottom bracket drop
-
-
-
-
k
Stack height
-
-
-
-
l
Reach
-
-
-
-
m
Standover height
-
-
-
-
x
Bottom bracket height
-
-
-
-
y
Front center
-
-
-
-
