BikeWise

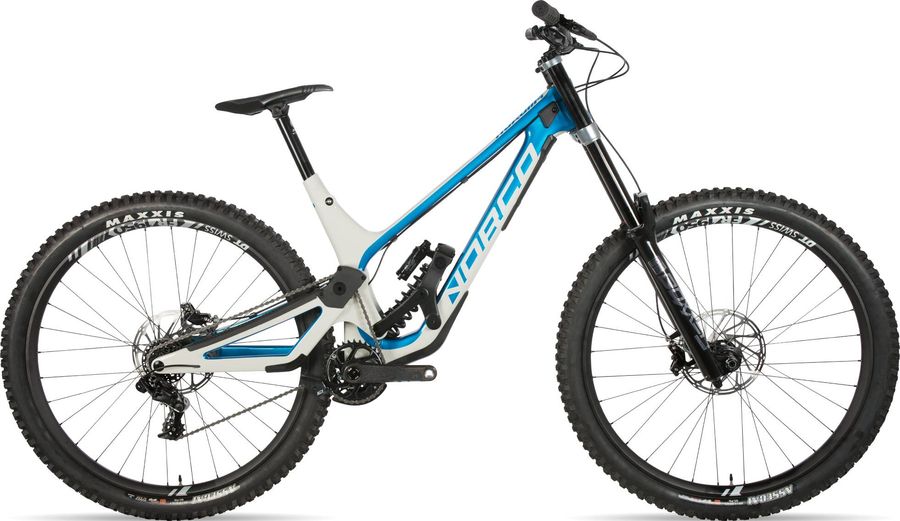

Norco Aurum HSP C1 27.5 2020

MTB Downhill
Groupset
SRAM X01
Wheel size
27,5"
Suspension type
Full suspension
Norco Aurum HSP C1 27.5 2020

About the Norco Aurum HSP C1 27.5 2020

The Norco Aurum HSP C1 27.5 2020 is a Full suspension Downhill Mountain Bike. Equipped with a SRAM X01 drivetrain of 11 gears (1x11). Its features include hydraulic disc brakes.

Features

The Norco Aurum HSP C1 27.5 2020 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Deity KnuckleDuster, Lock On
Components
Steam
Deity Intake Direct Mount
Saddle
Deity Side Track I Beam DH
Headset
Cane Creek 40 Series, sealed bearing
Seatpost
SDG I beam, 350mm
Handlebar
Deity Race Point, 810mm, 38mm rise (M/L, L/XL), 35mm bore
Brakes
SRAM Code RSC Hydraulic
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black Anodized, Black Anodized w/Rainbow Hardware
Model
DB-CODE-RSC-A1
Name
Code RSC
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Drivetrain
Crankset
SRAM X01 DH DUB, 165mm, X Sync 34T
Shifter
SRAM X01 DH. 7 speed
Bottom bracket
SRAM PressFit DUB
Chain tensioner
e*thirteen LG 1+
Cassette
SRAM X01 DH
Chain
SRAM PC-1110 259 g
Chain connector
PowerLock
Chain length links
114 links
Color inner link
Grey
Color outer link
Grey
Compat speed
11s
Inner link finish
Polished
Model
CN-1110-A1
Name
PC-1110 Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
259
Rear derailleur
SRAM X01 DH 10s, 7s
Cable pull ratio
Exact actuation
Cage
Medium, Short
Cage material
Aluminum
Color
Black, Red
Max tooth
26, 28
Model
RD-X0-1DH-A2
Name
X01 DH X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
10s, 7s
Frameset
Frame
High Single Pivot DH Frame 29 M/L, L/XL, 27.5 XS/S, S/M, M/L, L/XL
Rear suspension
RockShox Super Deluxe Ultimate DH
Body eyelet
Bearing, No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
RC
Eye to eye stroke
225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 250x67.5, 250x70, 250x72.5, 250x75
Model
RS-SDLX-ULDH-B2
Name
Super Deluxe Ultimate DH
Rebound tune
H, L, M
Shaft eyelet
Bearing, No Bushing, Standard, Trunnion
Weight based on
485g (250x75, 2 tokens, MM tune, standard/standard)
Front suspension
RockShox Boxxer Ultimate DebonAir 2565 g
Color
BoXXer Red, Gloss Black
Damper type
Charger 2.1 RC2
fork offset
36mm (27.5"), 46mm (27.5"), 46mm (29"), 56mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
200mm
Model
FS-BXR-ULT-C2
Name
BoXXer Ultimate
Spring
DebonAir
Travel (mm)
180mm, 190mm, 200mm
Upper tube type
35mm straight wall aluminum
Weight based on
27.5" BOOST, 200mm, Maxle Stealth, Short Crown
Weight
2565
Wheel size
27.5", 29"
Wheels
Rims
29 - DT Swiss FR 1950 wheelset, 27.5 - DT Swiss FR560, 30 mm inner, DT 240 Hubs, DT Competition spokes
Tires
Maxxis Assegai 2.5" 3C/MaxxGrip/DH/TR

Geometry

Size XS SM/MD MD/LG XL
a
Seat tube length
400,0
415,0
430,0
445,0
b
Seat tube angle
74,4º
73,5º
72,7º
71,8º
c
Top tube length
571,0
603,0
635,0
667,0
d
Head tube length
100,0
107,5
115,0
122,5
e
Head tube angle
62,5º
62,5º
62,5º
62,5º
f
Rake
52,0
52,0
52,0
52,0
g
Trail
126,0
126,0
126,0
126,0
h
Wheelbase
1169,0
1203,0
1237,0
1270,0
i
Chainstay length
400,0
410,0
420,0
430,0
j
Bottom bracket drop
5,0
5,0
5,0
5,0
k
Stack height
592,0
599,0
606,0
612,0
l
Reach
405,0
425,0
445,0
465,0
m
Standover height
631,0
632,0
635,0
638,0
x
Bottom bracket height
350,0
250,0
350,0
350,0
y
Front center
769,0
793,0
817,0
840,0
