BikeWise

Norco Bigfoot 1 Suspension 2020

MTB Fatbike
Groupset
SRAM NX Eagle
Frame material
Alloy
Wheel size
26"
Suspension type
Hardtail
Front travel
100mm

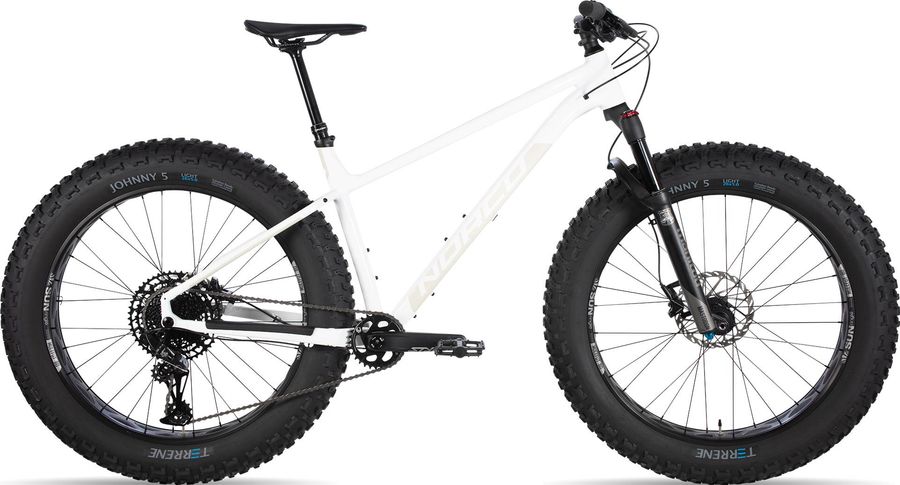

Norco Bigfoot 1 Suspension 2020

About the Norco Bigfoot 1 Suspension 2020

The Norco Bigfoot 1 Suspension 2020 is a Hardtail Fatbike Mountain Bike with a alloy frame. Equipped with a SRAM NX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost e hydraulic disc brakes.

Features

The Norco Bigfoot 1 Suspension 2020 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
VP lock on
Pedals
VP Flat, Nylon
Components
Steam
Norco 6061 Alloy, 60mm, 35mm bore
Saddle
Fizik Taiga
Headset
FSA Internal
Seatpost
X-Fusion Manic dropper
Handlebar
Norco 6061 DB Alloy, 780mm
Brakes
SRAM Level Hydraulic 430 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black
Model
DB-LVL-A1
Name
Level
Orientation
L/F, L/R, R/F, R/R
Pad type disc
Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm G2 Rotor (TARGET)
Weight
430
Drivetrain
Crankset
Truvativ Stylo 6K Eagle, DUB FAT5, 30T
Shifter
SRAM NX Eagle, 12 speed
Bottom bracket
DUB, BSA 100mm
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Rear derailleur
SRAM NX Eagle 12s 339 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-NX-1-B1
Name
NX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Weight
339
Cassette
SRAM PG-1230 Eagle 12s 615 g
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1230-A1
Name
PG-1230 Eagle Cassette
Speed
12s
Technology cassete
PG
Weight
615
Frameset
Frame
Double Butted X6 Aluminum
Front suspension
Manitou Mastodon Pro
Wheels
Rims
Sun Mulefut 80SL, 26"
Tires
Terrene Johnnny 5, 26x5.0”
Rear hub
KT-M9CR, 12x197mm
Front hub
KT M9CF, Sealed, 15x150mm

Geometry

Size SM MD LG XL
a
Seat tube length
395,0
420,0
450,0
490,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
c
Top tube length
577,0
610,0
643,0
675,0
d
Head tube length
100,0
110,0
120,0
130,0
e
Head tube angle
68,5º
68,5º
68,5º
68,5º
f
Rake
51,0
51,0
51,0
51,0
g
Trail
94,0
94,0
94,0
94,0
h
Wheelbase
1114,0
1148,0
1181,0
1215,0
i
Chainstay length
435,0
435,0
435,0
435,0
j
Bottom bracket drop
50,0
50,0
50,0
50,0
k
Stack height
596,0
605,0
614,0
624,0
l
Reach
405,0
435,0
465,0
495,0
m
Standover height
658,0
659,0
678,0
698,0
x
Bottom bracket height
328,0
328,0
328,0
328,0
y
Front center
684,0
718,0
751,0
784,0
