Norco Bigfoot VLT 1 2019

E-Bike
MTB Fatbike
Groupset
SRAM NX Eagle
Frame material
Alloy
Wheel size
26"
Suspension type
Hardtail
Front travel
100mm

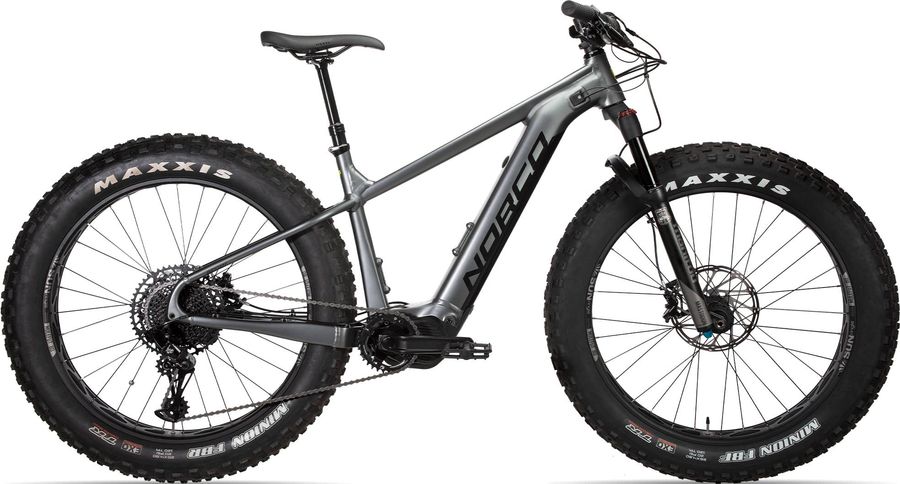

Norco Bigfoot VLT 1 2019

About the Norco Bigfoot VLT 1 2019

The Norco Bigfoot VLT 1 2019 is a Hardtail Fatbike Mountain Bike with a alloy frame. Equipped with a SRAM NX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost e hydraulic disc brakes.

Features

The Norco Bigfoot VLT 1 2019 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
VP, Lock-On
Pedals
VP Nylon Flat Pedals, 9/16"
Components
Steam
6061 Aluminum, 50mm Length, 31.8mm Clamp Diameter
Saddle
WTB Volt Sport
Battery
In-Tube Battery, 630Wh Capacity
Headset
ACROS AZ-44BL Block Lock Upper, AZ-56 Lower, Zero Stack Internal
Seatpost
TranzX YSP18JL Stealth Dropper, 100mm (S) | 125mm (M) | 130mm (L/XL) Travel, 31.6mm, 1x Lever
Handlebar
Norco 6061 Aluminum, 800mm Wide, 20mm Rise, 35mm Diameter
Brake lever
SRAM Guide T
Brakes
SRAM Guide T Hydraulic
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-T-A1
Name
Guide T
Orientation
L/F, L/R, R/F, R/R
Pad type disc
Steel-backed organic
Drivetrain
Crankset
Samox Offset Fat Crank, 165mm
Motor
Shimano STEPS E8000
Shifter
SRAM NX Eagle, 12 Speed
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Rear derailleur
SRAM NX Eagle 12s 339 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-NX-1-B1
Name
NX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Weight
339
Cassette
SRAM PG-1230 Eagle 12s 615 g
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1230-A1
Name
PG-1230 Eagle Cassette
Speed
12s
Technology cassete
PG
Weight
615
Frameset
Frame
Norco Bigfoot VLT, Aluminum, Boost 12x197mm Dropouts, Shimano Motor Mount
Front suspension
Manitou Mastodon Pro
Wheels
Rims
Sun Mulefüt 80SL, 32 Hole, 80mm Internal Width
Tires
Maxxis Minion FBF, 26x4.8", EXO/TR, Folding
Rear hub
KT-M9CR, 12x197mm
Front hub
KT-M9CF, 15x150mm

Geometry

Size SM MD LG XL
a
Seat tube length
405,0
435,0
470,0
510,0
b
Seat tube angle
75,0º
75,0º
75,0º
75,0º
c
Top tube length
578,0
611,0
643,0
676,0
d
Head tube length
100,0
110,0
120,0
130,0
e
Head tube angle
68,0º
68,0º
68,0º
68,0º
f
Rake
51,0
51,0
51,0
50,0
g
Trail
84,0
84,0
84,0
85,0
h
Wheelbase
1143,0
1177,0
1211,0
1244,0
i
Chainstay length
460,0
460,0
460,0
460,0
j
Bottom bracket drop
60,0
60,0
60,0
60,0
k
Stack height
615,0
624,0
634,0
643,0
l
Reach
415,0
445,0
475,0
505,0
m
Standover height
772,0
768,0
777,0
788,0
x
Bottom bracket height
323,0
323,0
323,0
323,0
y
Front center
690,0
723,0
757,0
791,0
