Norco Bigfoot VLT 1 2020

E-Bike
MTB Fatbike
Groupset
SRAM NX Eagle
Frame material
Alloy
Wheel size
26"
Suspension type
Hardtail
Front travel
100mm

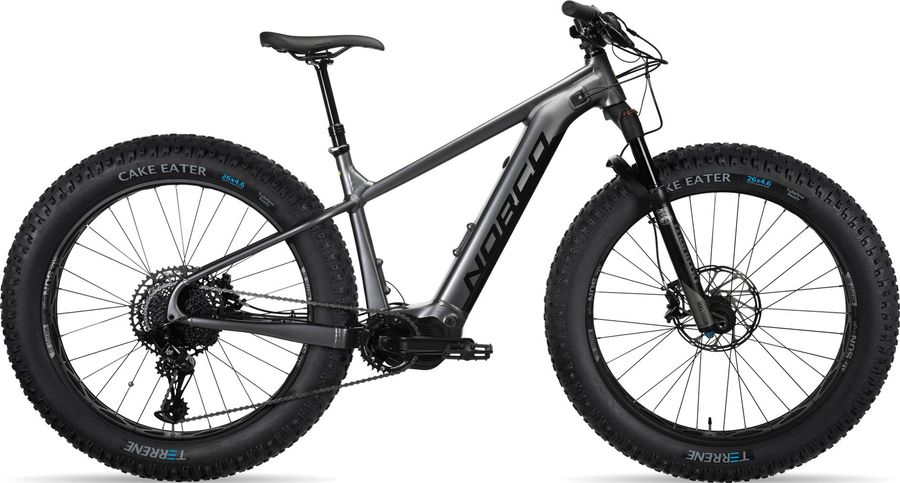

Norco Bigfoot VLT 1 2020

About the Norco Bigfoot VLT 1 2020

The Norco Bigfoot VLT 1 2020 is a Hardtail Fatbike Mountain Bike with a alloy frame. Equipped with a SRAM NX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost e hydraulic disc brakes.

Features

The Norco Bigfoot VLT 1 2020 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
SDG Slater Lock On
Pedals
VP Nylon Flat
Components
Steam
Norco Alloy, 50mm, 35mm bore
Saddle
WTB Volt 250 Sport
Battery
In-Tube 630Wh
Headset
Acros Block Lock, sealed bearing
Seatpost
TranzX Stealth Dropper, 100mm (S) / 125mm (M) / 130mm (L) Travel, 31.6mm, 1x Lever
Handlebar
Norco 6061, 800mm, 20 mm rise, 35mm bore
Brakes
SRAM Guide T Hydraulic
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-T-A1
Name
Guide T
Orientation
L/F, L/R, R/F, R/R
Pad type disc
Steel-backed organic
Drivetrain
Crankset
Samox alloy for E8000, 170mm, Eagle 32T
Motor
Shimano STEPS E-8000
Shifter
SRAM SX Eagle 12 speed, Single Click E-MTB
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Rear derailleur
SRAM NX Eagle 12s 339 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-NX-1-B1
Name
NX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Weight
339
Cassette
SRAM PG-1230 Eagle 12s 615 g
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1230-A1
Name
PG-1230 Eagle Cassette
Speed
12s
Technology cassete
PG
Weight
615
Frameset
Frame
Bigfoot Fat Bike aluminum
Front suspension
Manitou Mastodon Pro
Wheels
Rims
Sun Mulefut 80SL, 80mm wide, 26"
Tires
Terrene Cake Eater, 26 x 4.6, Studdable
Rear hub
KT alloy, sealed bearing, 12x197mm
Front hub
KT alloy, sealed bearing 15x150mm

Geometry

Size SM MD LG XL
a
Seat tube length
405,0
435,0
470,0
510,0
b
Seat tube angle
75,0º
75,0º
75,0º
75,0º
c
Top tube length
578,0
611,0
643,0
676,0
d
Head tube length
100,0
110,0
120,0
130,0
e
Head tube angle
68,0º
68,0º
68,0º
68,0º
f
Rake
51,0
51,0
51,0
51,0
g
Trail
100,0
100,0
100,0
100,0
h
Wheelbase
1143,0
1177,0
1211,0
1244,0
i
Chainstay length
460,0
460,0
460,0
460,0
j
Bottom bracket drop
60,0
60,0
60,0
60,0
k
Stack height
615,0
624,0
634,0
643,0
l
Reach
415,0
445,0
475,0
505,0
m
Standover height
654,0
665,0
691,0
716,0
x
Bottom bracket height
323,0
323,0
323,0
323,0
y
Front center
690,0
723,0
757,0
790,0
