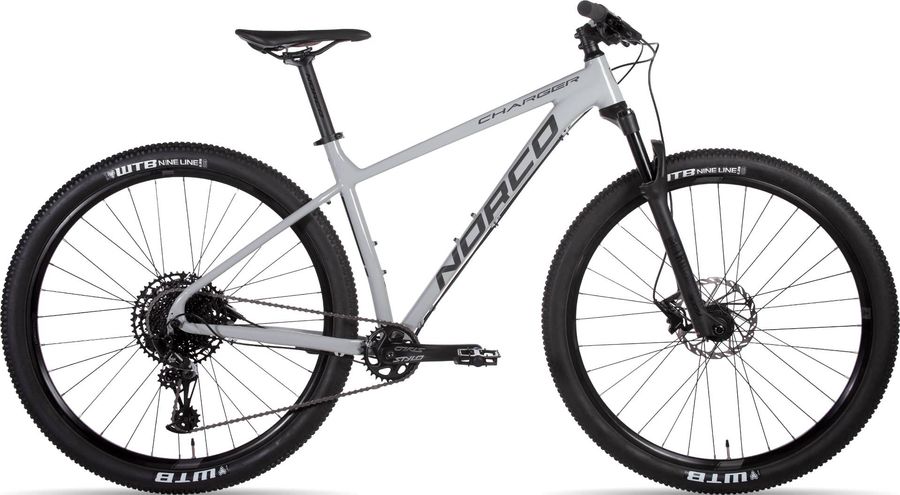

Norco Charger 1 29 2019

MTB Cross Country
Groupset
SRAM NX Eagle
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Front travel
100mm
Norco Charger 1 29 2019

About the Norco Charger 1 29 2019

The Norco Charger 1 29 2019 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a SRAM NX Eagle drivetrain of 12 gears (1x12). Its features include boost 110 e hydraulic disc brakes.

Features

The Norco Charger 1 29 2019 has 2 features listed below.
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Norco, Black
Pedals
Alloy Pedals
Components
Steam
Alloy 60mm/70mm x 31.8
Saddle
Norco XC Saddle
Headset
Angular Sealed Cartridge Bearings - Tapered
Seatpost
Norco Alloy, 31.6mm
Handlebar
X6 Alloy 750mm x 31.8
Brake lever
SRAM Level
Brakes
SRAM Level Hydraulic 430 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black
Model
DB-LVL-A1
Name
Level
Orientation
L/F, L/R, R/F, R/R
Pad type disc
Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm G2 Rotor (TARGET)
Weight
430
Drivetrain
Crankset
Truvativ Stylo 6K, 170mm (XXS/XS/S) | 175mm (M/L/XL), 30T
Shifter
Rear: SRAM NX Eagle, 12 Speed, Front: -
Bottom bracket
Truvativ PowerSpline BB, Threaded BSA 73mm
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Rear derailleur
SRAM NX Eagle 12s 339 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-NX-1-B1
Name
NX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Weight
339
Cassette
SRAM PG-1230 Eagle 12s 615 g
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1230-A1
Name
PG-1230 Eagle Cassette
Speed
12s
Technology cassete
PG
Weight
615
Frameset
Frame
Norco Charger, Aluminum, 9x135mm QR Dropouts
Front suspension
RockShox Judy Gold RL Solo Air
Color
Diffusion Black, Gloss Black
Damper type
Motion Control
fork offset
42mm (27.5"), 51mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-JDYG-RL-A2
Name
Judy Gold RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 80mm
Upper tube type
30mm straight wall aluminum
Wheel size
27.5", 29"
Wheels
Rims
WTB MX21, 32 Hole, 21mm Internal Width
Tires
WTB Nineline, 29x2.25" | WTB Beeline, 27.5x2.25"
Rear hub
Joytech D342TSE Disc, 10x135mm QR
Front hub
Novatec Boost 110mm x 15mm

Geometry

Size SM MD LG XL
a
Seat tube length
430,0
470,0
510,0
550,0
b
Seat tube angle
73,4º
73,0º
72,6º
72,2º
c
Top tube length
586,0
616,0
646,0
676,0
d
Head tube length
100,0
105,0
115,0
125,0
e
Head tube angle
69,75º
70,0º
70,25º
70,5º
f
Rake
48,0
51,0
51,0
51,0
g
Trail
87,0
82,0
80,0
79,0
h
Wheelbase
1099,0
1124,0
1147,0
1169,0
i
Chainstay length
441,0
441,0
441,0
441,0
j
Bottom bracket drop
63,0
63,0
63,0
63,0
k
Stack height
618,0
618,0
629,0
639,0
l
Reach
401,0
426,0
448,0
469,0
m
Standover height
726,0
771,0
780,0
791,0
x
Bottom bracket height
303,0
308,0
308,0
308,0
y
Front center
667,0
690,0
713,0
736,0
