BikeWise

Norco Charger 2 Women 29 2019

Women's Bike
MTB Cross Country
Groupset
SRAM NX
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Front travel
100mm

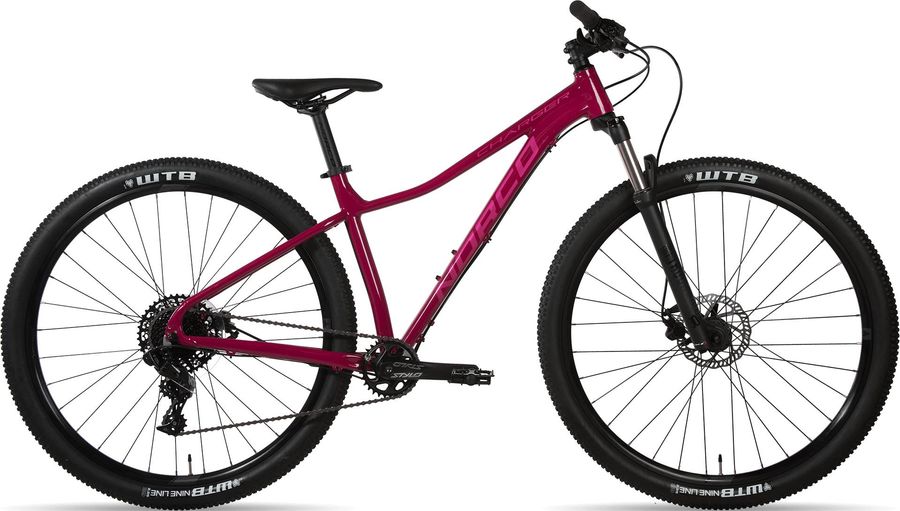

Norco Charger 2 Women 29 2019

About the Norco Charger 2 Women 29 2019

The Norco Charger 2 Women 29 2019 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a SRAM NX drivetrain of 11 gears (1x11). Its features include hydraulic disc brakes.

Features

The Norco Charger 2 Women 29 2019 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Norco, Black
Pedals
Alloy Pedals
Components
Steam
Alloy 60mm/70mm x 31.8
Saddle
Norco XC Saddle
Headset
Angular Sealed Cartridge Bearings - Tapered
Seatpost
Norco Alloy, 31.6mm
Handlebar
X6 Alloy 750mm x 31.8
Brake lever
Tektro HD-M275
Brakes
Tektro HD-M275
Drivetrain
Crankset
Truvativ Stylo 6K, 170mm (XXS/XS/S) | 175mm (M), 30T
Shifter
Rear: SRAM NX, 11 Speed, Front: -
Bottom bracket
Truvativ PowerSpline BB, Threaded BSA 73mm
Rear derailleur
SRAM NX 11s 322 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
42
Model
RD-NX-1-A1
Name
NX 1x11 X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
11s
Weight
322
Cassette
SRAM PG-1130 11s
Cog finish cassete
Black, Silver
Cog sizes
11-26t:11,12,13,14,15,16,17,19,21,23,26
11-28t:11,12,13,14,15,16,17,19,22,25,28
11-32t:11,12,13,14,15,17,19,22,25,28,32
11-36t:11,12,13,15,17,19,22,25,28,32,36
11-42t: 11,13,15,17,19,22,25,28,32,36,42
Gearing
11-26t
11-28t
11-32t
11-36t
11-42t
Model
CS-PG-1130-A1
Name
PG-1130 Cassette
Speed
11s
Technology cassete
PG
Chain
SRAM PC-1110 259 g
Chain connector
PowerLock
Chain length links
114 links
Color inner link
Grey
Color outer link
Grey
Compat speed
11s
Inner link finish
Polished
Model
CN-1110-A1
Name
PC-1110 Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
259
Frameset
Frame
Norco Charger, Aluminum, 9x135mm QR Dropouts
Front suspension
RockShox 30 Silver Coil, Solo Air
Color
Diffusion Black, Gloss Black, Gloss White
fork offset
40mm (26"), 42mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
58, 62
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-30S-TK-A3
Name
30 Silver TK
Spring
Coil, Solo Air
Travel (mm)
100mm, 120mm, 80mm
Upper tube type
30mm straight wall steel
Wheel size
26", 27.5", 29"
Wheels
Rims
WTB MX21, 32 Hole, 21mm Internal Width
Tires
WTB Nineline, 29x2.25" | WTB Beeline, 27.5x2.25"
Rear hub
Joytech D342TSE Disc, 10x135mm QR
Front hub
Joytech D341DSE Alloy Disc QR

Geometry

Size SM MD
a
Seat tube length
430,0
470,0
b
Seat tube angle
73,4º
73,0º
c
Top tube length
586,0
616,0
d
Head tube length
100,0
105,0
e
Head tube angle
69,75º
70,0º
f
Rake
48,0
51,0
g
Trail
87,0
82,0
h
Wheelbase
1099,0
1124,0
i
Chainstay length
441,0
441,0
j
Bottom bracket drop
63,0
63,0
k
Stack height
618,0
618,0
l
Reach
401,0
426,0
m
Standover height
726,0
771,0
x
Bottom bracket height
303,0
308,0
y
Front center
667,0
690,0
