Groupset
SRAM NX
Frame material
Alloy
Wheel size
26" / 27,5"
Suspension type
Hardtail
Front travel
120mm

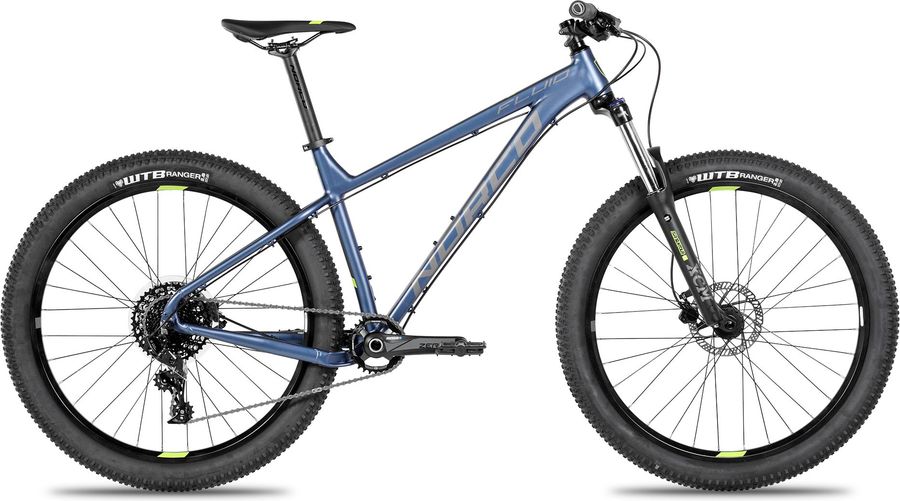

About the Norco Fluid 3 HT 2018
The Norco Fluid 3 HT 2018 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a SRAM NX drivetrain of 11 gears (1x11). Its features include boost 110 e hydraulic disc brakes.
Features
Boost 110
More info
Boost 110
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Grip
|
Norco Grip
|
|---|---|
|
Pedals
|
VP Nylon Flat Pedal
|
|
Steam
|
Alloy 60mm x 31.8
|
|---|---|
|
Saddle
|
Norco XC Saddle
|
|
Headset
|
Angular Sealed Cartridge Bearings - Tapered
|
|
Seatpost
|
Norco Alloy 31.6
|
|
Handlebar
|
X6 Alloy 750mm x 31.8
|
|
Brake lever
|
Tektro HD-M285
|
|
Brakes
|
Tektro HD-M285
|
|
Crankset
|
SR Suntour Zeron Boost 30T
|
|---|---|
|
Shifter
|
SRAM NX 11spd
|
|
Bottom bracket
|
SR Suntour BB24
|
|
Rear derailleur
|
SRAM NX
11s
322 g
|
|
|
|
|
Cassette
|
SRAM PG-1130
11s
|
|
11-28t:11,12,13,14,15,16,17,19,22,25,28 11-32t:11,12,13,14,15,17,19,22,25,28,32 11-36t:11,12,13,15,17,19,22,25,28,32,36 11-42t: 11,13,15,17,19,22,25,28,32,36,42 11-28t 11-32t 11-36t 11-42t |
|
|
Chain
|
SRAM PC-1110
259 g
|
|
|
|
|
Frame
|
Fluid 6061 Alloy XC Frame w/DB TT & DT
|
|---|---|
|
Front suspension
|
SR Suntour XCM
|
|
Rims
|
Alloy XD26 30mm 650B Plus 32H
|
|---|---|
|
Tires
|
WTB Ranger 27.5"x 2.8"
|
|
Rear hub
|
Joytech Boost RR QR 32H
|
|
Front hub
|
Novatec Boost 110mm x 15mm
|
Geometry
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
|
a
Seat tube length
|
380,0
|
410,0
|
440,0
|
470,0
|
500,0
|
|
b
Seat tube angle
|
73,5º
|
73,1º
|
72,7º
|
72,3º
|
71,9º
|
|
c
Top tube length
|
552,0
|
582,0
|
612,0
|
642,0
|
672,0
|
|
d
Head tube length
|
110,0
|
110,0
|
100,0
|
110,0
|
120,0
|
|
e
Head tube angle
|
67,5º
|
67,5º
|
67,5º
|
67,5º
|
67,5º
|
|
f
Rake
|
42,0
|
43,0
|
51,0
|
51,0
|
51,0
|
|
g
Trail
|
97,0
|
96,0
|
92,0
|
92,0
|
92,0
|
|
h
Wheelbase
|
1069,0
|
1095,0
|
1139,0
|
1165,0
|
1191,0
|
|
i
Chainstay length
|
417,0
|
417,0
|
427,0
|
427,0
|
427,0
|
|
j
Bottom bracket drop
|
41,0
|
41,0
|
45,0
|
45,0
|
45,0
|
|
k
Stack height
|
595,0
|
595,0
|
608,0
|
617,0
|
627,0
|
|
l
Reach
|
375,0
|
400,0
|
422,0
|
444,0
|
466,0
|
|
m
Standover height
|
715,0
|
714,0
|
770,0
|
781,0
|
792,0
|
|
x
Bottom bracket height
|
311,0
|
311,0
|
316,0
|
316,0
|
316,0
|
|
y
Front center
|
655,0
|
681,0
|
716,0
|
742,0
|
768,0
|
