Norco Fluid FS 2 27.5 2021

MTB Trail
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
130mm
Rear travel
120mm

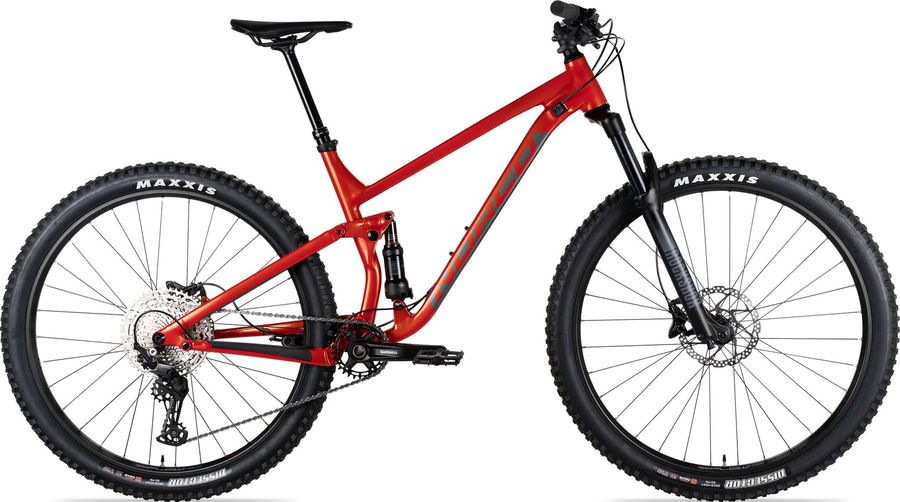

Norco Fluid FS 2 27.5 2021

About the Norco Fluid FS 2 27.5 2021

The Norco Fluid FS 2 27.5 2021 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Norco Fluid FS 2 27.5 2021 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
VP Lock-On
Pedals
VP Nylon Flat
Components
Steam
6061 Alloy, 50mm Length, 35mm Clamp
Saddle
Norco XC
Headset
Sealed Bearing, Tapered
Seatpost
X-Fusion Manic Dropper, 31.6mm, 125mm (s), 150mm (M), 170mm (L, XL)
Handlebar
TranzX 6061 Butted Alloy, 780mm, 20mm Rise
Discs
Shimano SMRT54, 180mm
Brake lever
Shimano BR-MT420
Brakes
Shimano BR-MT420 Hydraulic disc brake 4 piston
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT420
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
D03S Resin
Pad standard
D02S Metal
Pad mount
Split pin
Piston
4
Piston material
Resin
Recommended brake lever
BL-MT401
BL-MT402-3A
Recommended disc brake rotor
SM-RT30 *
SM-RT54 *
SM-RT56 *
SM-RT64
Drivetrain
Crankset
Shimano Deore FC-MT510-1, 32T, 170mm (XXS - S), 175mm (M - XL)
Shifter
Shimano Deore SL-M6100-R I-Spec EV
Bottom bracket
Shimano Cartridge Bearing, BSA Threaded
Chain
Shimano CN-M6100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M6100
Pin link plate
Gray
Roller link plate
Brown
Type
HG 12-speed
Cassette
Shimano Deore CS-M6100-12 HYPERGLIDE+
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M6100-12
Steel gear finish
Plated
Steel gear pieces
12
Type
HYPERGLIDE+
Rear derailleur
Shimano Deore RD-M6100 SGS 12s
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M6100-SGS
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Frameset
Frame
6061 Alloy, 120mm Travel
Front suspension
RockShox 35 Silver R Coil
Color
Diffusion Black, Gloss Black
fork offset
37mm (27.5"), 44mm (27.5"), 44mm (29"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-35S-R-A1
Name
35 Silver R
Spring
Coil
Travel (mm)
100mm, 120mm, 130mm, 140mm, 150mm, 160mm
Upper tube type
35mm straight wall steel
Wheel size
27.5", 29"
Rear suspension
RockShox Deluxe Select 313 g
Body eyelet
No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
R
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Model
RS-DLX-SEL-B2
Name
Deluxe Select
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
313
Wheels
Rims
Stan's Flow D 32H
Tires
Maxxis Dissector 2.4" 3C/EXO/TR
Rear hub
Shimano FH-MT510-B, 12x148mm Boost, Micro Spline, Center Lock
Front hub
Shimano HB-MT400-B, 15x110mm Boost, Center Lock

Geometry

Size XS SM MD
a
Seat tube length
370,0
390,0
420,0
b
Seat tube angle
76,0º
76,0º
76,0º
c
Top tube length
526,0
558,0
590,0
d
Head tube length
100,0
110,0
120,0
e
Head tube angle
66,0º
66,0º
66,0º
f
Rake
42,0
42,0
42,0
g
Trail
114,0
114,0
114,0
h
Wheelbase
1105,0
1139,0
1173,0
i
Chainstay length
435,0
435,0
435,0
j
Bottom bracket drop
18,0
18,0
18,0
k
Stack height
572,0
581,0
591,0
l
Reach
384,0
414,0
444,0
m
Standover height
644,0
658,0
668,0
x
Bottom bracket height
342,0
342,0
342,0
y
Front center
671,0
705,0
739,0
