Norco Fluid FS 3 27.5 2018

MTB Trail
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
120mm
Rear travel
120mm

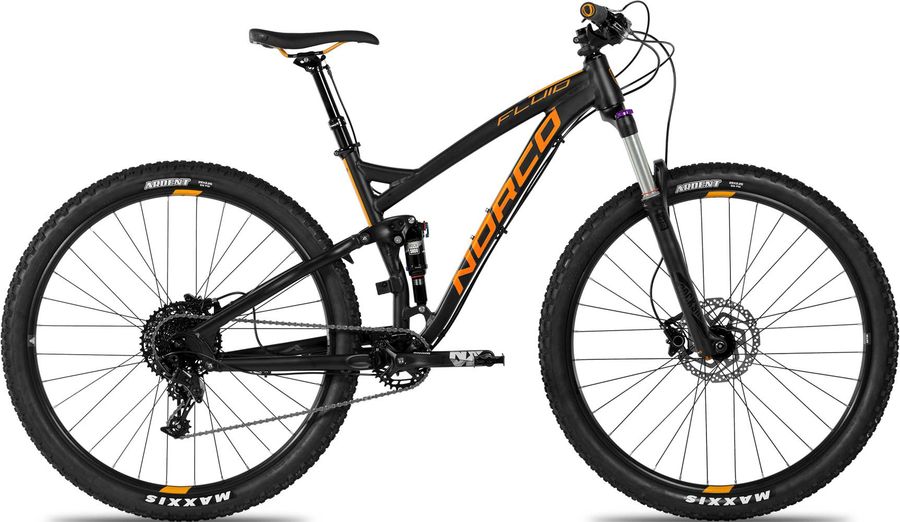

Norco Fluid FS 3 27.5 2018

About the Norco Fluid FS 3 27.5 2018

The Norco Fluid FS 3 27.5 2018 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 10 gears (1x10). Its features include boost 110 e hydraulic disc brakes.

Features

The Norco Fluid FS 3 27.5 2018 has 2 features listed below.
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Norco Gator grip
Pedals
Wellgo resin body / alloy black cage MTB pedal
Components
Steam
Alloy MTB stem with 4 bolt front clamp
Saddle
WTB Volt Sport trail saddle
Headset
FSA #57B tapered internal
Seatpost
Norco 6061 alloy double bolt 30.9 x 350mm
Handlebar
Norco 25mm rise 6061 DB alloy 760mm
Brake lever
Tektro HD-M285
Brakes
Tektro HD-M285
Drivetrain
Crankset
SR Suntour Zeron Boost 30T Cranks w/1X narrow/wide ring
Shifter
Shimano Deore SLM-6000 10spd
Bottom bracket
SR Suntour cartridge BB
Cassette
Sunrace 10-speed
Rear derailleur
Shimano Deore RD-M6000-GS GS 10s
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 10-speed
Lower pulley max
42T
Lower pulley min
42T
Model
RD-M6000-GS
P axle finish
Painted
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
Pulley cage
GS
Speeds
10
Upper pulley max
11T
Upper pulley min
11T
Total capacity
41T
Chain
KMC X10
Frameset
Frame
Fluid aluminum w/120 mm travel
Front suspension
RockShox Recon Silver RL Solo Air
Color
Diffusion Black, Gloss Black
Damper type
Motion Control
fork offset
37mm (27.5"), 42mm (27.5"), 42mm (29"), 46mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
62, 81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-RCNS-RL-D1
Name
Recon Silver RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 130mm, 140mm, 150mm
Upper tube type
32mm straight wall steel
Wheel size
27.5", 29"
Rear suspension
RockShox Monarch R 205 g
Body eyelet
Standard
Compression tune
H, L, L3, M
Eye to eye stroke
152x31, 165x38, 184x44, 190x51, 200x51, 200x57, 216x63
Model
RS-MNR-R-C3
Name
Monarch R
Rebound tune
H, L, M
Shaft eyelet
Standard
Weight based on
165x38, standard air can, standard eyelet, no hardware
Weight
205
Wheels
Rims
WTB I25 32H, 25mm inner, TRS tubeless
Tires
WTB Vigalante 27.5x2.3
Rear hub
Joy tech disc hub w/QR 10/11sp cassette
Front hub
Alloy disc w/15 mm with sealed bearing

Geometry

Size XS SM MD
a
Seat tube length
380,0
405,0
435,0
b
Seat tube angle
74,5º
74,5º
74,5º
c
Top tube length
547,0
569,0
591,0
d
Head tube length
100,0
107,0
115,0
e
Head tube angle
68,5º
68,5º
68,5º
f
Rake
42,0
41,0
-1887,0
g
Trail
95,0
96,0
2168,0
h
Wheelbase
1076,0
1098,0
1122,0
i
Chainstay length
422,0
422,0
422,0
j
Bottom bracket drop
18,0
18,0
18,0
k
Stack height
567,0
574,0
-
l
Reach
389,0
409,0
429,0
m
Standover height
746,0
732,0
764,0
x
Bottom bracket height
332,0
332,0
332,0
y
Front center
655,0
678,0
700,0
