Groupset
SRAM SX Eagle
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
130mm
Rear travel
120mm

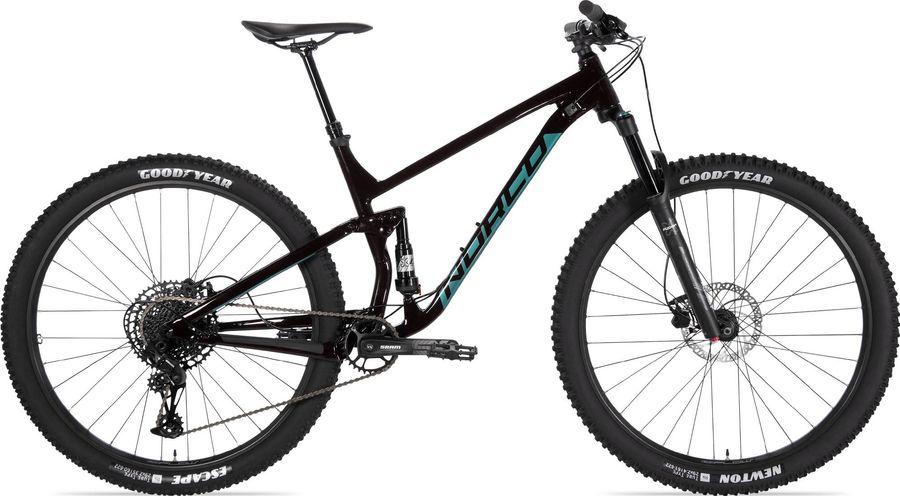

About the Norco Fluid FS 3 27.5 2021
The Norco Fluid FS 3 27.5 2021 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a SRAM SX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Grip
|
VP Lock-On
|
|---|---|
|
Pedals
|
VP Nylon Flat
|
|
Steam
|
6061 Alloy, 50mm Length, 35mm Clamp
|
|---|---|
|
Saddle
|
Norco XC
|
|
Headset
|
Sealed Bearing, Tapered
|
|
Seatpost
|
TranzX YSP18 Dropper, 31.6mm, 130mm (S, M), 150mm (L, XL)
|
|
Handlebar
|
TranzX 6061 Butted Alloy, 780mm, 20mm Rise
|
|
Discs
|
Tektro 180mm
|
|
Brake lever
|
Tektro HD-M275
|
|
Brakes
|
Tektro HD-M275
|
|
Crankset
|
SRAM SX Eagle, 30T, 170mm (XXS - S), 175mm (M - XL)
|
|---|---|
|
Shifter
|
SRAM SX Eagle
|
|
Bottom bracket
|
Truvativ Powerspline BB, BSA Threaded
|
|
Chain
|
SRAM SX Eagle
|
|
Cassette
|
SRAM PG-1210 Eagle
12s
|
|
|
|
|
Rear derailleur
|
SRAM SX Eagle
12s
|
|
|
|
|
Frame
|
6061 Alloy, 120mm Travel
|
|---|---|
|
Front suspension
|
X-Fusion RC32
|
|
Rear suspension
|
X-Fusion O2 Pro RL
|
|
Rims
|
Stan's Flow D 32H
|
|---|---|
|
Tires
|
Goodyear Newton 2.4" Folding
|
|
Rear hub
|
Alloy 12x148mm, HG, 6 Bolt
|
|
Front hub
|
Alloy 15x110mm Boost, 6 Bolt
|
Geometry
| Size | XS | SM | MD |
|---|---|---|---|
|
a
Seat tube length
|
370,0
|
390,0
|
420,0
|
|
b
Seat tube angle
|
76,0º
|
76,0º
|
76,0º
|
|
c
Top tube length
|
526,0
|
558,0
|
590,0
|
|
d
Head tube length
|
100,0
|
110,0
|
120,0
|
|
e
Head tube angle
|
66,0º
|
66,0º
|
66,0º
|
|
f
Rake
|
42,0
|
42,0
|
42,0
|
|
g
Trail
|
114,0
|
114,0
|
114,0
|
|
h
Wheelbase
|
1105,0
|
1139,0
|
1173,0
|
|
i
Chainstay length
|
435,0
|
435,0
|
435,0
|
|
j
Bottom bracket drop
|
18,0
|
18,0
|
18,0
|
|
k
Stack height
|
572,0
|
581,0
|
591,0
|
|
l
Reach
|
384,0
|
414,0
|
444,0
|
|
m
Standover height
|
644,0
|
658,0
|
668,0
|
|
x
Bottom bracket height
|
342,0
|
342,0
|
342,0
|
|
y
Front center
|
671,0
|
705,0
|
739,0
|
