Groupset
Shimano Deore
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
130mm
Rear travel
120mm

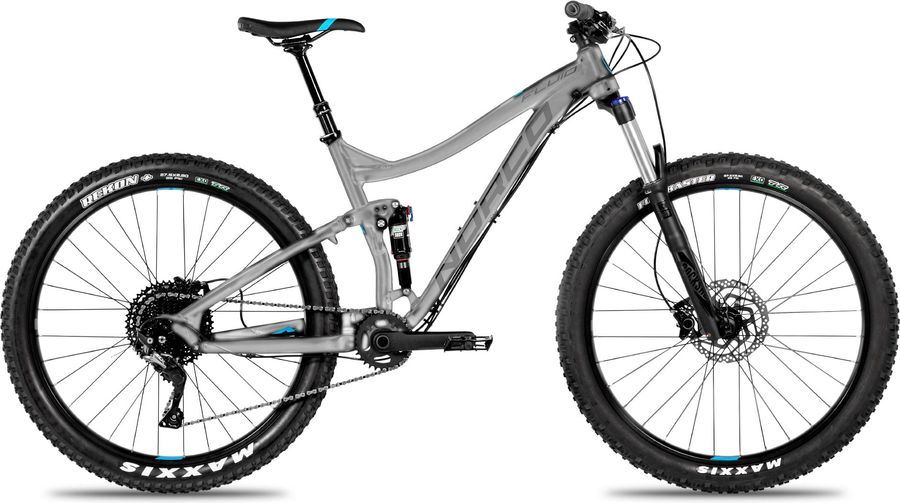

About the Norco Fluid FS2+ 2018
The Norco Fluid FS2+ 2018 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 10 gears (1x10). Its features include dropper seatpost, boost 110 , and hydraulic disc brakes.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Grip
|
Norco Gator grip
|
|---|---|
|
Pedals
|
VP Nylon Flat Pedal
|
|
Steam
|
Alloy MTB stem with 4 bolt front clamp
|
|---|---|
|
Saddle
|
WTB Volt
|
|
Headset
|
FSA #57B tapered internal
|
|
Seatpost
|
JD TransX YSP12 stealth dropper post w/remote lever, 80mm SM, 100mm Med, 125mm L/XL. 30.9mm
|
|
Handlebar
|
Norco 25mm rise 6061 DB alloy 740/760mm
|
|
Brake lever
|
Tektro HD-M285
|
|
Brakes
|
Tektro HD-M285
|
|
Crankset
|
SR Suntour Zeron Boost 30T Cranks w/1X narrow/wide ring
|
|---|---|
|
Shifter
|
Shimano Deore SLM-6000 10spd
|
|
Bottom bracket
|
SR Suntour cartridge BB
|
|
Cassette
|
Sunrace 10-speed
|
|
Rear derailleur
|
Shimano Deore RD-M6000-GS
GS
10s
|
|
|
|
|
Chain
|
KMC X10
|
|
Frame
|
Fluid aluminum 650B Plus 120mm travel
|
|---|---|
|
Rear suspension
|
RockShox Monarch R
205 g
|
|
|
|
|
Front suspension
|
SR Suntour XCM 34
|
|
Rims
|
Alex MD 35 650B+ 32H, 35mm TRS tubeless compatible
|
|---|---|
|
Tires
|
WTB Ranger 27.5"x 2.8"
|
|
Rear hub
|
Joytech disc hub w/Boost 141 w/QR
|
|
Front hub
|
Joytech aluminum w/disc mount, boost 110x15mm
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
400,0
|
445,0
|
490,0
|
535,0
|
|
b
Seat tube angle
|
73,5º
|
73,5º
|
73,5º
|
73,5º
|
|
c
Top tube length
|
575,0
|
605,0
|
635,0
|
665,0
|
|
d
Head tube length
|
100,0
|
100,0
|
110,0
|
120,0
|
|
e
Head tube angle
|
68,0º
|
68,0º
|
68,0º
|
68,0º
|
|
f
Rake
|
52,0
|
52,0
|
51,0
|
51,0
|
|
g
Trail
|
88,0
|
88,0
|
89,0
|
89,0
|
|
h
Wheelbase
|
1132,0
|
1162,0
|
1193,0
|
1224,0
|
|
i
Chainstay length
|
450,0
|
450,0
|
450,0
|
450,0
|
|
j
Bottom bracket drop
|
31,0
|
31,0
|
31,0
|
31,0
|
|
k
Stack height
|
606,0
|
606,0
|
615,0
|
625,0
|
|
l
Reach
|
395,0
|
425,0
|
453,0
|
480,0
|
|
m
Standover height
|
767,5
|
756,1
|
785,5
|
785,8
|
|
x
Bottom bracket height
|
333,0
|
333,0
|
333,0
|
333,0
|
|
y
Front center
|
684,0
|
714,0
|
744,0
|
775,0
|
