BikeWise

Norco Fluid HT 1 27.5 2018

MTB Trail
Groupset
Shimano SLX
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Front travel
120mm

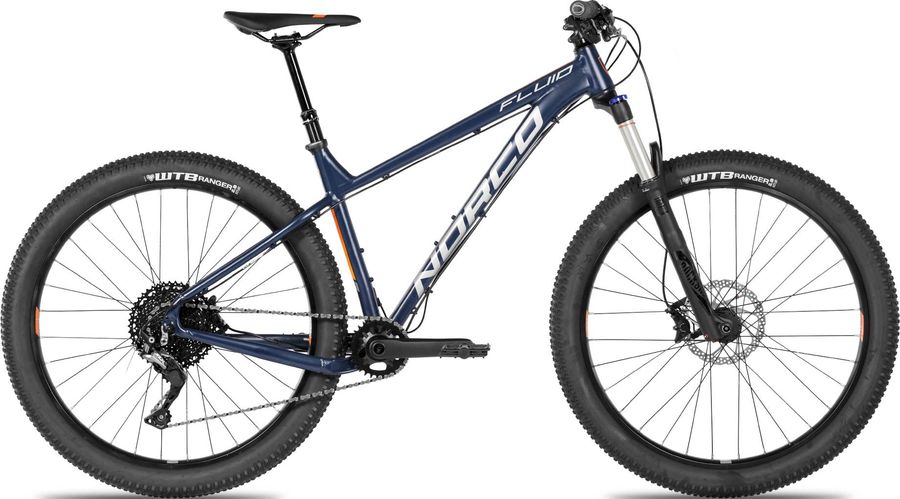

Norco Fluid HT 1 27.5 2018

About the Norco Fluid HT 1 27.5 2018

The Norco Fluid HT 1 27.5 2018 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a Shimano SLX drivetrain of 11 gears (1x11). Its features include dropper seatpost e boost 110 .

Features

The Norco Fluid HT 1 27.5 2018 has 2 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info

Specifications

Acessories
Grip
Norco Grip
Pedals
VP Nylon Flat Pedal
Components
Steam
Alloy 60mm x 31.8
Saddle
Norco XC Saddle
Headset
Angular Sealed Cartridge Bearings - Tapered
Seatpost
TranzX 125mm Dropper Post 31.6
Handlebar
X6 Alloy 750mm x 31.8
Brake lever
Shimano Deore BRM-6000
Brakes
Shimano Deore BR-M6000 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series Black
Secondary color
Series Silver *
color.3
Black (SHIMANO logo) ***
Hose joint
Straight
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M6000
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
G04S Metal **
Pad standard
G02S Resin,
G03S Resin
Pad standard
J02A Resin **
J03A Resin **
Pad mount
Split pin (stainless steel)
Piston
2
Piston material
Resin
Recommended brake lever
BL-M6100
BL-MT501
BL-T6000
Recommended disc brake rotor
SM-RT54****
SM-RT56****
SM-RT64
SM-RT66
Drivetrain
Crankset
Samox Alloy DM 30T Alloy C/R
Shifter
Shimano SLX 11spd I-Spec
Bottom bracket
Samox EB2401 External BB
Rear derailleur
Shimano SLX RD-M7000-11-SGS
Chain
KMC X11
Cassette
Sunrace 11-speed
Frameset
Frame
Fluid 6061 Alloy XC Frame w/DB TT & DT
Front suspension
RockShox Recon Gold RL Solo Air
Color
Diffusion Black, Gloss Black
fork offset
42mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
62, n/a
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-RCNG-RL-A5
Name
Recon Gold RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 130mm, 80mm
Upper tube type
32mm straight wall aluminum
Wheel size
27.5", 29"
Wheels
Rims
Alex MD35 650B Plus 32H
Tires
WTB Ranger 27.5"x 2.8"
Rear hub
Joytech Boost RR QR 32H
Front hub
Novatec Boost 110mm x 15mm

Geometry

Size MD LG XL
a
Seat tube length
440,0
470,0
500,0
b
Seat tube angle
72,7º
72,3º
71,9º
c
Top tube length
621,0
651,0
681,0
d
Head tube length
100,0
110,0
120,0
e
Head tube angle
67,5º
67,5º
67,5º
f
Rake
51,0
51,0
51,0
g
Trail
92,0
92,0
92,0
h
Wheelbase
1148,0
1174,0
1,2e3
i
Chainstay length
436,0
436,0
436,0
j
Bottom bracket drop
45,0
45,0
45,0
k
Stack height
617,0
626,0
636,0
l
Reach
431,0
453,0
475,0
m
Standover height
779,0
790,0
801,0
x
Bottom bracket height
316,0
316,0
316,0
y
Front center
716,0
742,0
768,0
