BikeWise

Norco Fluid HT 1 27.5 2019

MTB Trail
Groupset
SRAM NX Eagle
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Front travel
120mm

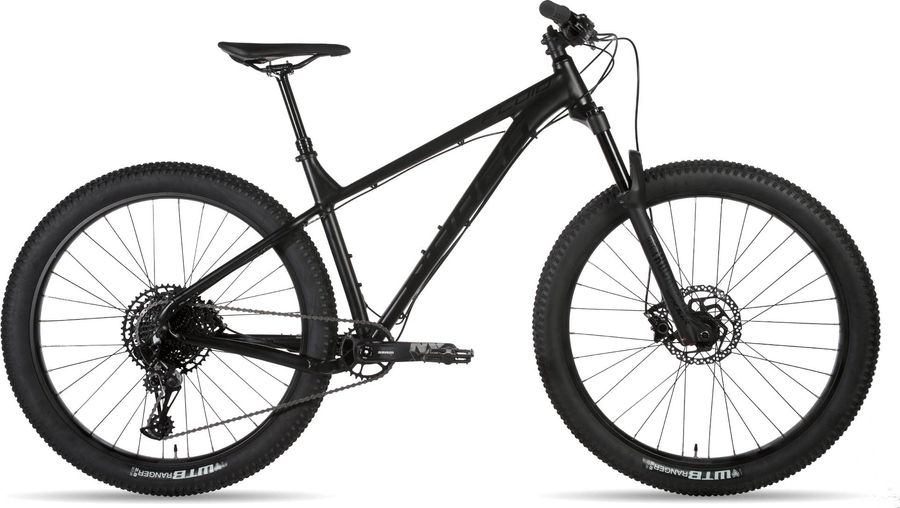

Norco Fluid HT 1 27.5 2019

About the Norco Fluid HT 1 27.5 2019

The Norco Fluid HT 1 27.5 2019 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a SRAM NX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and hydraulic disc brakes.

Features

The Norco Fluid HT 1 27.5 2019 has 3 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
VP, Lock-On
Pedals
VP Nylon Flat Pedals, 9/16"
Components
Steam
Alloy 60mm x 31.8
Saddle
Norco XC Saddle
Headset
Angular Sealed Cartridge Bearings - Tapered
Seatpost
TranzX YSP18JL Stealth Dropper, 120mm (XS/S) | 130mm (M/L/XL) Travel, 31.6mm, 1x Lever
Handlebar
X6 Alloy 750mm x 31.8
Brake lever
Shimano Altus BR-M201
Brakes
Shimano BR-MT200 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT200
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT201
BL-MT200
Recommended disc brake rotor
SM-RT10*
SM-RT26*
Drivetrain
Crankset
SRAM NX Eagle, 170mm (XS/S) | 175mm (M/L/XL), 30T
Shifter
Rear: SRAM NX Eagle, 12 Speed, Front: -
Bottom bracket
SRAM DUB BB, Threaded BSA 73mm
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Rear derailleur
SRAM NX Eagle 12s 339 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-NX-1-B1
Name
NX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Weight
339
Cassette
SRAM PG-1230 Eagle 12s 615 g
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1230-A1
Name
PG-1230 Eagle Cassette
Speed
12s
Technology cassete
PG
Weight
615
Frameset
Frame
Norco Fluid HT, Aluminum, 9x141mm QR Dropouts
Front suspension
RockShox Sektor RL DebonAir
Color
Diffusion Black, Gloss Black
Damper type
Motion Control
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-SKTR-RL-C1
Name
Sektor RL
Spring
DebonAir
Travel (mm)
100mm, 120mm, 130mm, 140mm, 150mm, 80mm
Upper tube type
32mm straight wall aluminum
Wheel size
27.5", 29"
Wheels
Rims
Alex MD-35, 32 Hole, 35mm Internal Width
Tires
WTB Ranger, 27.5x2.8”
Rear hub
Joytech D142TSE, 9x141mm QR
Front hub
Novatec Boost 110mm x 15mm

Geometry

Size MD LG XL
a
Seat tube length
440,0
470,0
500,0
b
Seat tube angle
72,7º
72,3º
71,9º
c
Top tube length
621,0
651,0
681,0
d
Head tube length
100,0
110,0
120,0
e
Head tube angle
67,5º
67,5º
67,5º
f
Rake
51,0
51,0
51,0
g
Trail
92,0
92,0
92,0
h
Wheelbase
1148,0
1174,0
1,2e3
i
Chainstay length
436,0
436,0
436,0
j
Bottom bracket drop
45,0
45,0
45,0
k
Stack height
617,0
626,0
636,0
l
Reach
431,0
453,0
475,0
m
Standover height
779,0
790,0
801,0
x
Bottom bracket height
316,0
316,0
316,0
y
Front center
716,0
742,0
768,0
