Norco Fluid HT 1 27.5 2020

MTB Trail
Groupset
SRAM NX Eagle
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Front travel
120mm
Norco Fluid HT 1 27.5 2020

About the Norco Fluid HT 1 27.5 2020

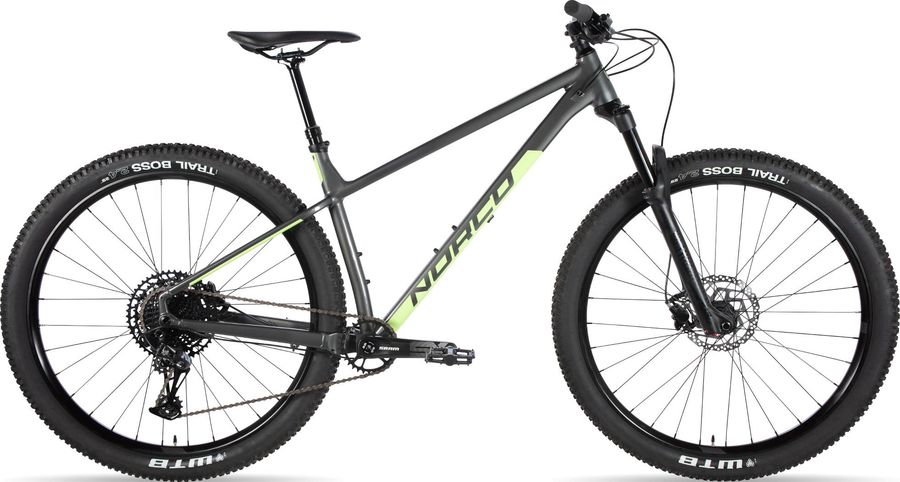

The Norco Fluid HT 1 27.5 2020 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a SRAM NX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Norco Fluid HT 1 27.5 2020 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
VP lock on
Pedals
VP Flat nylon
Components
Steam
Norco Alloy, 50mm, 31.8mm bore
Saddle
Norco XC
Headset
Sealed Cartridge Bearing
Seatpost
TranzX YSP18, 31.6mm, 130mm stealth dropper
Handlebar
X6 Alloy, 750mm, 31.8 bore
Brakes
Shimano BR-MT200 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT200
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT201
BL-MT200
Recommended disc brake rotor
SM-RT10*
SM-RT26*
Drivetrain
Crankset
SRAM SX Eagle DUB, 30T
Shifter
SRAM NX Eagle 12 speed
Bottom bracket
SRAM DUB threaded
Rear derailleur
SRAM NX Eagle 12s 339 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-NX-1-B1
Name
NX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Weight
339
Chain
SRAM SX Eagle
Cassette
SRAM PG-1230 Eagle 12s 615 g
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1230-A1
Name
PG-1230 Eagle Cassette
Speed
12s
Technology cassete
PG
Weight
615
Frameset
Frame
6061 Alloy Frame, butted TT & DT
Front suspension
RockShox Sektor RL DebonAir
Color
Diffusion Black, Gloss Black
Damper type
Motion Control
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-SKTR-RL-C1
Name
Sektor RL
Spring
DebonAir
Travel (mm)
100mm, 120mm, 130mm, 140mm, 150mm, 80mm
Upper tube type
32mm straight wall aluminum
Wheel size
27.5", 29"
Wheels
Rims
Alex DP30 TRS 29"/27.5"
Tires
Schwalbe Smart Sam 2.6"
Rear hub
Alloy 12x148mm Boost, 32H
Front hub
Alloy 15x110mm Boost

Geometry

Size XS SM MD
a
Seat tube length
370,0
390,0
420,0
b
Seat tube angle
74,5º
74,5º
74,5º
c
Top tube length
546,0
579,0
611,0
d
Head tube length
100,0
110,0
120,0
e
Head tube angle
66,0º
66,0º
66,0º
f
Rake
42,0
42,0
42,0
g
Trail
114,0
114,0
114,0
h
Wheelbase
1101,0
1135,0
1169,0
i
Chainstay length
434,0
434,0
434,0
j
Bottom bracket drop
40,0
40,0
40,0
k
Stack height
589,0
598,0
607,0
l
Reach
384,0
414,0
444,0
m
Standover height
602,0
621,0
651,0
x
Bottom bracket height
320,0
320,0
320,0
y
Front center
670,0
704,0
738,0
