Groupset
Shimano Deore
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Front travel
120mm

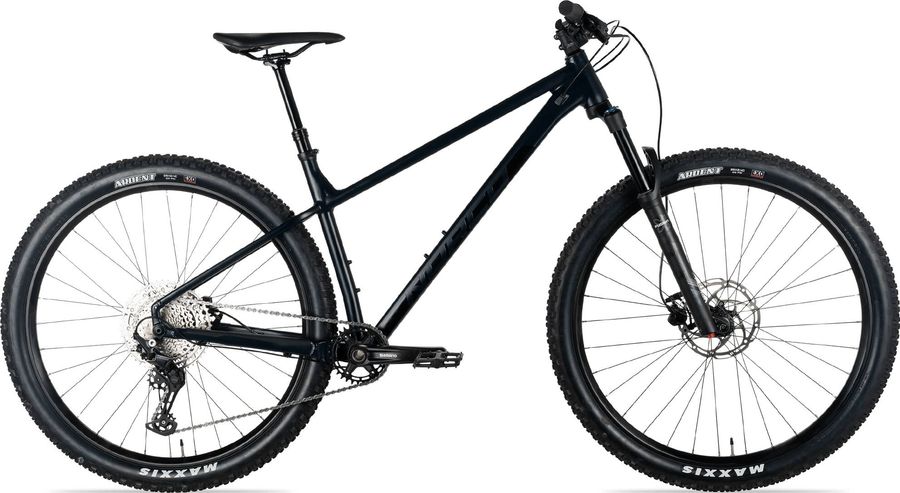

About the Norco Fluid HT 1 27.5 2021
The Norco Fluid HT 1 27.5 2021 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 12 gears (1x12). Its features include internal routing, dropper seatpost, and boost 110 .
Features
Internal routing
More info
Internal routing
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Grip
|
VP Lock-On
|
|---|---|
|
Pedals
|
VP Nylon Flat
|
|
Steam
|
Alloy 50mm Length, 31.8mm Clamp
|
|---|---|
|
Saddle
|
Norco XC
|
|
Headset
|
Sealed Bearing, Tapered
|
|
Seatpost
|
TranzX YSP18 Dropper, 31.6mm, 130mm
|
|
Handlebar
|
X6 Alloy 750mm, 15mm Rise
|
|
Discs
|
Tektro 180mm
|
|
Brake lever
|
Tektro HD-M275
|
|
Brakes
|
Tektro HD-M275
|
|
Crankset
|
Shimano Deore FC-MT510-1, 32T, 170mm (XS, S), 175mm (M, L, XL)
|
|---|---|
|
Shifter
|
Shimano Deore SL-M6100-R
|
|
Bottom bracket
|
Shimano Sealed Bearing, BSA Threaded
|
|
Chain
|
Shimano CN-M6100
252 g
|
|
|
|
|
Cassette
|
Shimano Deore CS-M6100-12
HYPERGLIDE+
|
|
|
|
|
Rear derailleur
|
Shimano Deore RD-M6100
SGS
12s
|
|
|
|
|
Frame
|
6061 Alloy, Butted TT, DT, Internal Routing
|
|---|---|
|
Front suspension
|
X-Fusion RC32
|
|
Rims
|
Alex DP30 TRS
|
|---|---|
|
Tires
|
Maxxis Ardent 2.4" EXO 60TPI
|
|
Rear hub
|
Shimano FH-MT410-B, 12x148mm Boost, Microspline, Center Lock
|
|
Front hub
|
Shimano HB-MT400-B, 15x110mm Boost, Center Lock
|
Geometry
| Size | XS | SM | MD |
|---|---|---|---|
|
a
Seat tube length
|
370,0
|
390,0
|
420,0
|
|
b
Seat tube angle
|
74,5º
|
74,5º
|
74,5º
|
|
c
Top tube length
|
546,0
|
579,0
|
611,0
|
|
d
Head tube length
|
100,0
|
110,0
|
120,0
|
|
e
Head tube angle
|
66,0º
|
66,0º
|
66,0º
|
|
f
Rake
|
42,0
|
42,0
|
42,0
|
|
g
Trail
|
114,0
|
114,0
|
114,0
|
|
h
Wheelbase
|
1101,0
|
1135,0
|
1169,0
|
|
i
Chainstay length
|
434,0
|
434,0
|
434,0
|
|
j
Bottom bracket drop
|
40,0
|
40,0
|
40,0
|
|
k
Stack height
|
589,0
|
598,0
|
607,0
|
|
l
Reach
|
384,0
|
414,0
|
444,0
|
|
m
Standover height
|
602,0
|
621,0
|
651,0
|
|
x
Bottom bracket height
|
320,0
|
320,0
|
320,0
|
|
y
Front center
|
670,0
|
704,0
|
738,0
|
