Norco Fluid HT 2 27.5 2018

MTB Trail
Groupset
SRAM NX
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Front travel
120mm

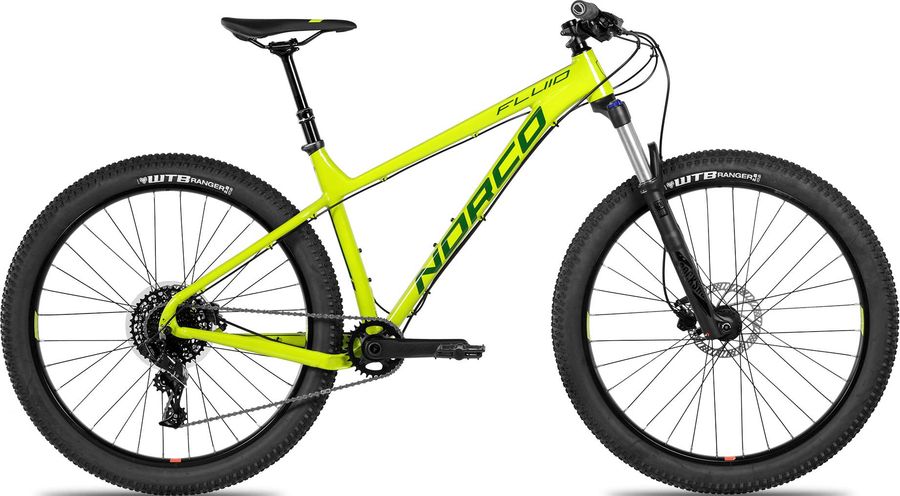

Norco Fluid HT 2 27.5 2018

About the Norco Fluid HT 2 27.5 2018

The Norco Fluid HT 2 27.5 2018 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a SRAM NX drivetrain of 11 gears (1x11). Its features include dropper seatpost, boost 110 , and hydraulic disc brakes.

Features

The Norco Fluid HT 2 27.5 2018 has 3 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Norco Grip
Pedals
VP Nylon Flat Pedal
Components
Steam
Alloy 60mm x 31.8
Saddle
Norco XC Saddle
Headset
Angular Sealed Cartridge Bearings - Tapered
Seatpost
TranzX 125mm Dropper Post 31.6
Handlebar
X6 Alloy 750mm x 31.8
Brake lever
Tektro HD-M285
Brakes
Tektro HD-M285
Drivetrain
Crankset
Samox Alloy DM 30T Alloy C/R
Shifter
SRAM NX 11spd
Bottom bracket
Samox EB2401 External BB
Rear derailleur
SRAM NX 11s 322 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
42
Model
RD-NX-1-A1
Name
NX 1x11 X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
11s
Weight
322
Cassette
SRAM PG-1130 11s
Cog finish cassete
Black, Silver
Cog sizes
11-26t:11,12,13,14,15,16,17,19,21,23,26
11-28t:11,12,13,14,15,16,17,19,22,25,28
11-32t:11,12,13,14,15,17,19,22,25,28,32
11-36t:11,12,13,15,17,19,22,25,28,32,36
11-42t: 11,13,15,17,19,22,25,28,32,36,42
Gearing
11-26t
11-28t
11-32t
11-36t
11-42t
Model
CS-PG-1130-A1
Name
PG-1130 Cassette
Speed
11s
Technology cassete
PG
Chain
SRAM PC-1110 259 g
Chain connector
PowerLock
Chain length links
114 links
Color inner link
Grey
Color outer link
Grey
Compat speed
11s
Inner link finish
Polished
Model
CN-1110-A1
Name
PC-1110 Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
259
Frameset
Frame
Fluid 6061 Alloy XC Frame w/DB TT & DT
Front suspension
RockShox Recon RL Solo Air
Color
Diffusion Black, Gloss Black, Gloss White
fork offset
42mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
62, 81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-RCN-RL-A1
Name
Recon RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 130mm, 140mm, 150mm, 80mm
Upper tube type
32mm straight wall steel
Wheel size
27.5", 29"
Wheels
Rims
Alex MD35 650B Plus 32H
Tires
WTB Ranger 27.5"x 2.8"
Rear hub
Joytech Boost RR QR 32H
Front hub
Novatec Boost 110mm x 15mm

Geometry

Size MD LG XL
a
Seat tube length
440,0
470,0
500,0
b
Seat tube angle
72,7º
72,3º
71,9º
c
Top tube length
621,0
651,0
681,0
d
Head tube length
100,0
110,0
120,0
e
Head tube angle
67,5º
67,5º
67,5º
f
Rake
51,0
51,0
51,0
g
Trail
92,0
92,0
92,0
h
Wheelbase
1148,0
1174,0
1,2e3
i
Chainstay length
436,0
436,0
436,0
j
Bottom bracket drop
45,0
45,0
45,0
k
Stack height
617,0
626,0
636,0
l
Reach
431,0
453,0
475,0
m
Standover height
779,0
790,0
801,0
x
Bottom bracket height
316,0
316,0
316,0
y
Front center
716,0
742,0
768,0
