Norco Fluid HT 2 27.5 2021

MTB Trail
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Front travel
120mm

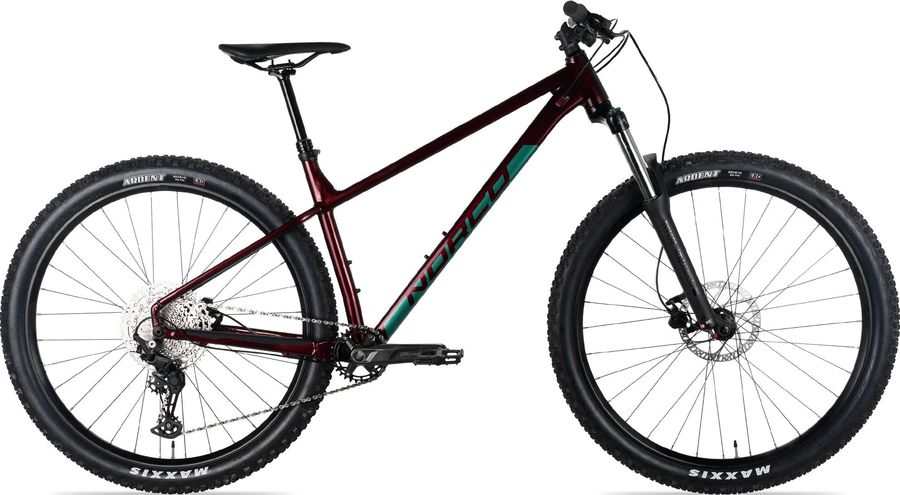

Norco Fluid HT 2 27.5 2021

About the Norco Fluid HT 2 27.5 2021

The Norco Fluid HT 2 27.5 2021 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 11 gears (1x11). Its features include internal routing, dropper seatpost, and boost 110 .

Features

The Norco Fluid HT 2 27.5 2021 has 5 features listed below.
cabeamento-interno
Internal routing More info
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
VP Lock-On
Pedals
VP Nylon Flat
Components
Steam
Alloy 50mm Length, 31.8mm Clamp
Saddle
Norco XC
Headset
Sealed Bearing, Tapered
Seatpost
TranzX YSP18 Dropper, 31.6mm, 130mm
Handlebar
X6 Alloy 750mm, 15mm Rise
Discs
Tektro 180mm
Brake lever
Tektro HD-M275
Brakes
Tektro HD-M275
Drivetrain
Crankset
Shimano Deore FC-M5100-1, 30T, 170mm (XS, S,), 175mm (M, L, XL)
Shifter
Shimano Deore SL-M5100
Bottom bracket
Shimano Sealed Bearing BSA Threaded
Rear derailleur
Shimano Deore RD-M5100-SGS SGS 11s
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X11 11-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M5100-SGS
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
Pulley cage
SGS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
40T
Cassette
Shimano Deore CS-M5100-11 HG
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
11-42T
11-51T
Compatible chain
HG 11-speed, LG
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M5100-11
Steel gear finish
Plated
Steel gear pieces
11
Type
HG
Chain
KMC X11
Frameset
Frame
6061 Alloy, Butted TT, DT, Internal Routing
Front suspension
SR Suntour XCM 32
Wheels
Rims
Alex DP30 TRS
Tires
Maxxis Ardent 2.4" EXO 60TPI
Rear hub
Alloy 12x148mm, HG, 6 Bolt
Front hub
Alloy 15x110mm Boost, 6 Bolt

Geometry

Size XS SM MD
a
Seat tube length
370,0
390,0
420,0
b
Seat tube angle
74,5º
74,5º
74,5º
c
Top tube length
546,0
579,0
611,0
d
Head tube length
100,0
110,0
120,0
e
Head tube angle
66,0º
66,0º
66,0º
f
Rake
42,0
42,0
42,0
g
Trail
114,0
114,0
114,0
h
Wheelbase
1101,0
1135,0
1169,0
i
Chainstay length
434,0
434,0
434,0
j
Bottom bracket drop
40,0
40,0
40,0
k
Stack height
589,0
598,0
607,0
l
Reach
384,0
414,0
444,0
m
Standover height
602,0
621,0
651,0
x
Bottom bracket height
320,0
320,0
320,0
y
Front center
670,0
704,0
738,0
