Norco Fluid HT 3 26 2019

MTB Trail
Groupset
SRAM NX
Frame material
Alloy
Wheel size
26"
Suspension type
Hardtail
Front travel
120mm

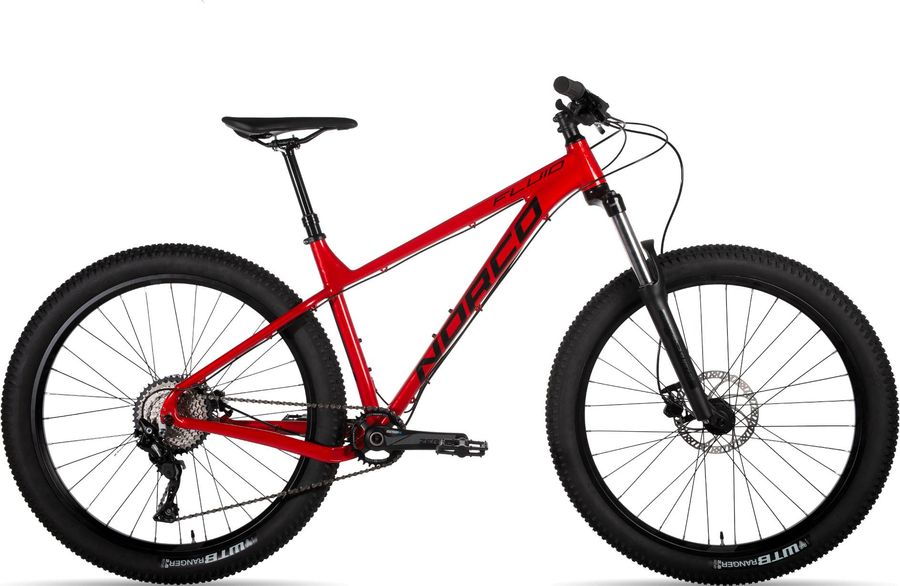

Norco Fluid HT 3 26 2019

About the Norco Fluid HT 3 26 2019

The Norco Fluid HT 3 26 2019 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a SRAM NX drivetrain of 11 gears (1x11). Its features include dropper seatpost, boost 110 , and hydraulic disc brakes.

Features

The Norco Fluid HT 3 26 2019 has 3 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
VP, Lock-On
Pedals
VP Nylon Flat Pedals, 9/16"
Components
Steam
Alloy 60mm x 31.8
Saddle
Norco XC Saddle
Headset
Angular Sealed Cartridge Bearings - Tapered
Seatpost
TranzX YSP18JL Stealth Dropper, 120mm Travel, 31.6mm, 1x Lever
Handlebar
X6 Alloy 750mm x 31.8
Brake lever
Tektro HD-M275
Brakes
Tektro HD-M275
Drivetrain
Crankset
SR Suntour Zeron Boost, 170mm (XS/S) | 175mm (M/L/XL), 30T
Shifter
Rear: SRAM NX, 11 Speed, Front: -
Bottom bracket
SR Suntour BB24, Threaded BSA 73mm
Rear derailleur
SRAM NX 11s 322 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
42
Model
RD-NX-1-A1
Name
NX 1x11 X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
11s
Weight
322
Cassette
SRAM PG-1130 11s
Cog finish cassete
Black, Silver
Cog sizes
11-26t:11,12,13,14,15,16,17,19,21,23,26
11-28t:11,12,13,14,15,16,17,19,22,25,28
11-32t:11,12,13,14,15,17,19,22,25,28,32
11-36t:11,12,13,15,17,19,22,25,28,32,36
11-42t: 11,13,15,17,19,22,25,28,32,36,42
Gearing
11-26t
11-28t
11-32t
11-36t
11-42t
Model
CS-PG-1130-A1
Name
PG-1130 Cassette
Speed
11s
Technology cassete
PG
Chain
SRAM PC-1110 259 g
Chain connector
PowerLock
Chain length links
114 links
Color inner link
Grey
Color outer link
Grey
Compat speed
11s
Inner link finish
Polished
Model
CN-1110-A1
Name
PC-1110 Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
259
Frameset
Frame
Norco Fluid HT, Aluminum, 9x141mm QR Dropouts
Front suspension
SR Suntour XCM 32
Wheels
Rims
Alloy XD26, 32 Hole, 30mm Internal Width
Tires
WTB Ranger, 27.5x2.8”
Rear hub
Joytech D142TSE, 9x141mm QR
Front hub
Novatec Boost 110mm x 15mm

Geometry

Size XS SM
a
Seat tube length
380,0
410,0
b
Seat tube angle
73,5º
73,1º
c
Top tube length
552,0
582,0
d
Head tube length
110,0
110,0
e
Head tube angle
67,5º
67,5º
f
Rake
42,0
43,0
g
Trail
97,0
96,0
h
Wheelbase
1069,0
1095,0
i
Chainstay length
417,0
417,0
j
Bottom bracket drop
41,0
41,0
k
Stack height
595,0
595,0
l
Reach
375,0
400,0
m
Standover height
715,0
714,0
x
Bottom bracket height
311,0
311,0
y
Front center
655,0
681,0
