Groupset
Shimano Deore
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Front travel
120mm

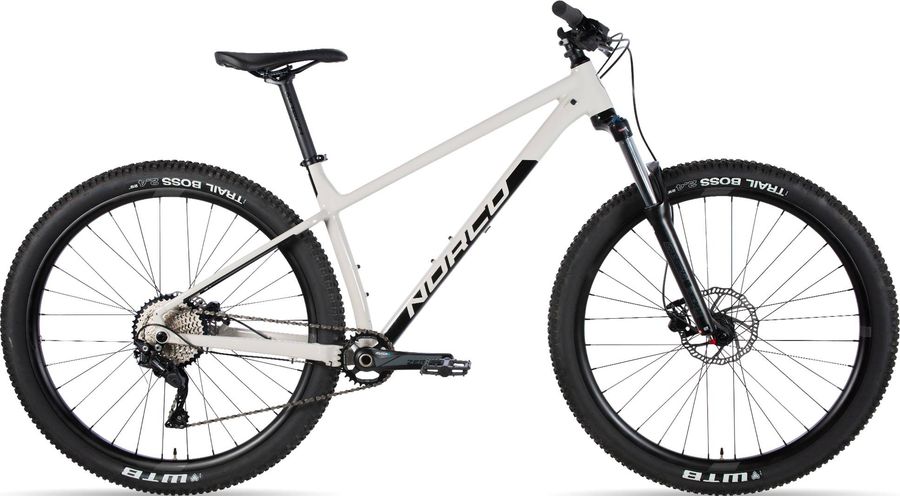

About the Norco Fluid HT 3 29 2020
The Norco Fluid HT 3 29 2020 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 10 gears (1x10). Its features include boost 110 , boost 148, and hydraulic disc brakes.
Features
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Grip
|
VP lock on
|
|---|---|
|
Pedals
|
VP Flat nylon
|
|
Steam
|
Norco Alloy, 50mm, 31.8mm bore
|
|---|---|
|
Saddle
|
Norco XC
|
|
Headset
|
Sealed Cartridge Bearing
|
|
Seatpost
|
Norco Alloy 31.6mm
|
|
Handlebar
|
X6 Alloy, 750mm, 31.8 bore
|
|
Brakes
|
Tektro HD-M275
|
|
Crankset
|
SR-Suntour Zeron, 30T
|
|---|---|
|
Shifter
|
Shimano Deore SL-M6000, 10 speed
|
|
Bottom bracket
|
SR Suntour BB24
|
|
Rear derailleur
|
Shimano Deore RD-M6000-GS
GS
10s
|
|
|
|
|
Chain
|
KMC X10
|
|
Cassette
|
Shimano Deore CS-HG500-10
|
|
Frame
|
6061 Alloy Frame, butted TT & DT
|
|---|---|
|
Front suspension
|
SR Suntour XCM 32
|
|
Rims
|
Alex DP30 TRS 29"/27.5"
|
|---|---|
|
Tires
|
Schwalbe Smart Sam 2.6"
|
|
Rear hub
|
Alloy 12x148mm Boost, 32H
|
|
Front hub
|
Alloy 15x110mm Boost
|
Geometry
| Size | MD | LG | XL |
|---|---|---|---|
|
a
Seat tube length
|
420,0
|
450,0
|
490,0
|
|
b
Seat tube angle
|
74,5º
|
74,5º
|
74,5º
|
|
c
Top tube length
|
615,0
|
647,0
|
680,0
|
|
d
Head tube length
|
100,0
|
110,0
|
120,0
|
|
e
Head tube angle
|
66,5º
|
66,5º
|
66,5º
|
|
f
Rake
|
51,0
|
51,0
|
51,0
|
|
g
Trail
|
109,0
|
109,0
|
109,0
|
|
h
Wheelbase
|
1169,0
|
1203,0
|
1237,0
|
|
i
Chainstay length
|
433,0
|
433,0
|
433,0
|
|
j
Bottom bracket drop
|
58,0
|
58,0
|
58,0
|
|
k
Stack height
|
622,0
|
631,0
|
640,0
|
|
l
Reach
|
443,0
|
473,0
|
503,0
|
|
m
Standover height
|
664,0
|
680,0
|
704,0
|
|
x
Bottom bracket height
|
320,0
|
320,0
|
320,0
|
|
y
Front center
|
742,0
|
776,0
|
810,0
|
