Norco Fluid HT 3 Womens 27.5 2018

Women's Bike
MTB Trail
Groupset
SRAM NX
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Front travel
120mm

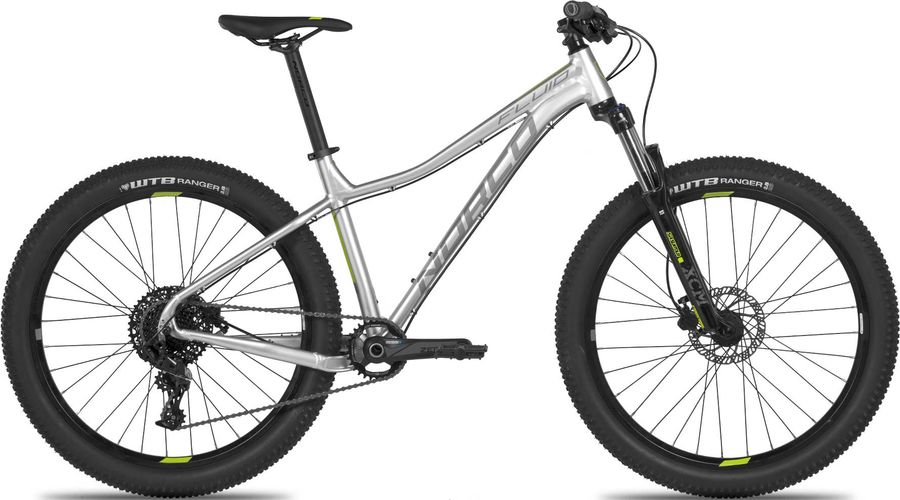

Norco Fluid HT 3 Womens 27.5 2018

About the Norco Fluid HT 3 Womens 27.5 2018

The Norco Fluid HT 3 Womens 27.5 2018 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a SRAM NX drivetrain of 11 gears (1x11). Its features include boost 110 e hydraulic disc brakes.

Features

The Norco Fluid HT 3 Womens 27.5 2018 has 2 features listed below.
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Norco Grip
Pedals
VP Nylon Flat Pedal
Components
Steam
Alloy 60mm x 31.8
Saddle
Norco XC Saddle
Headset
Angular Sealed Cartridge Bearings - Tapered
Seatpost
Norco Alloy 31.6
Handlebar
X6 Alloy 750mm x 31.8
Brake lever
Tektro HD-M285
Brakes
Tektro HD-M285
Drivetrain
Crankset
SR Suntour Zeron Boost 30T
Shifter
SRAM NX 11spd
Bottom bracket
SR Suntour BB24
Rear derailleur
SRAM NX 11s 322 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
42
Model
RD-NX-1-A1
Name
NX 1x11 X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
11s
Weight
322
Cassette
SRAM PG-1130 11s
Cog finish cassete
Black, Silver
Cog sizes
11-26t:11,12,13,14,15,16,17,19,21,23,26
11-28t:11,12,13,14,15,16,17,19,22,25,28
11-32t:11,12,13,14,15,17,19,22,25,28,32
11-36t:11,12,13,15,17,19,22,25,28,32,36
11-42t: 11,13,15,17,19,22,25,28,32,36,42
Gearing
11-26t
11-28t
11-32t
11-36t
11-42t
Model
CS-PG-1130-A1
Name
PG-1130 Cassette
Speed
11s
Technology cassete
PG
Chain
SRAM PC-1110 259 g
Chain connector
PowerLock
Chain length links
114 links
Color inner link
Grey
Color outer link
Grey
Compat speed
11s
Inner link finish
Polished
Model
CN-1110-A1
Name
PC-1110 Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
259
Frameset
Frame
Fluid 6061 Alloy XC Frame w/DB TT & DT
Front suspension
SR Suntour XCM
Wheels
Rims
Alloy XD26 30mm 650B Plus 32H
Tires
WTB Ranger 27.5"x 2.8"
Rear hub
Joytech Boost RR QR 32H
Front hub
Novatec Boost 110mm x 15mm

Geometry

Size MD
a
Seat tube length
440,0
b
Seat tube angle
72,7º
c
Top tube length
621,0
d
Head tube length
100,0
e
Head tube angle
67,5º
f
Rake
51,0
g
Trail
92,0
h
Wheelbase
1148,0
i
Chainstay length
436,0
j
Bottom bracket drop
45,0
k
Stack height
617,0
l
Reach
431,0
m
Standover height
779,0
x
Bottom bracket height
316,0
y
Front center
716,0
