Norco Fluid HT 4 27.5 2019

MTB Trail
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Front travel
120mm

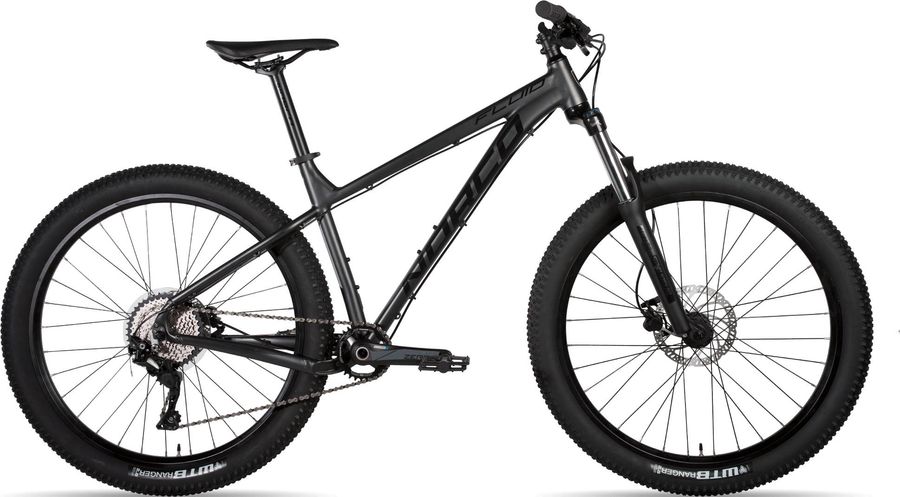

Norco Fluid HT 4 27.5 2019

About the Norco Fluid HT 4 27.5 2019

The Norco Fluid HT 4 27.5 2019 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 10 gears (1x10). Its features include boost 110 e hydraulic disc brakes.

Features

The Norco Fluid HT 4 27.5 2019 has 2 features listed below.
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
VP, Lock-On
Pedals
VP Nylon Flat Pedals, 9/16"
Components
Steam
Alloy 60mm x 31.8
Saddle
Norco XC Saddle
Headset
SR Suntour XCM32, 120mm, Boost 15x110mm, LOR/DS
Seatpost
Norco Alloy, 31.6mm
Handlebar
X6 Alloy 750mm x 31.8
Brake lever
Tektro HD-M275
Brakes
Tektro HD-M275
Drivetrain
Crankset
SR Suntour Zeron Boost, 170mm (XS/S) | 175mm (M/L/XL), 30T
Shifter
Rear: Shimano Deore SL-M6000, 10 Speed, Front: -
Bottom bracket
SR Suntour BB24, Threaded BSA 73mm
Rear derailleur
Shimano Deore RD-M6000-GS GS 10s
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 10-speed
Lower pulley max
42T
Lower pulley min
42T
Model
RD-M6000-GS
P axle finish
Painted
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
Pulley cage
GS
Speeds
10
Upper pulley max
11T
Upper pulley min
11T
Total capacity
41T
Chain
KMC X10
Cassette
Shimano Deore CS-HG500-10
Frameset
Frame
Norco Fluid HT, Aluminum, 9x141mm QR Dropouts
Front suspension
SR Suntour XCM 32
Wheels
Rims
Alloy XD26, 32 Hole, 30mm Internal Width
Tires
WTB Ranger, 27.5x2.8”
Rear hub
Joytech D142TSE, 9x141mm QR
Front hub
Novatec Boost 110mm x 15mm

Geometry

Size MD LG XL
a
Seat tube length
440,0
470,0
500,0
b
Seat tube angle
72,7º
72,3º
71,9º
c
Top tube length
621,0
651,0
681,0
d
Head tube length
100,0
110,0
120,0
e
Head tube angle
67,5º
67,5º
67,5º
f
Rake
51,0
51,0
51,0
g
Trail
92,0
92,0
92,0
h
Wheelbase
1148,0
1174,0
1,2e3
i
Chainstay length
436,0
436,0
436,0
j
Bottom bracket drop
45,0
45,0
45,0
k
Stack height
617,0
626,0
636,0
l
Reach
431,0
453,0
475,0
m
Standover height
779,0
790,0
801,0
x
Bottom bracket height
316,0
316,0
316,0
y
Front center
716,0
742,0
768,0
