Norco Fluid VLT 1 2020

E-Bike
MTB Trail
Groupset
SRAM NX Eagle
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Front travel
120mm

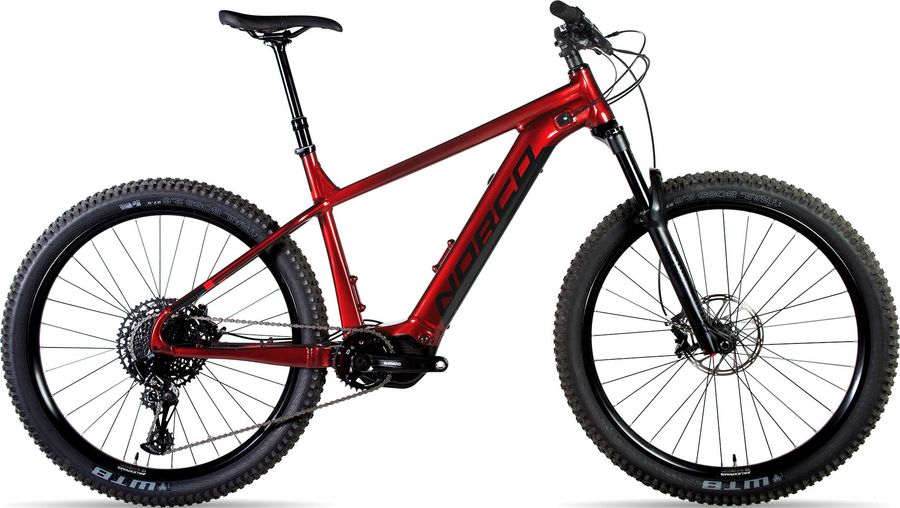

Norco Fluid VLT 1 2020

About the Norco Fluid VLT 1 2020

The Norco Fluid VLT 1 2020 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a SRAM NX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Norco Fluid VLT 1 2020 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
VP, Lock-On
Pedals
VP Nylon Flat Pedals, 9/16"
Components
Steam
6061 Aluminum, 50mm Length, 31.8mm Clamp Diameter
Saddle
WTB Volt Sport
Battery
In-Tube Battery, 630Wh Capacity
Headset
ACROS AZ-44BL Block Lock Upper, AZ-56 Lower, Zero Stack Internal
Seatpost
TranzX YSP-23JL Stealth Dropper, 100mm (S) | 125mm (M) | 130mm (L/XL) Travel, 31.6mm, 1x Lever
Handlebar
Norco 6061 Aluminum, 800mm Wide, 20mm Rise, 35mm Diameter
Brake lever
Shimano Deore BL-M6000
Brakes
SRAM Guide RE Hydraulic 415 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-RE-A1
Name
Guide RE
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor (TARGET)
Weight
415
Drivetrain
Crankset
Shimano FC-E8000, 165mm
Motor
Shimano STEPS E8000
Shifter
SRAM NX Eagle, 12 Speed
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Rear derailleur
SRAM NX Eagle 12s 339 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-NX-1-B1
Name
NX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Weight
339
Cassette
SRAM PG-1230 Eagle 12s 615 g
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1230-A1
Name
PG-1230 Eagle Cassette
Speed
12s
Technology cassete
PG
Weight
615
Frameset
Frame
Norco Fluid VLT, Aluminum, Boost 12x148mm Dropouts, Shimano Motor Mount
Front suspension
RockShox Sektor RL DebonAir
Color
Diffusion Black, Gloss Black
Damper type
Motion Control
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-SKTR-RL-C1
Name
Sektor RL
Spring
DebonAir
Travel (mm)
100mm, 120mm, 130mm, 140mm, 150mm, 80mm
Upper tube type
32mm straight wall aluminum
Wheel size
27.5", 29"
Wheels
Rims
Alex EM30 650B Plus, 32 Hole, 30mm Internal Width, E-Bike Rated
Tires
WTB Trail Boss, 27.5x2.6", Comp
Rear hub
Shimano Deore FH-M6010-B, Boost 12x148mm, CenterLock
Front hub
Shimano Deore HB-M6010-B, Boost 15x110mm, CenterLock

Geometry

Size SM MD LG XL
a
Seat tube length
405,0
435,0
470,0
510,0
b
Seat tube angle
75,0º
75,0º
75,0º
75,0º
c
Top tube length
572,0
604,0
637,0
669,0
d
Head tube length
100,0
110,0
120,0
130,0
e
Head tube angle
67,0º
67,0º
67,0º
67,0º
f
Rake
46,0
46,0
46,0
46,0
g
Trail
101,0
101,0
101,0
101,0
h
Wheelbase
1132,0
1166,0
1,2e3
1234,0
i
Chainstay length
440,0
440,0
440,0
440,0
j
Bottom bracket drop
35,0
35,0
35,0
35,0
k
Stack height
590,0
599,0
608,0
617,0
l
Reach
415,0
445,0
475,0
505,0
m
Standover height
760,0
766,0
772,0
778,0
x
Bottom bracket height
325,0
325,0
325,0
325,0
y
Front center
694,0
728,0
762,0
796,0
