Norco Ithaqua 1 2018

MTB Fatbike
Groupset
SRAM GX Eagle
Frame material
Carbon
Wheel size
26"
Suspension type
Rigid

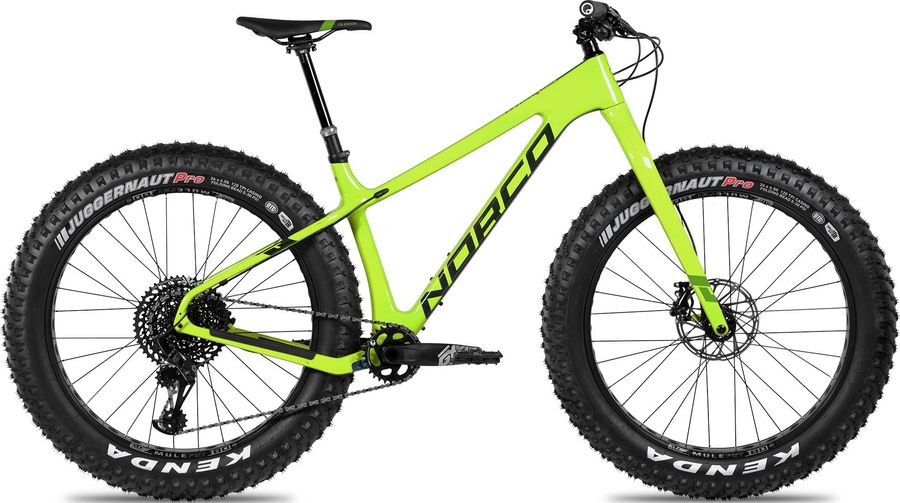

Norco Ithaqua 1 2018

About the Norco Ithaqua 1 2018

The Norco Ithaqua 1 2018 is a Rigid Fatbike Mountain Bike with a carbon frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost e hydraulic disc brakes.

Features

The Norco Ithaqua 1 2018 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Ergon GA30 Lock On Grip
Pedals
VP Nylon Flat Pedal
Components
Steam
Race Face Turbine 35mm/60mm
Saddle
SDG Duster RL
Headset
Angular Sealed Cartridge Bearings - Tapered
Seatpost
Crank Bros. Highline 31.6 160mm/125mm Dropper Post
Handlebar
Race FaceTurbine 35 780mm/20mm Rise
Brake lever
SRAM Level TL
Brakes
SRAM Level TL Hydraulic 370 g
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Flat Mount 20mm offset, Flat Mount no offset, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Diffusion Black Anodized, Gloss Black
Model
DB-LVL-TL-A1
Name
Level TL
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor (TARGET)
Weight
370
Drivetrain
Crankset
SRAM GX Eagle 30T Cranks
Shifter
SRAM GX Eagle 12spd
Bottom bracket
SRAM PF92 Fat Bike BB
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Front suspension
Norco Carbon 150x15 Fat Fork
Frame
Ithaqua Carbon Fat Frame 197x12
Wheels
Rims
Sun Mulefut 80SL 26" 32H
Tires
Kenda Juggernaut Pro 26 x 4.5 Tubeless
Rear hub
Novatec D202SB-S4S 197x12
Front hub
Novatec D201SB 150x15

Geometry

Size SM MD LG XL
a
Seat tube length
380,0
430,0
480,0
530,0
b
Seat tube angle
73,3º
72,9º
72,5º
72,1º
c
Top tube length
587,0
612,0
637,0
662,0
d
Head tube length
100,0
110,0
120,0
130,0
e
Head tube angle
69,0º
69,0º
69,0º
69,0º
f
Rake
51,0
50,0
51,0
50,0
g
Trail
77,0
78,0
77,0
78,0
h
Wheelbase
1106,0
1129,0
1153,0
1176,0
i
Chainstay length
437,0
440,0
442,0
445,0
j
Bottom bracket drop
60,0
60,0
60,0
60,0
k
Stack height
610,0
619,0
629,0
638,0
l
Reach
403,0
421,0
438,0
455,0
m
Standover height
724,0
733,0
742,0
747,0
x
Bottom bracket height
323,0
323,0
323,0
323,0
y
Front center
676,0
697,0
717,0
738,0
